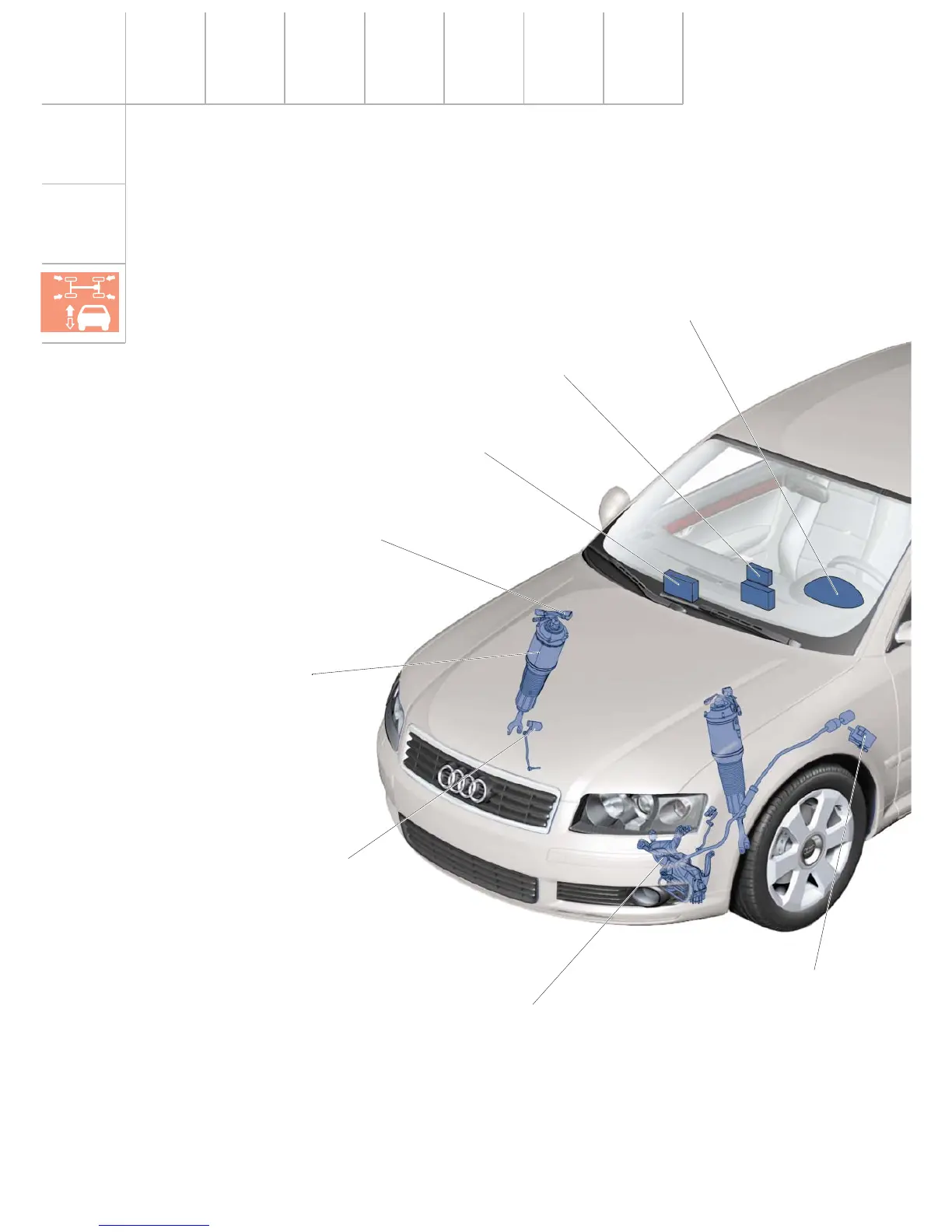

10
Air supp
ly unit
Solenoid valve block
with pressure sender
Pneumatic struts, F
A
Adaptive air suspension
control unit
Ve
h
i
c
l
e
l
ev
e
l
sender
, FA
Dash panel insert
Front operator/display
unit
(MMI)
Body acceleration
sender
System components
V
ehicle overview
9
11
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
4
Basics
4
New Technology
4
Operation and Display
6
Vehicle Levels
6
Operation and Display System
9
System Components
10
Vehicle Overview
10
Control Unit J197
12
Suspension/Shock Absorber Strut
13
Shock Absorber
14
Air Supply Unit
15
Solenoid Valve Block
16
Accumulator
16
Pneumatic Diagram
18
Pressure Build-Up
19
Pressure Reduction
19
Senders (Sensors)
20
System Functions
24
Control Concept for Standard Running Gear
26
Control Concept for Sporty Running Gear
28
Control Concept for Special Operating Conditions
29
Interfaces
34
System Overview of Components with Bus Link (CAN, MOST)
34
System Overview of Components Without Bus Link
35
CAN Information Exchange
36
Function Diagram
38
Other Interfaces
40
Service
42
Control Unit Code
42
System Initialisation
42
Final Control Diagnosis
43
Measured Value Blocks
43
