Oil pump chain sprocket, chain tensioner and chain, removing.

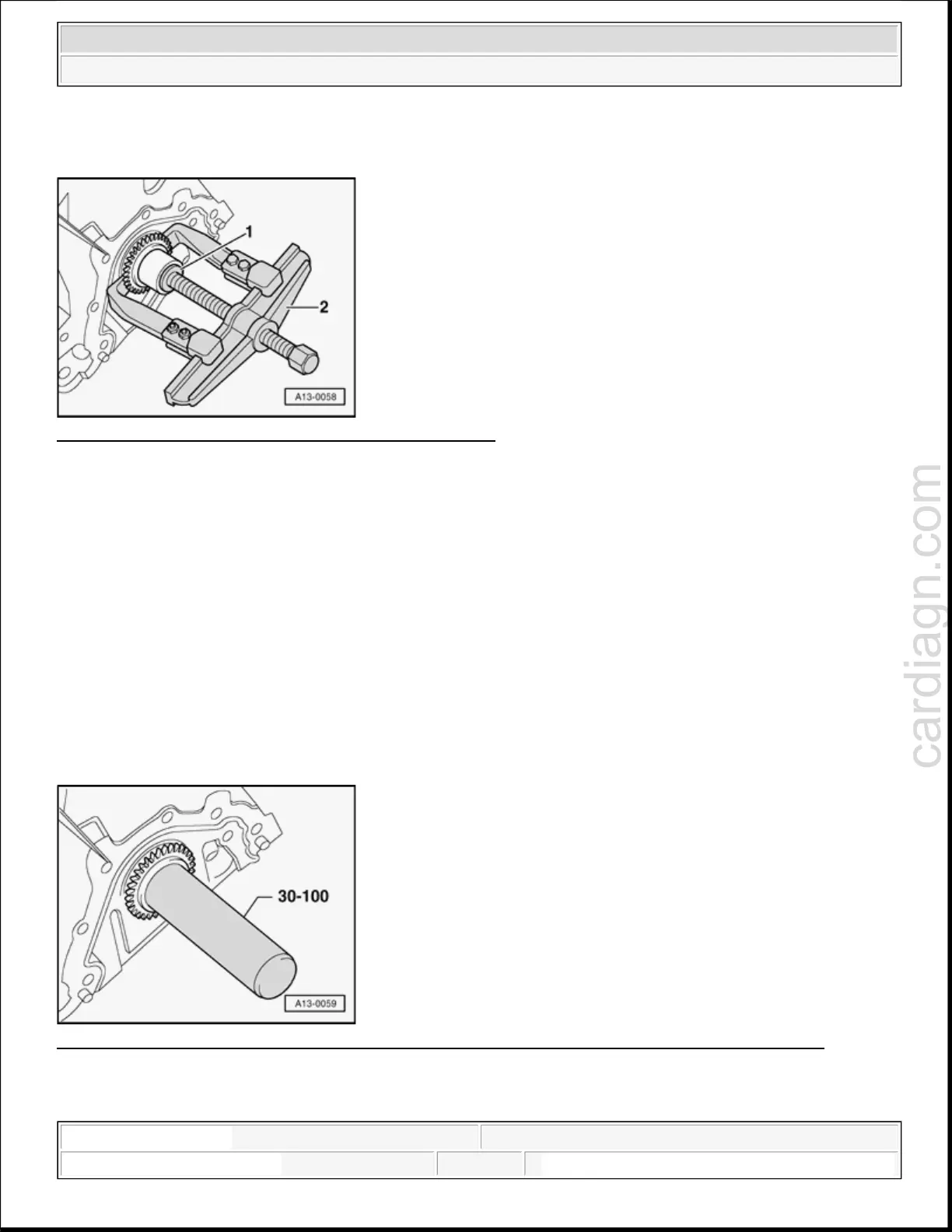

Fig. 135: Pulling Off Chain Sprocket From Crankshaft
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Pull chain sprocket off crankshaft with puller - 2 - , use suitable washer - 1 - to protect end of crankshaft.
Installing
Install in reverse order, paying attention to the following:
Heat chain sprocket in oven for approx. 15 minutes to 220 °C.
Fig. 136: Installing Chain Sprocket Onto Crankshaft Up To Limit Stop Using Press Tube 30-100
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Install chain sprocket on end of crankshaft using pliers and press onto crankshaft until fully seated using
CAUTION: Wear protective gloves.
NOTE:
Installed position: Large shoulder of chain sprocket must point to engine.
