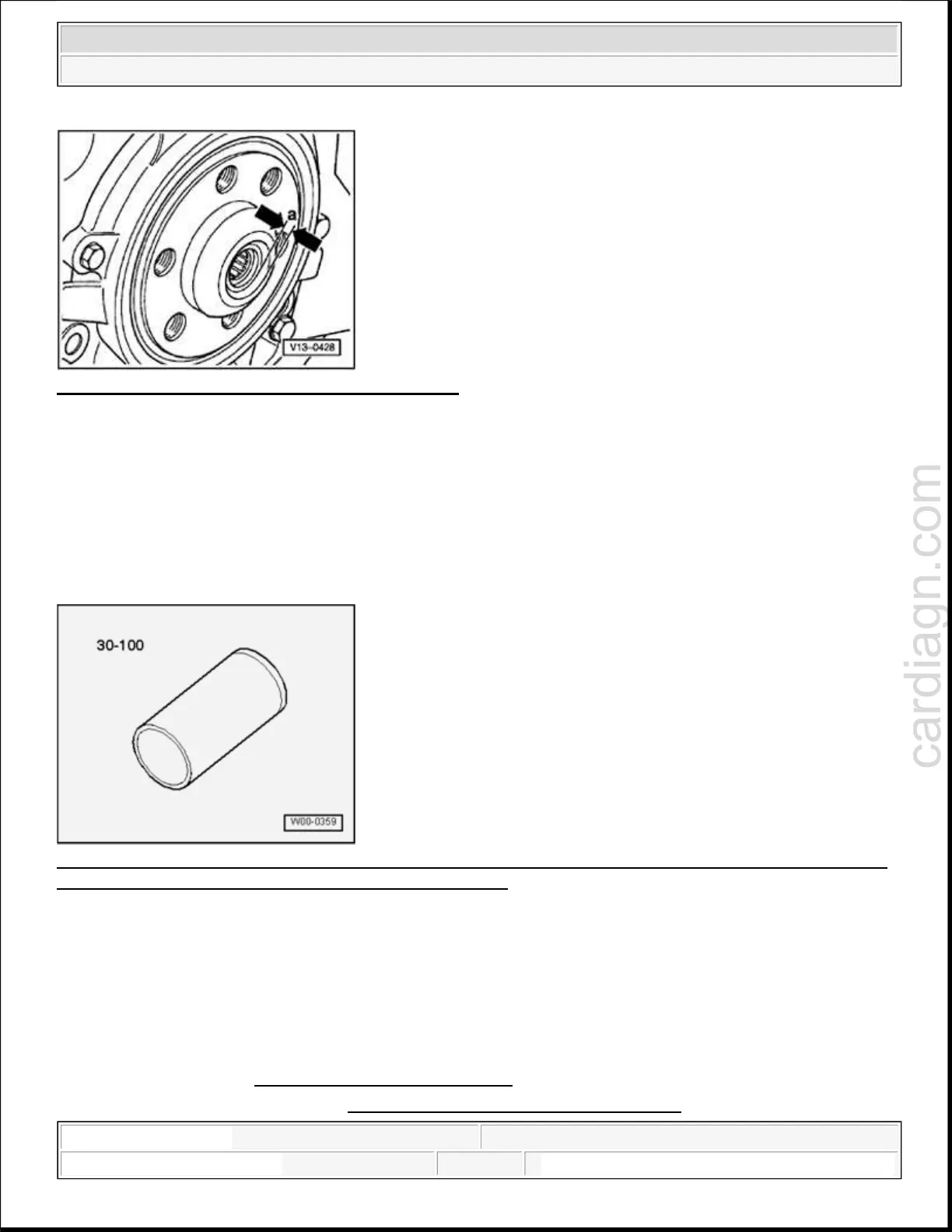

Fig. 133: Identifying Installation Depth Dimension
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Installation depth for pilot needle bearing
 Distance a = 1.5 mm
Chain sprocket, removing and installing
Special tools, testers and auxiliary items required
Fig. 134: Press Tube 30
-100Identifying Special Tools - Oil Pump/Front Sealing Flange, Drive Chain And
Chain Sprocket For Oil Pump, Removing And Installing
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Drift sleeve 30-100
 Two-arm puller, commercial type
 Protective gloves
Removing
 Remove oil pan --> Oil pan, removing and installing.
 Remove front sealin
g
flan
g
e --> Crankshaft oil seal - pulley end, replacing.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
