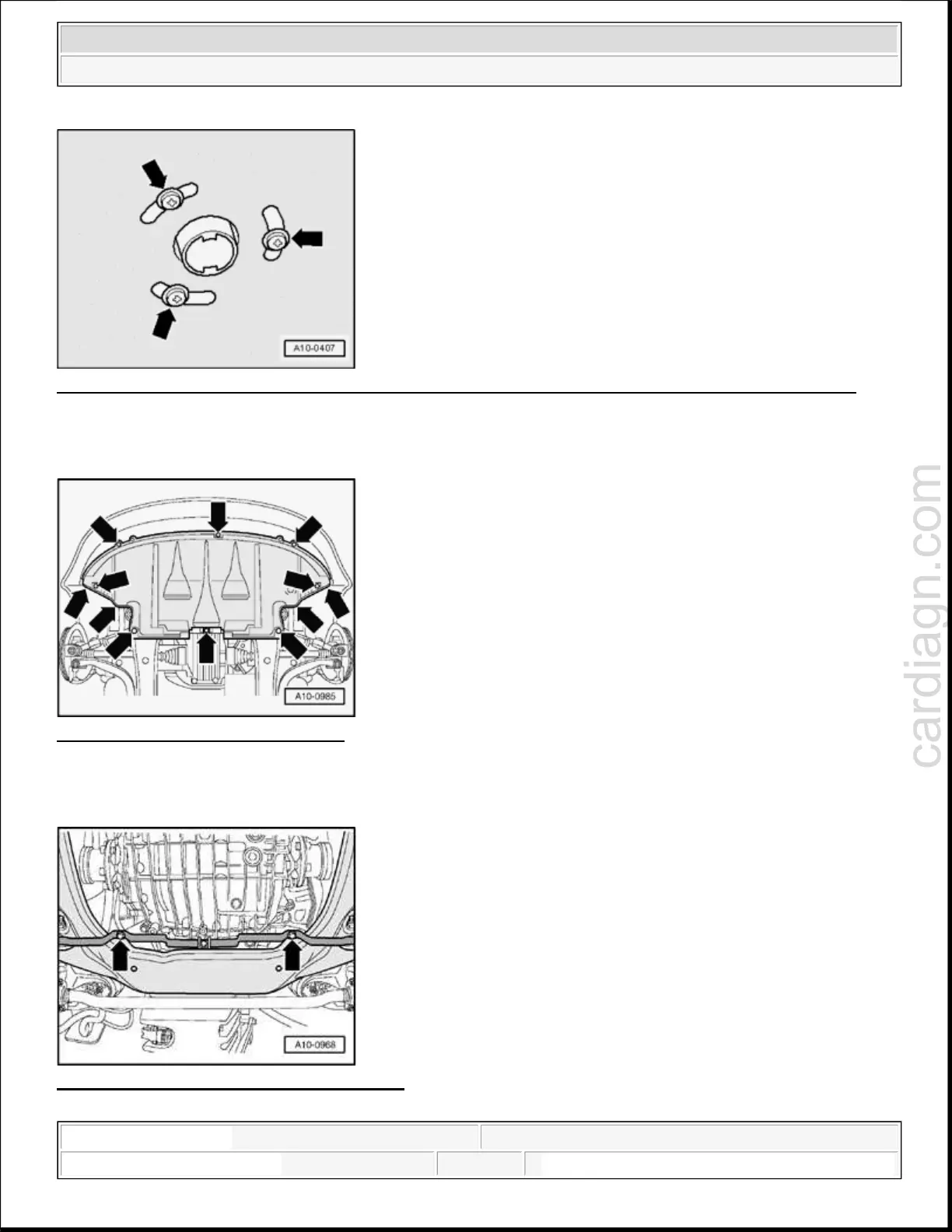

Fig. 10: Removing Bolts Securing Exhaust Pipe Of Auxiliary/Additional Heater To Sound Insulation
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove bolts - arrows - securing exhaust pipe of auxiliary/additional heater to sound insulation.
Fig. 11: Removing Sound Insulation
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove sound insulation - arrows -.
Fig. 12: Unbolting Sound Insulation Holder
Courtesy of VOLKSWAGEN UNITED STATES, INC.
