Remove lower air hose - arrow - between turbocharger and lock carrier.

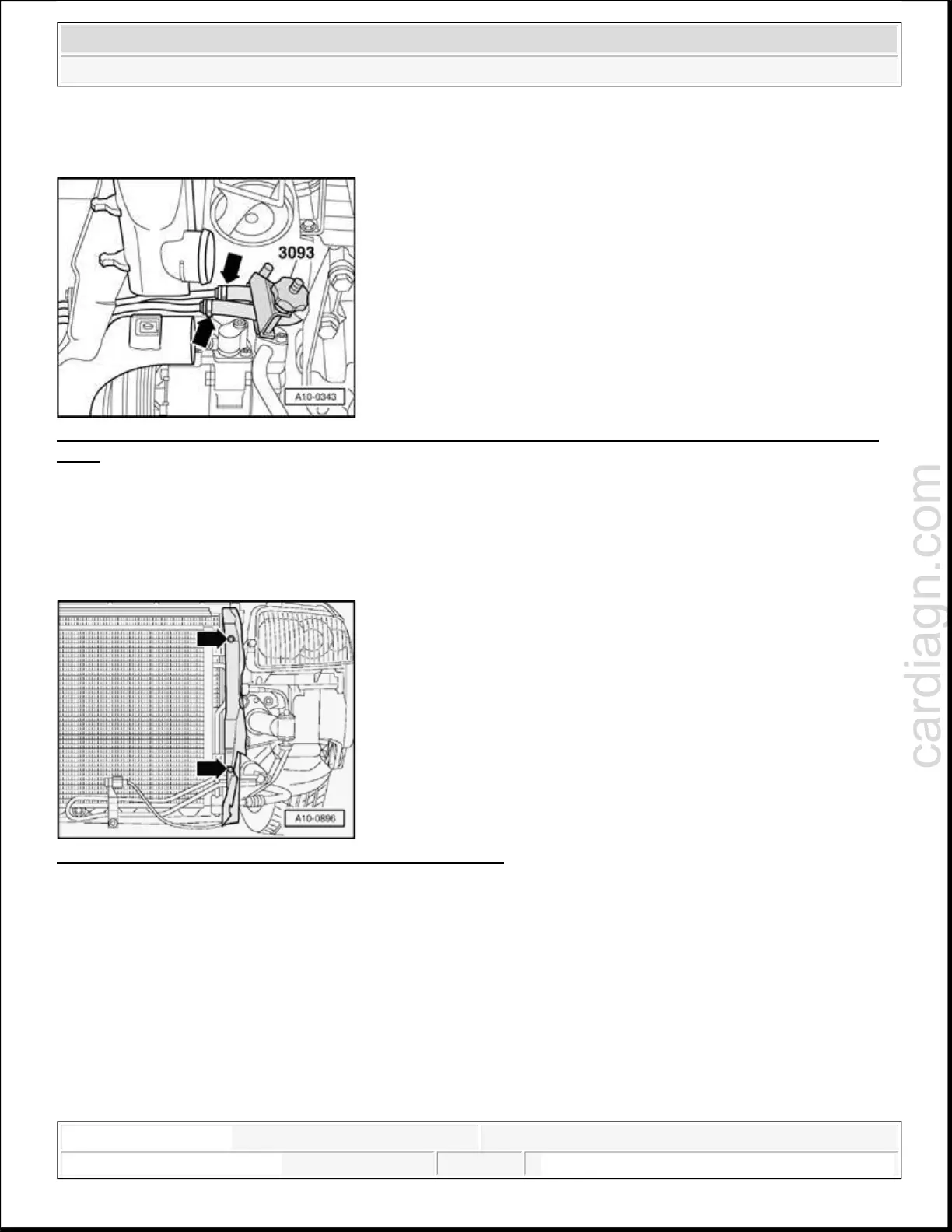

Fig. 18: Using 3093 To Clamp Off Inlet And Outlet Pipe Of Cooling Coil For Power Steering Hydraulic
Fluid
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Use 3093 to clamp off inlet and outlet pipe of cooling coil for power steering hydraulic fluid.
Place suitable container under hoses.
Disconnect hoses from cooling coil.
Fig. 19: Removing Air Ducts On Left/Right Of Radiator
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove air ducts on left and ri
ht of radiator - arrows -.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:00:55 AM Page 11
