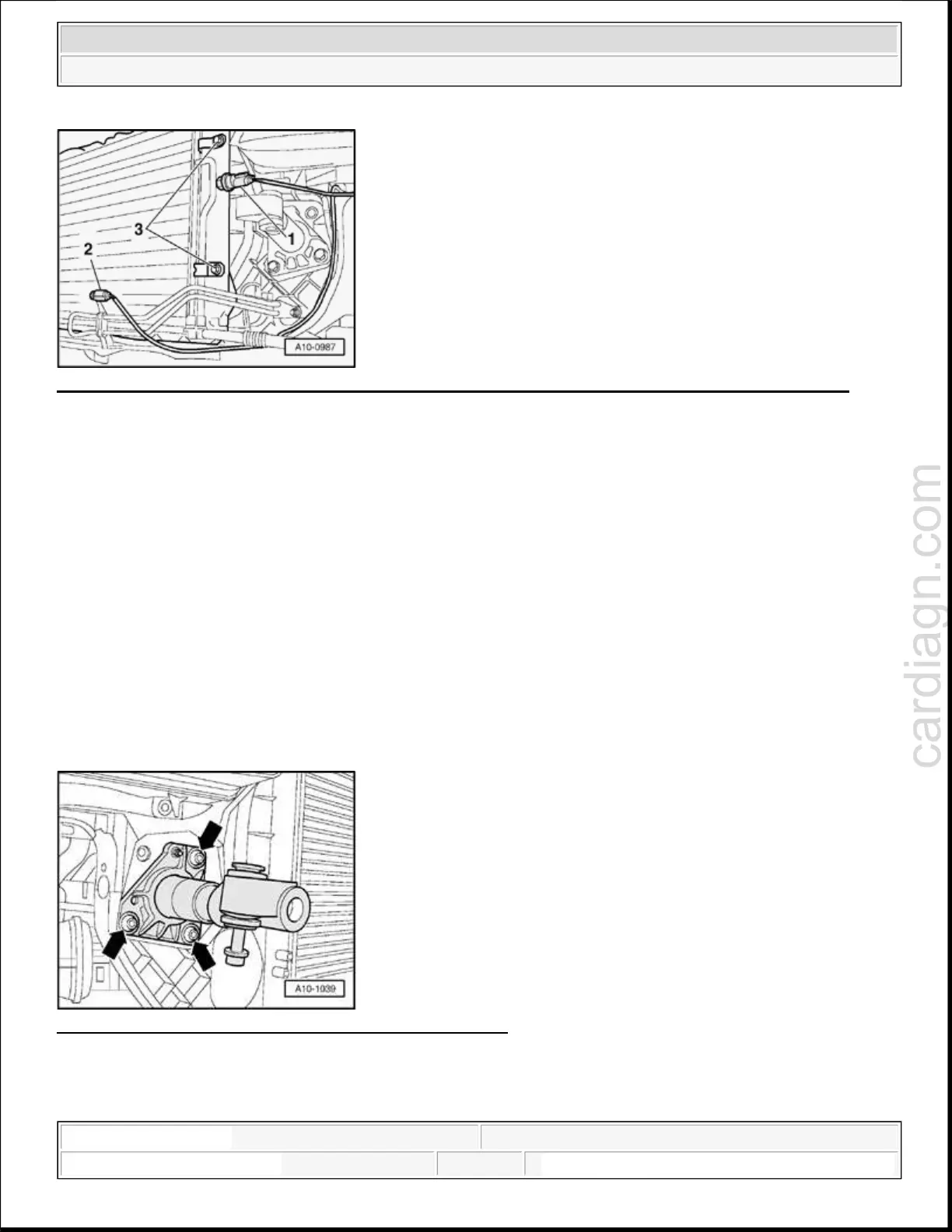

Fig. 20: Disconnecting Connector From A/C Pressure Switch F129 & Ambient Temperature Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Disconnect connector - 1 - from A/C pressure switch F129.
Disconnect connector - 2 - from ambient temperature sensor.
Move both wires clear.
Unbolt condenser - arrows - from radiator.
Carefully swivel condenser downward and set down.
Fig. 21: Removing Impact Absorber Bolts On Left/Right
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove impact absorber bolts on left and right - arrows -.
Remove hood lock cable from lock carrier: -->
CAUTION: Air conditioner refrigerant circuit must not be opened.
NOTE:
To prevent damage to condenser and refrigerant lines/hoses ensure that
lines and hoses are not stretched, kinked or bent.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:00:55 AM Page 12
