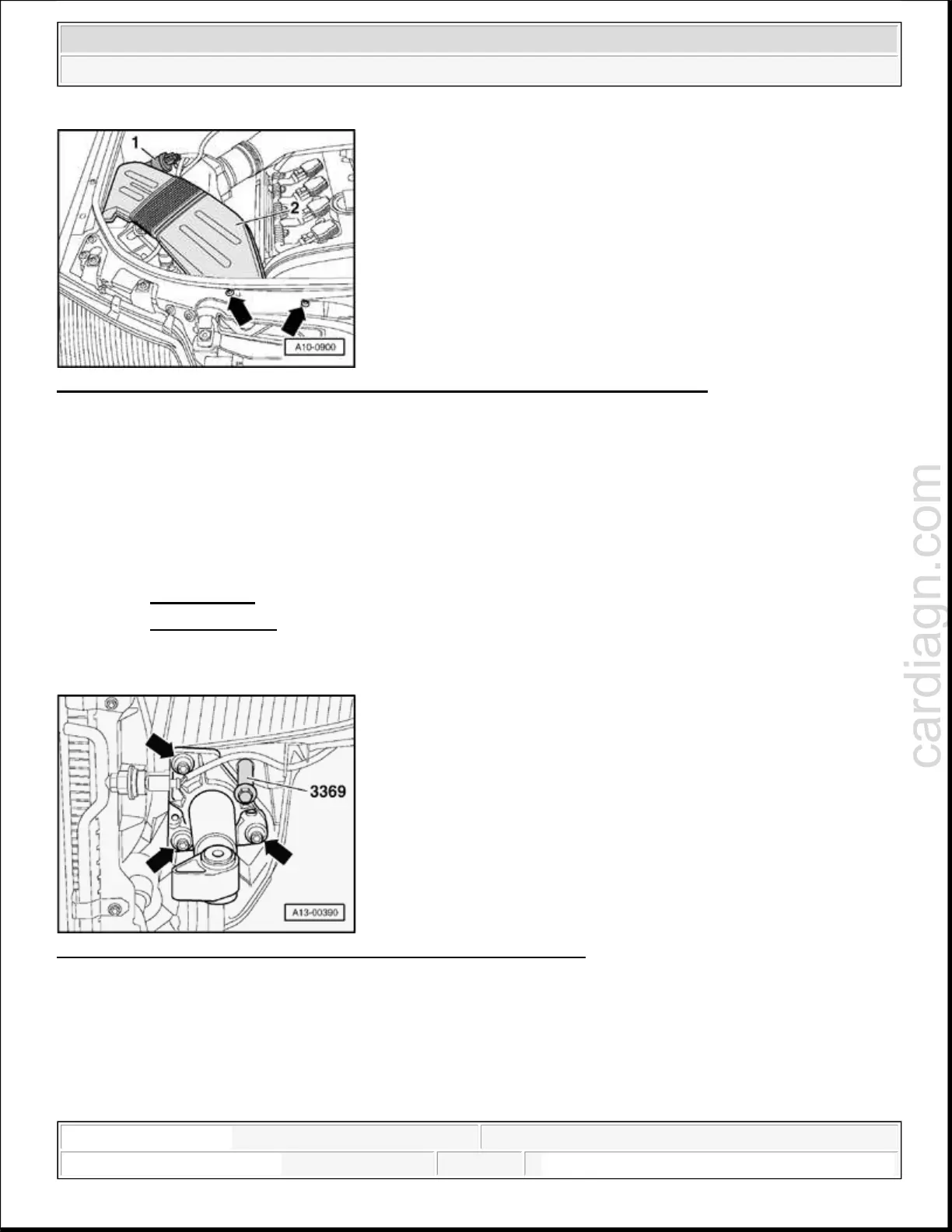

Fig. 62: Evaporative Emission Canister Purge Regulator Valve N80 And Air Duct
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove bolts - arrows -.
Disengage EVAP canister purge regulator valve N80 - 1 - from air duct.
Remove air duct - 2 -.
Pull off hood seals at lock carrier and fender edges.
Remove front bumper: -->
63 BUMPER
63 - BUMPERS for CABRIOLET
Remove bolts on left and right - arrows -.
Fig. 63: Screwing Special Tool 3369 Into Free Holes On Left/Right
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Screw special tool 3369 into free holes on left and right.
Remove bolts on left and right - arrows -.
Carefully pull lock carrier forward.
Installing
