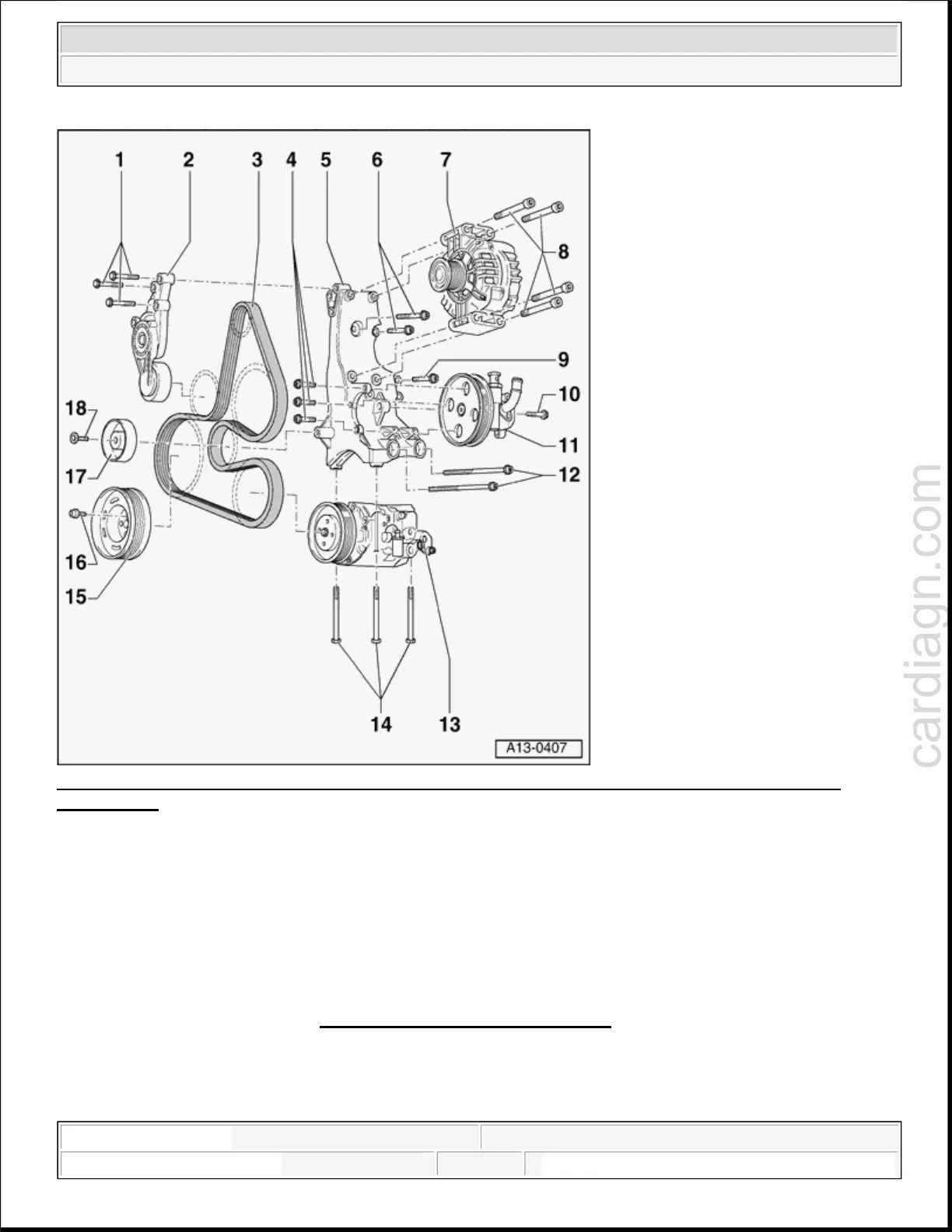

Fig. 65: Ribbed Belt For Generator, Vane Pump And Air Conditioner Compressor Remove/Install
Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.
1 - 25 Nm
2 - Tensioning roller
3 - Ribbed belt
Mark direction of rotation before removing
Removing and installing --> Ribbed belt, removing and installing
4 - 25 Nm
5 - Bracket
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
