Secured to bracket for generator, power steering pump and air conditioning compressor
18 - Special bolt, 25 Nm
For idler wheel
Installing vibration damper/pulley

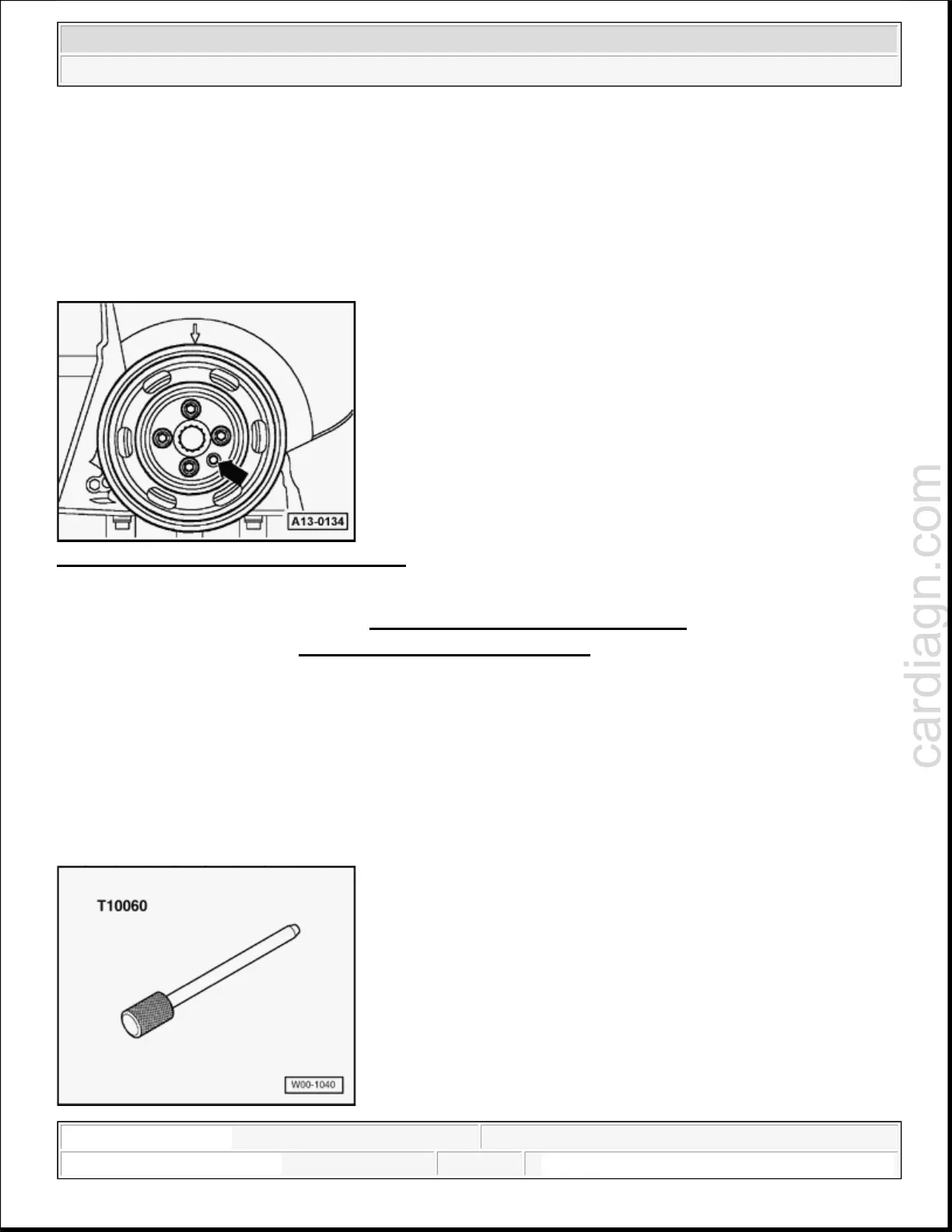

Fig. 66: Installing Vibration Damper/Pulley
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Lock carrier in service position --> Lock carrier, moving to service position.
Removing ribbed belt --> Ribbed belt, removing and installing.
When installing vibration damper, only use genuine bolts
Vibration damper can only be installed in one position: Hole - arrow - in vibration damper must fit over
projection on toothed belt sprocket.
Ribbed belt, removing and installing
Special tools, testers and auxiliary items required
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
