Fi
. 67: Mandrel T10060
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Mandrel T10060
Removing

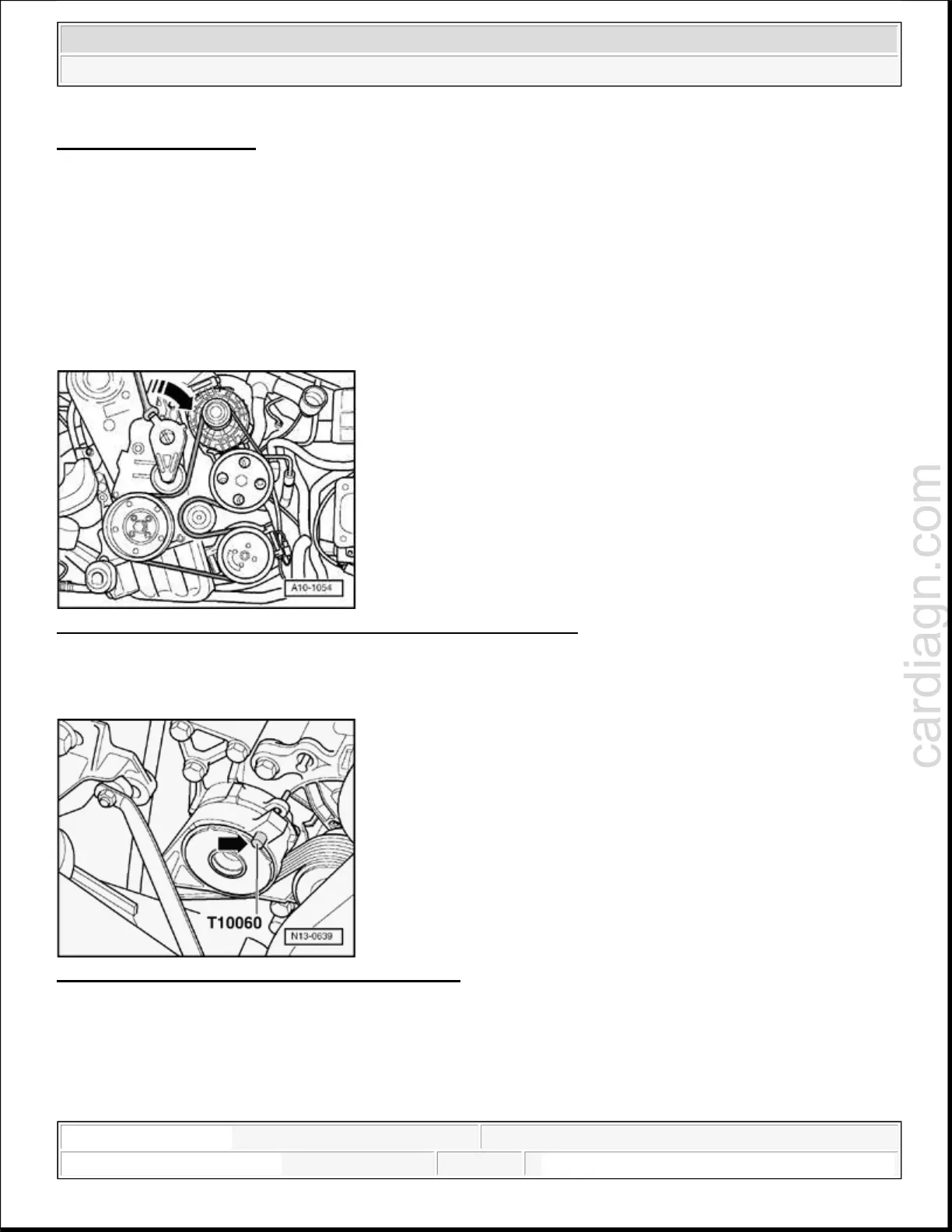

Fig. 68: Swiveling Tensioning Element In, To Loosen Ribbed Belt
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Swivel tensioning element in direction of - arrow - to loosen ribbed belt.
Fig. 69: Locking Tensioner Using Mandrel T10060
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Lock tensioner using mandrel T10060 - arrow -.
Remove ribbed belt.
Installing
NOTE:
Mark direction of the ribbed belt with chalk or felt-tip pen prior to removal.
Running a used belt in the opposite direction could destroy it. When
installing the belt, make sure it is properly seated in the pulleys.
