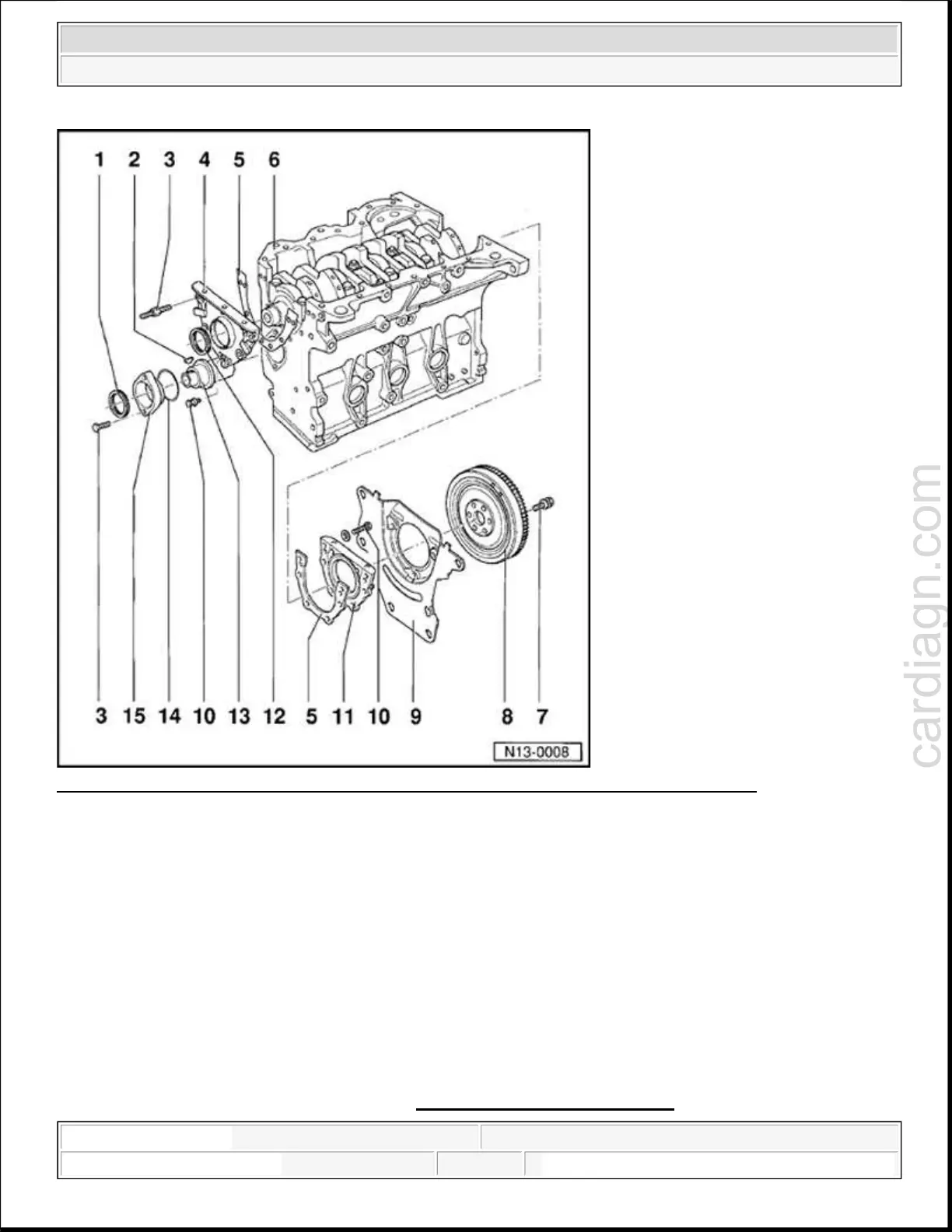

Fig. 109: Sealing Flanges And Flywheel/Drive Plate, Removing And Installing Overview
Courtesy of VOLKSWAGEN UNITED STATES, INC.
1 - Oil seal
 Install with 10-203
2 - Woodruff key
 Make sure key is seated properly
3 - 25 Nm
4 - Front sealing flange
 Remove oil pan to remove and install --> Oil pan, removing and installing
