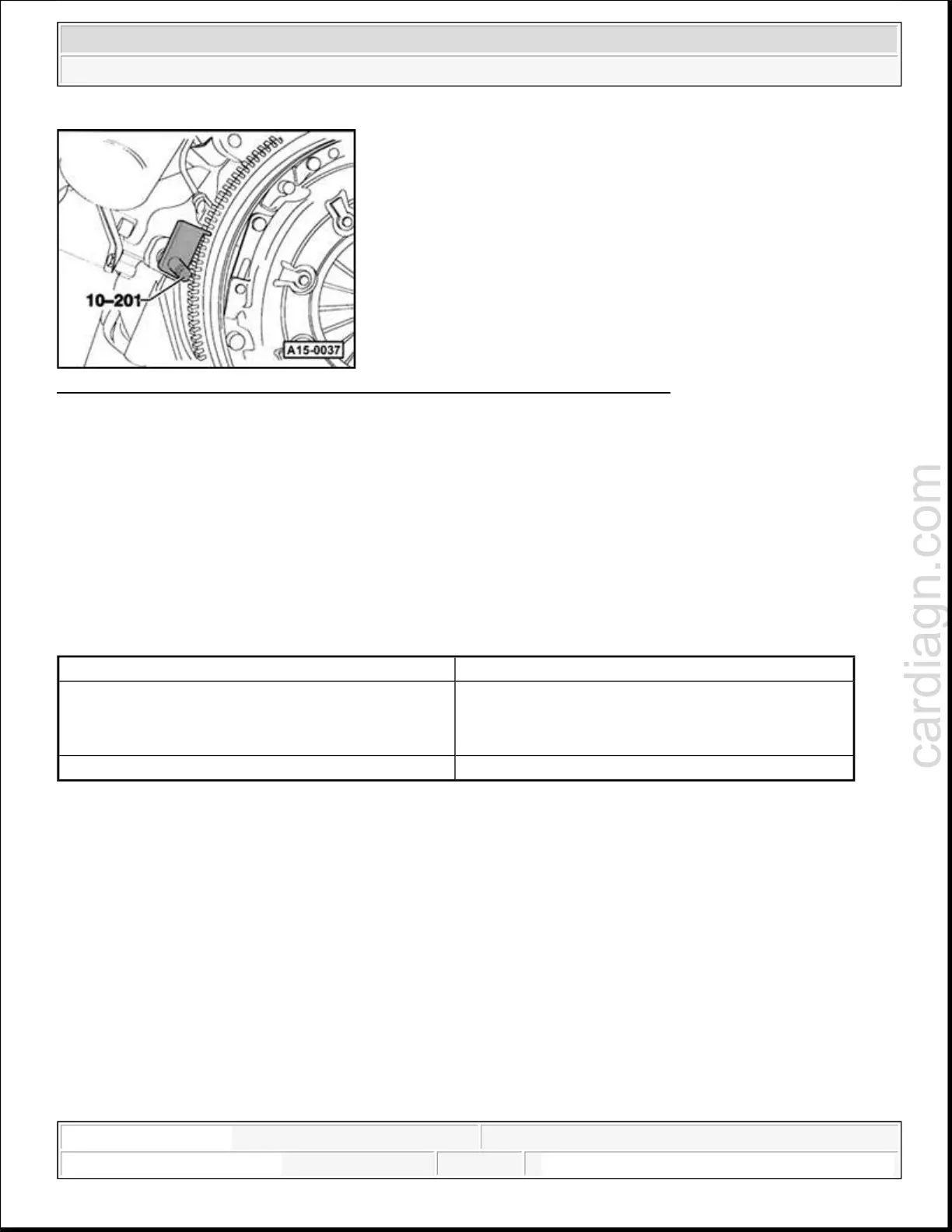

Fig. 119: Reversing Position Of Counterhold 10-201 To Loosen/Tighten Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Reverse position of counterhold 10-201 to loosen/tighten bolts.
 Mark position of flywheel relative to engine.
 Unbolt and remove flywheel.
Installing
Install in reverse order, paying attention to the following:
 Replace bolts.
* 90 ° is one quarter turn
*Replace bolts
* 180 ° is one half turn
Drive plate
Special tools, testers and auxiliary items required
Component Nm
Dual-mass flywheel to crankshaft: Bolt length 22.5
mm Bolt length 35.0 mm Bolt length 43.0 mm
60 + 90 [degrees]
* See note
60 + 180 [degrees]
* See
note
60 + 180 [degrees]
* See note
* See note
Sealing flange to cylinder block 10
