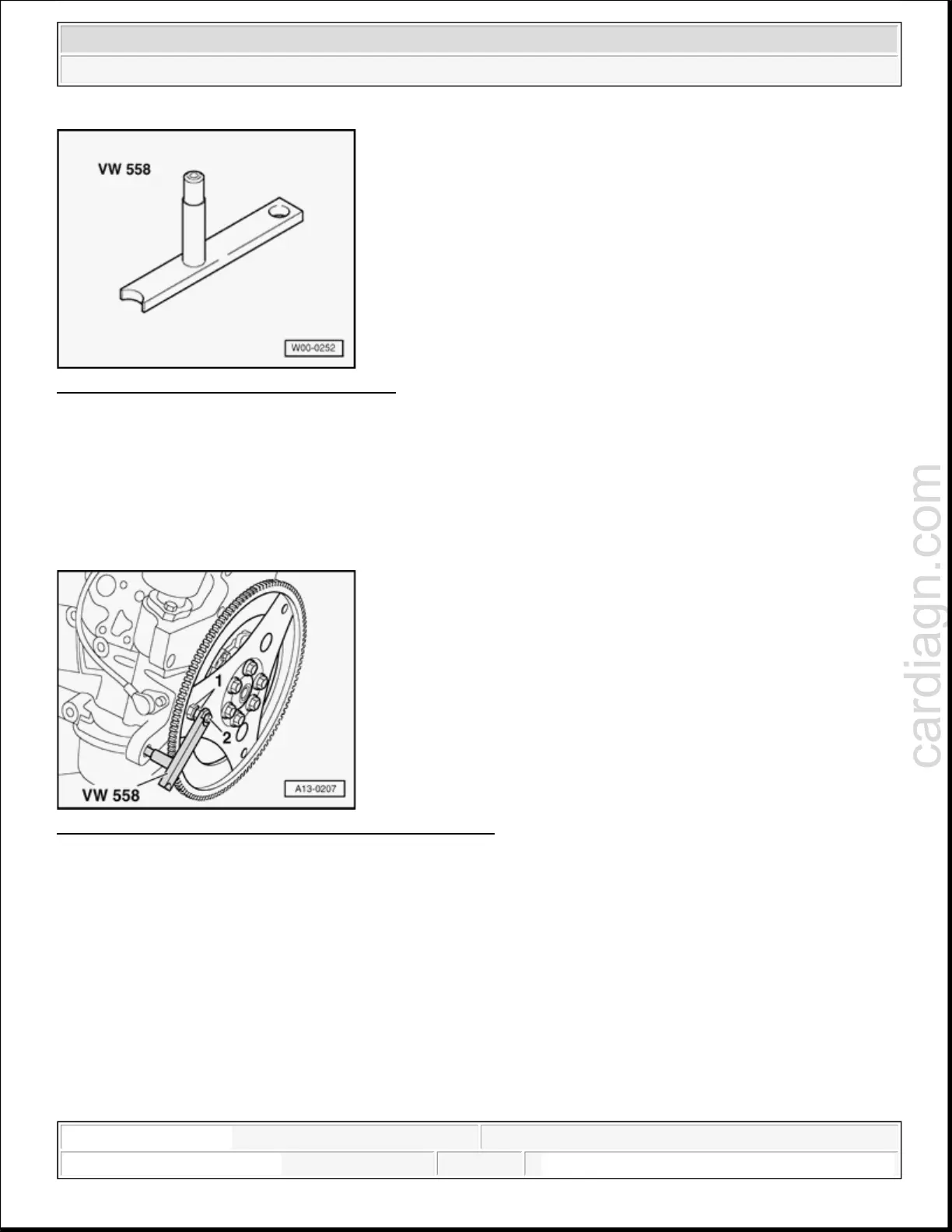

Fig. 120: Identifying Counterhold VW 558
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Counterhold VW558
Hex bolt M8 x 45 and two M10 hex nuts
Calliper gauge or depth gauge
Removing
Fig. 121: Securing Counterhold VW558 To Drive Plate
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Secure counterhold VW558 to drive plate using hex bolt M8 x 45 - 2-. Place two M10 hex nuts - 1 -
between counterhold and drive plate.
Mark position of drive plate relative to engine.
Unbolt drive plate.
Installing
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
