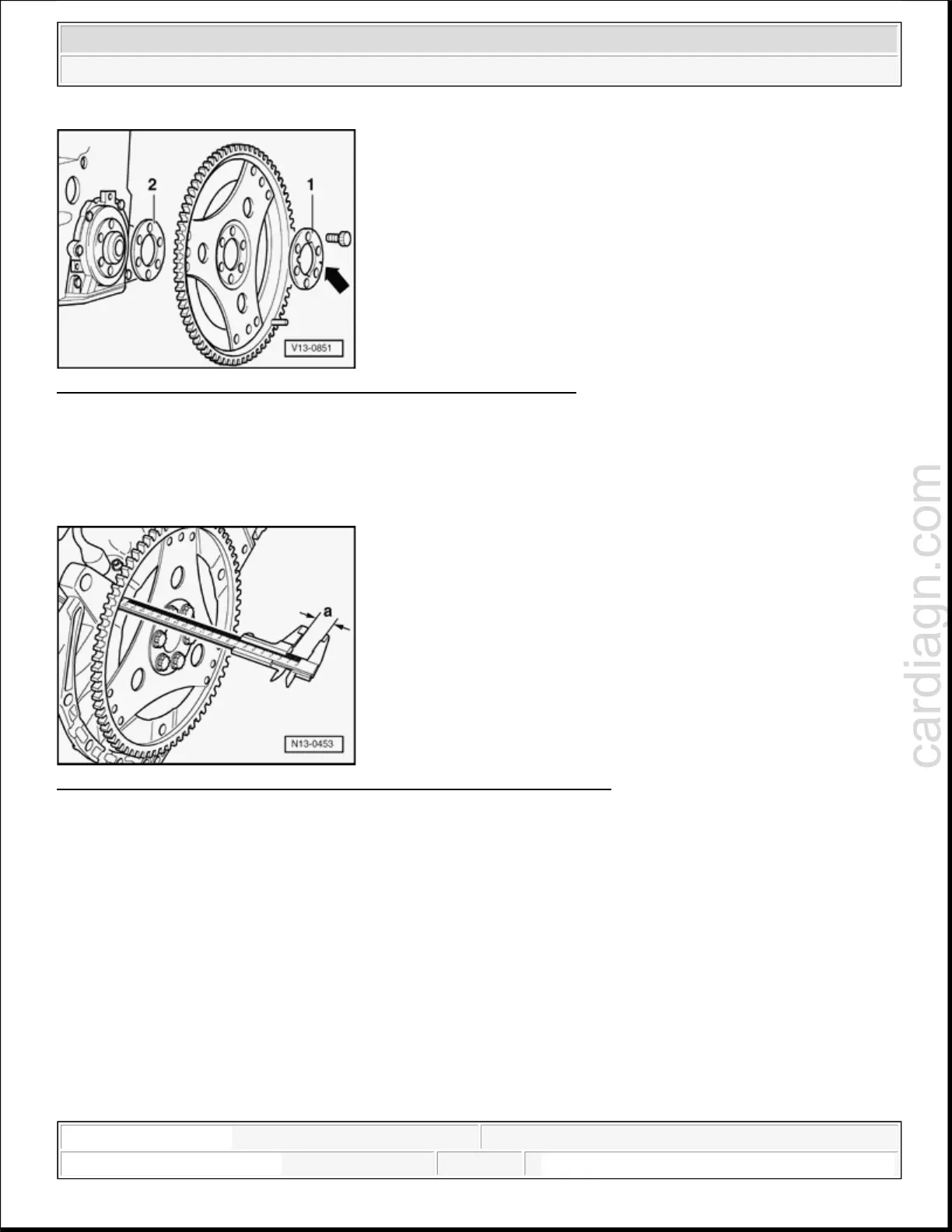

Fig. 122: Identifying Drive Plate, Grooved Washer And New Bolt
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Locate drive plate with shim - 2 - and packing plate - 1 -. Lug - arrow - must face toward torque
converter.
Insert at least 3 old securing bolts and tighten to 30 Nm.
Fig. 123: Checking Distance Between Drive Plate And Cylinder Block
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Perform measurement by passing sliding calliper with depth gauge through hole used for securing
converter.
Specification: 18.9... 20.5 mm
If measured value exceeds specification:
