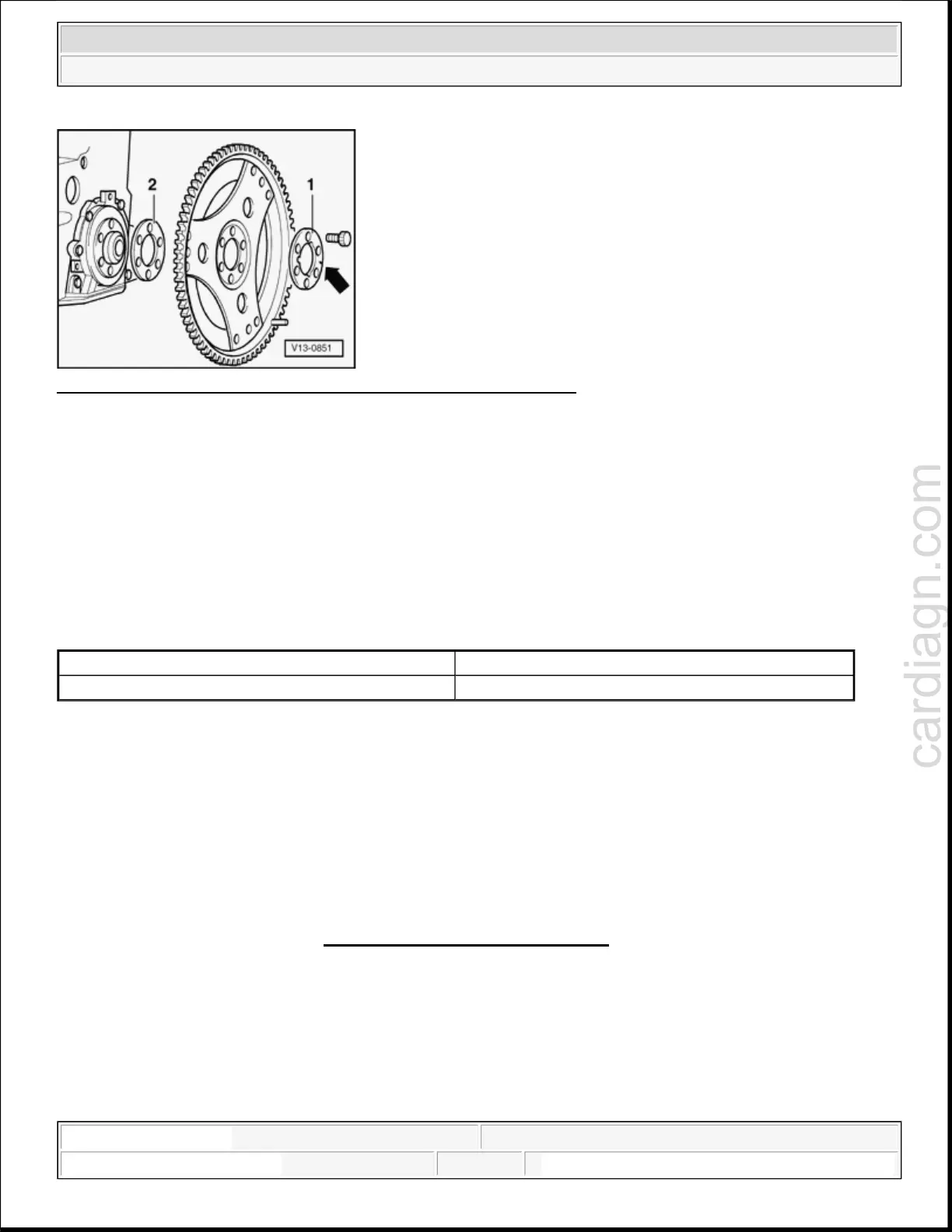

Fig. 124: Identifying Drive Plate, Grooved Washer And New Bolt
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove drive plate again and correct value by installing with/without shim - 2 -. Tighten bolts to 30 Nm
again.
Measure distance again.
If measured value matches specification:
Install new bolts and tighten.
Tightening torque
* 90 ° is one quarter turn
CRANKSHAFT, REMOVING AND INSTALLING
Crankshaft, removing and installing
Component Nm
Drive plate to crankshaft 60 + 90 ° * See note
NOTE:
Before removing crankshaft, provide suitable support to ensure that
sensor wheel ( - 6 - ) is not damaged.
When working on engine, secure it to engine stand using engine bracket
VW540 --> Engine, securing to repair stand
.
