35
Displays

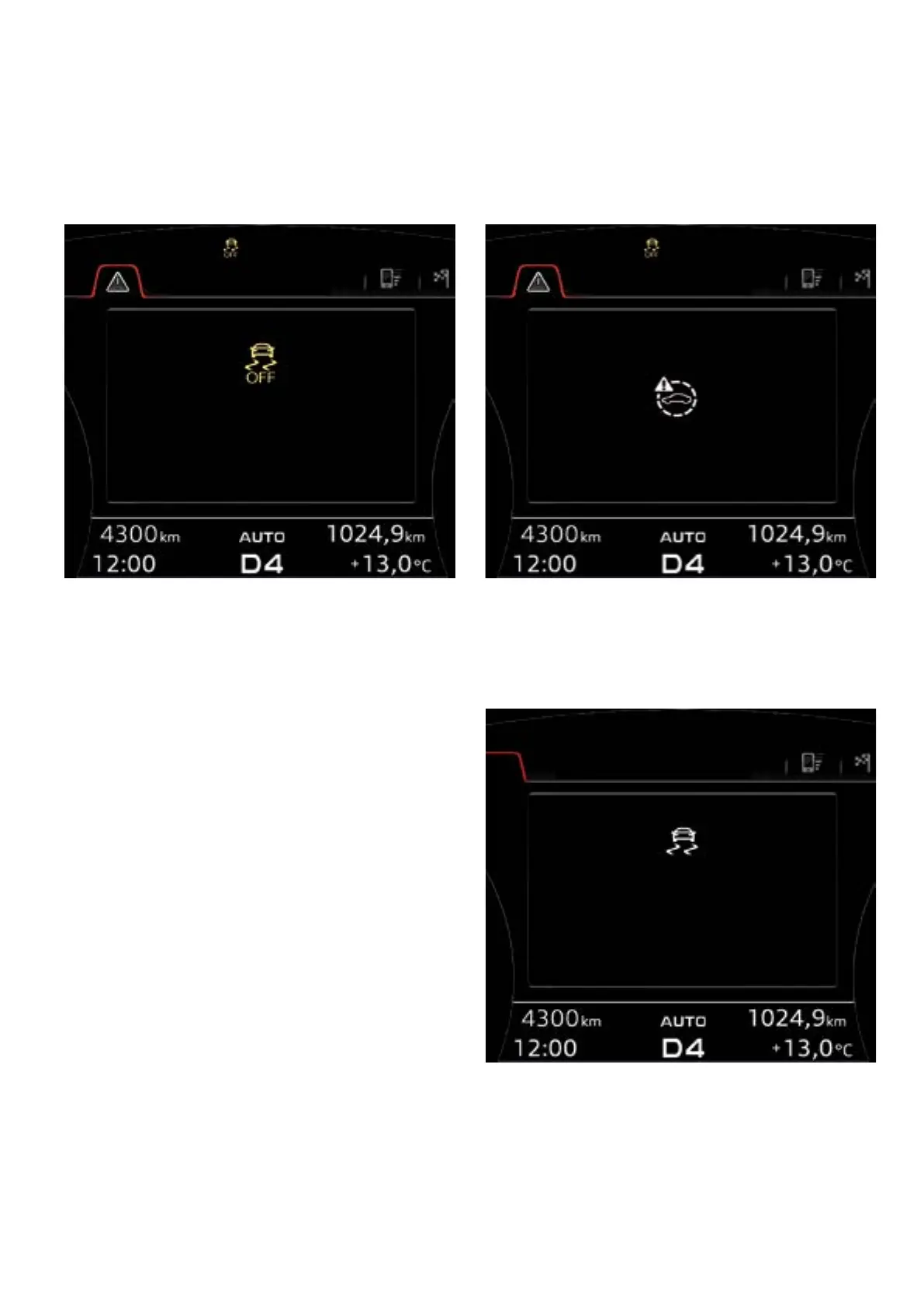

When ESC is set to "oroad" mode, the following two
messages are successively displayed to the driver in the
instrument cluster for about5seconds in each case.
Limitations
The messages are stored in the tab for driver information
and warning lamps and can be retrieved.
637_032 637_033
637_034
The functions of Audipresense are restricted until the
following conditions are met:
• The ESC mode "oroad" is deactivated using the ASR/
ESP Button E256.
• The ignition is turned o and on again because ESC is
re-activated when the ignition is turned on.
• ACC is activated which would lead to the automatic
activation of ESC.
If ESC is switched on again using E256, the adjacent
message is displayed in the instrument cluster.
Stability Control
(ESC): oroad.
Warning!
Restricted
stability
Audi pre sense:
currently restricted
Stability Control
(ESC): switched on
1st display
2nd display
