Audio Control EQL - Procedure for Changing PFM Modules

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

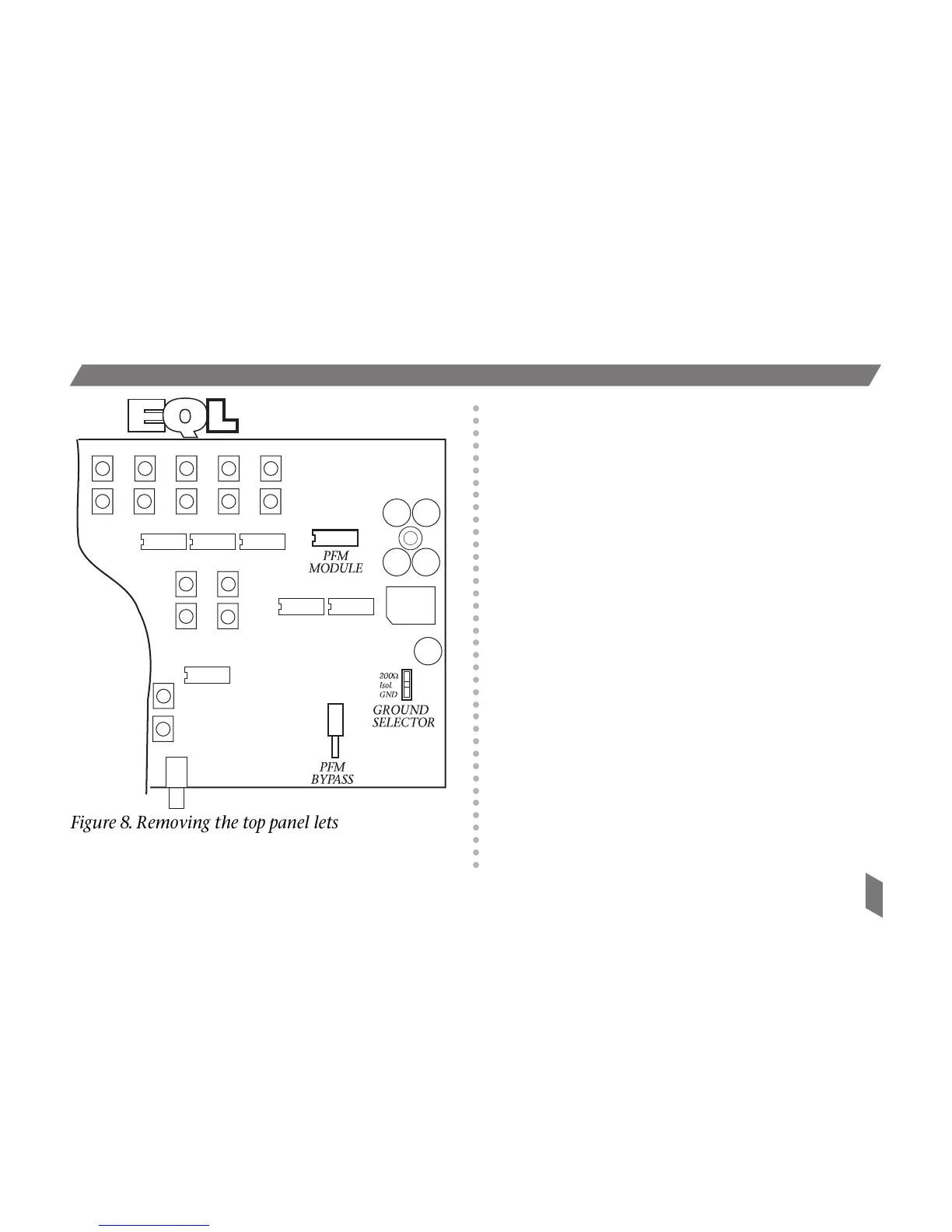

Figure 8. Removing the top panel lets you access the
internal Programmable Frequency Match module
and Bypass Switch.
Doing The DeedDoing The Deed
Doing The DeedDoing The Deed
Doing The Deed
1. Turn the system power off.
2. Remove the top panel and locate the
Programmable Frequency Match module,
as shown in Figure 8.
3. Change the module.
4. Replace the top panel and tighten the
screws.
5. Turn the system power on.
