tm
EQS
Owner’s Enjoyment Manual
9
C. EQS Audio Wiring
Planning: As you may already have guessed, there are
numerous ways to configure the EQS in your audio system.
Spend a little quality time planning out your system and
even sketching it out on paper. The following diagrams are
just a few of the system options:

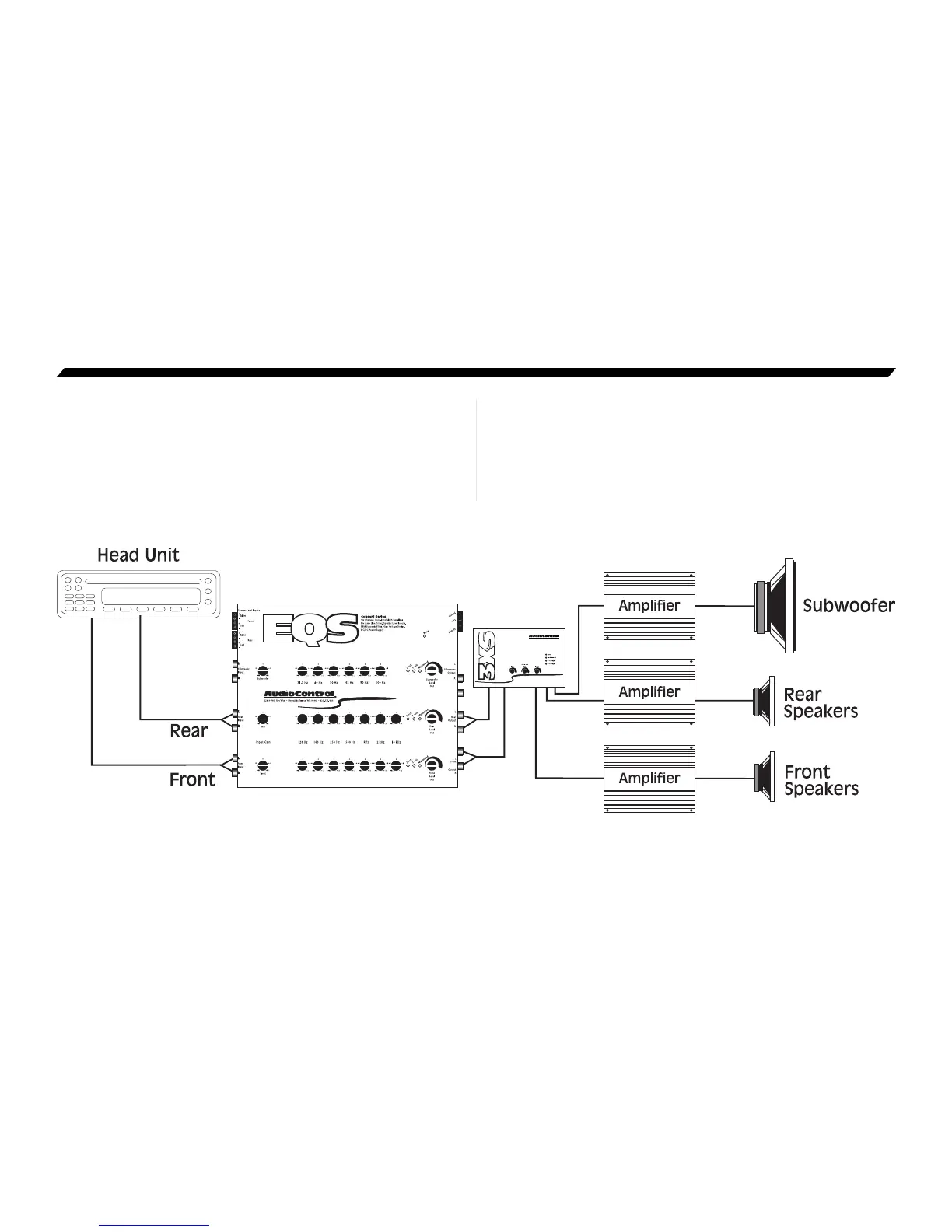

Figure 5: EQS with Four Channel Source Unit and 3XS crossover
