Audio Note M6 RIAA - Page 10

CONNECTION continued…

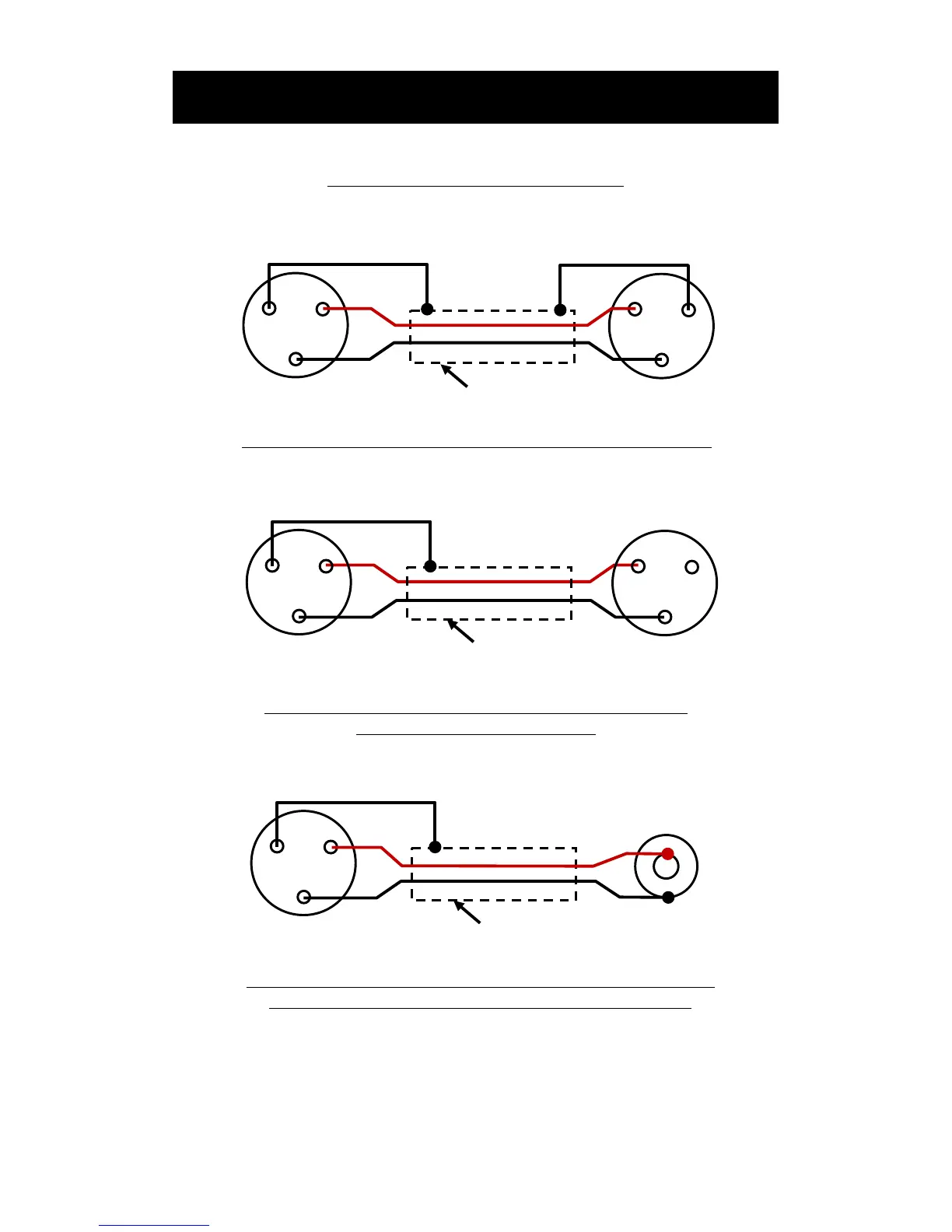

CABLE CONFIGURATION OPTIONS
When connecting the XLR / BALANCED outputs to an amplifier with an
RCA / Single Ended input, the switch must be set to the
‘SINGLE ENDED’ position.
!
CONVENTIONAL: SCREEN CONNECTED AT BOTH ENDS
XLR FEMALE
XLR MALE
3
1
1
2
2
3
SCREEN
PREAMP OUTPUT
POWER AMP INPUT
SCREEN CONNECTED AT PREAMP END ONLY, TO
ELIMINATE GROUND LOOPS
3
2
1
2
1
3
SCREEN
XLR FEMALE
XLR MALE
PREAMP OUTPUT
POWER AMP INPUT
CABLE CONFIGURATION FOR XLR BALANCED PREAMP
OUTPUT TO RCA UNBALANCED AMPLIFIER INPUT
2
1
3
SCREEN
XLR FEMALE
RCA MALE
PREAMP OUTPUT
POWER AMP INPUT
