Page 11

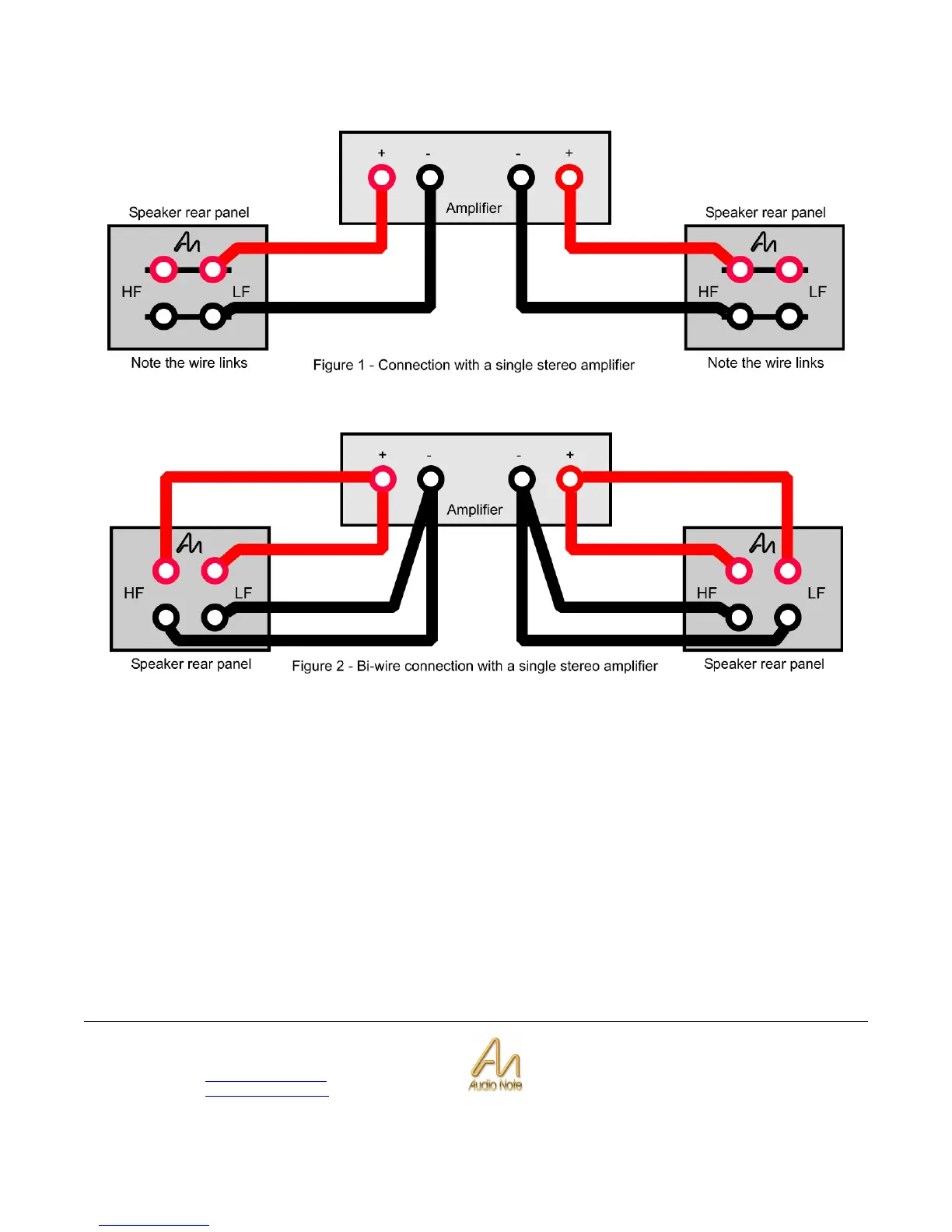

Simple Connection
Bi-Wire Connection
Bi-Amplifying Connections
Bi-amplifying involves using 2 stereo or 4 mono power amplifiers to drive the loudspeakers. When using two stereo power
amplifiers, it is possible to bi-amplify in two ways (see figures 3 and 4).
Figure 3 shows each stereo amplifier driving one loudspeaker channel. One channel of each amplifier is driving the LF
unit and the other is driving the HF unit of each speaker.
Figure 4 shows one stereo amplifier driving the LF units of both loudspeaker channels and the other amplifier driving the
HF units of both loudspeaker channels.
