APx517 B Series Acoustic Analyzer: Specifications 35
APx517 B Series acoustic audio analyzer
Specifications
with APx500 v6.0.1 or higher measurement software
October 28, 2020 NP0020.00045 rev. 000

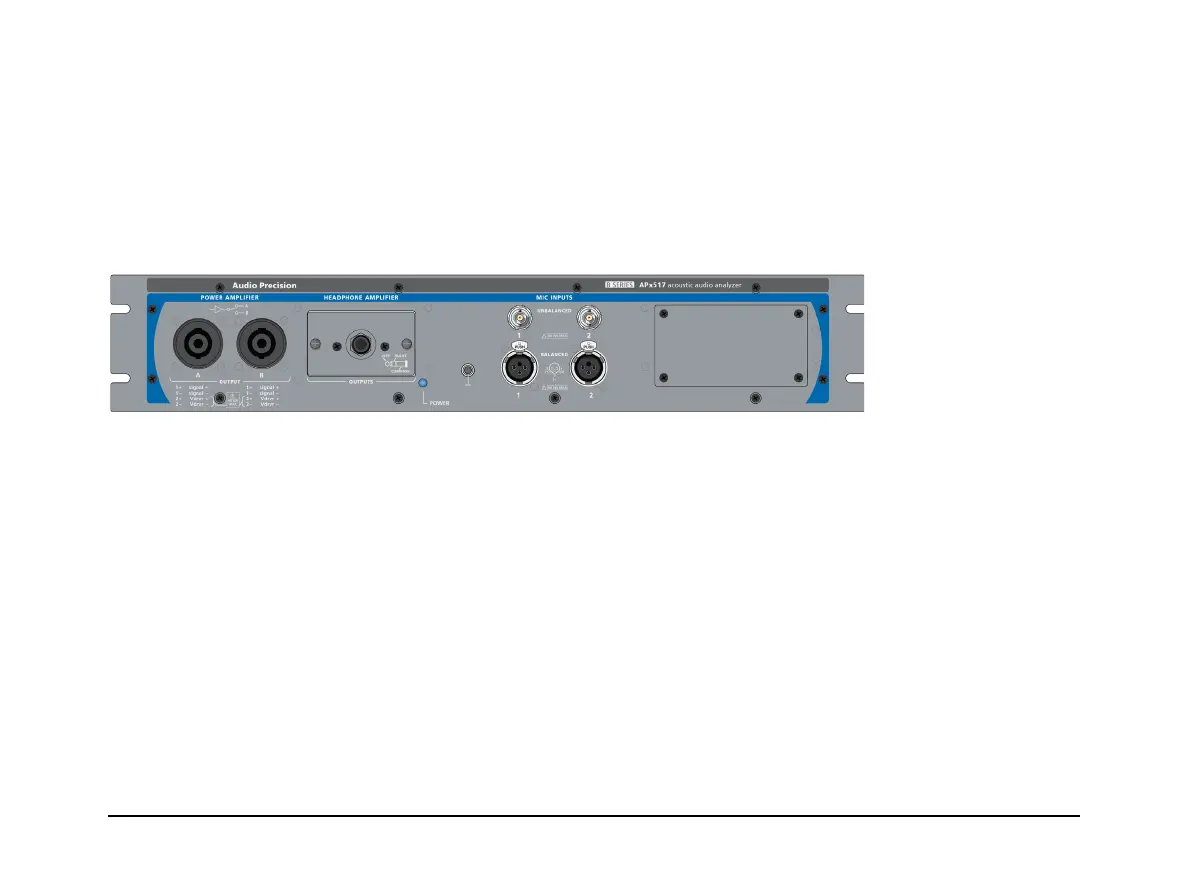

This illustration shows an APx517 B Series with the 1/4 inch headphone jack.
These specifications cover the analog input, power amplifier output, headphone amplifier out-
put, and General and Environmental specifications of the APx517 B Series analyzer.
The APx517 has a headphone amplifier connector panel bay that can accepts one of three con-
nector panels: 1/4 inch, 3.5 mm, and Dual BNC.
Specifications for the available interface modules, including DIO, DSIO, HDMI, PDM, and
Bluetooth, are found in other sections of this document.
Specification begin on the next page.
