Audio Precision B Series Installation Instructions

APx DIO Module for B Series: Specifications 51
DIO
DIO digital input/output module specifications
with APx500 v5.0 or higher measurement software
as fitted in APx52x and 58x B Series audio analyzers
NP0020.00037 rev 000
December, 2018

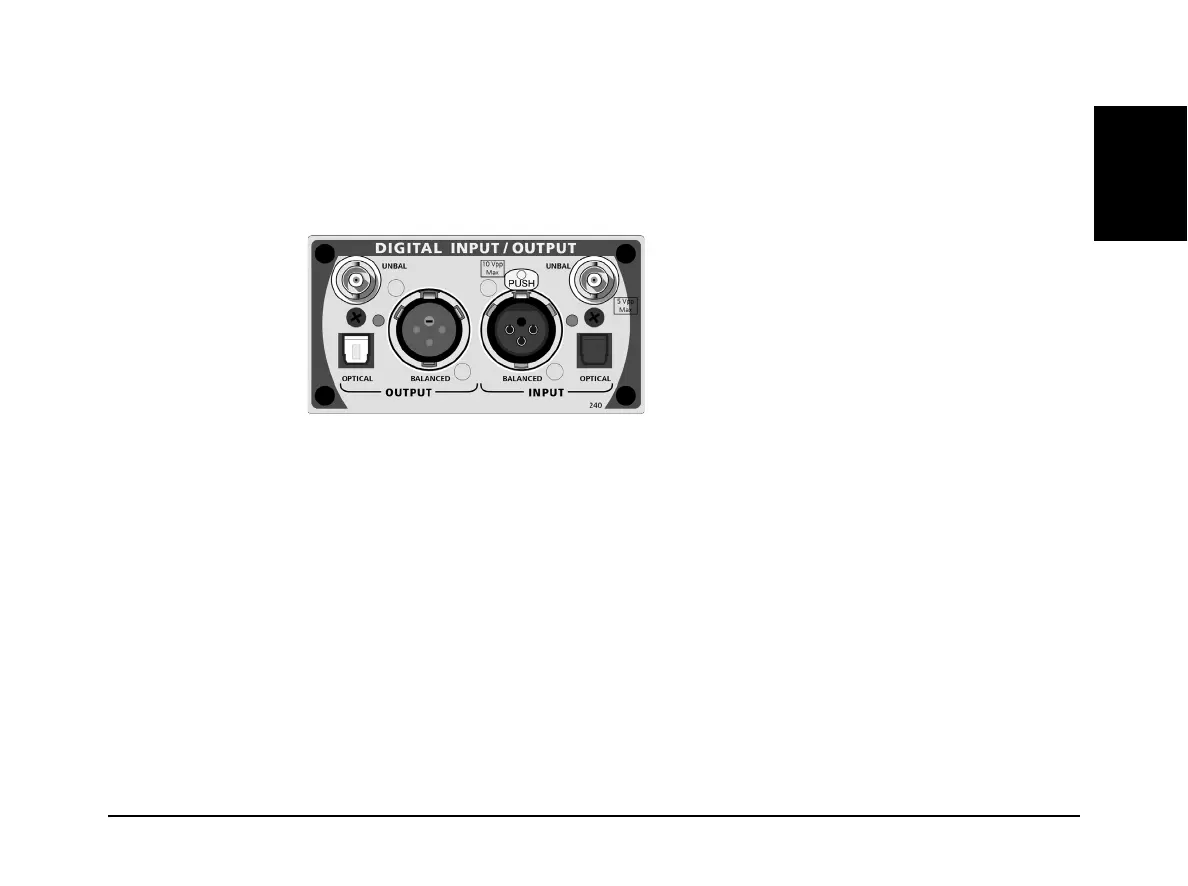

This illustration shows an APx DIO module, model 240.
These specifications cover the digital input and output functions of the Audio Precision DIO.
The DIO is available as a stand-alone module (models 240).
The APx DIO provides balanced digital input and output compatible with AES3, AES/EBU
and IEC60958-4, on XLR connectors; unbalanced digital input and output compatible with
S/PDIF and IEC60958-3 and also AES3id and SMPTE 276 M, on BNC connectors; and opti-
cal digital input and output compatible with Toslink interfaces.
DIO specifications begin on the next page.
