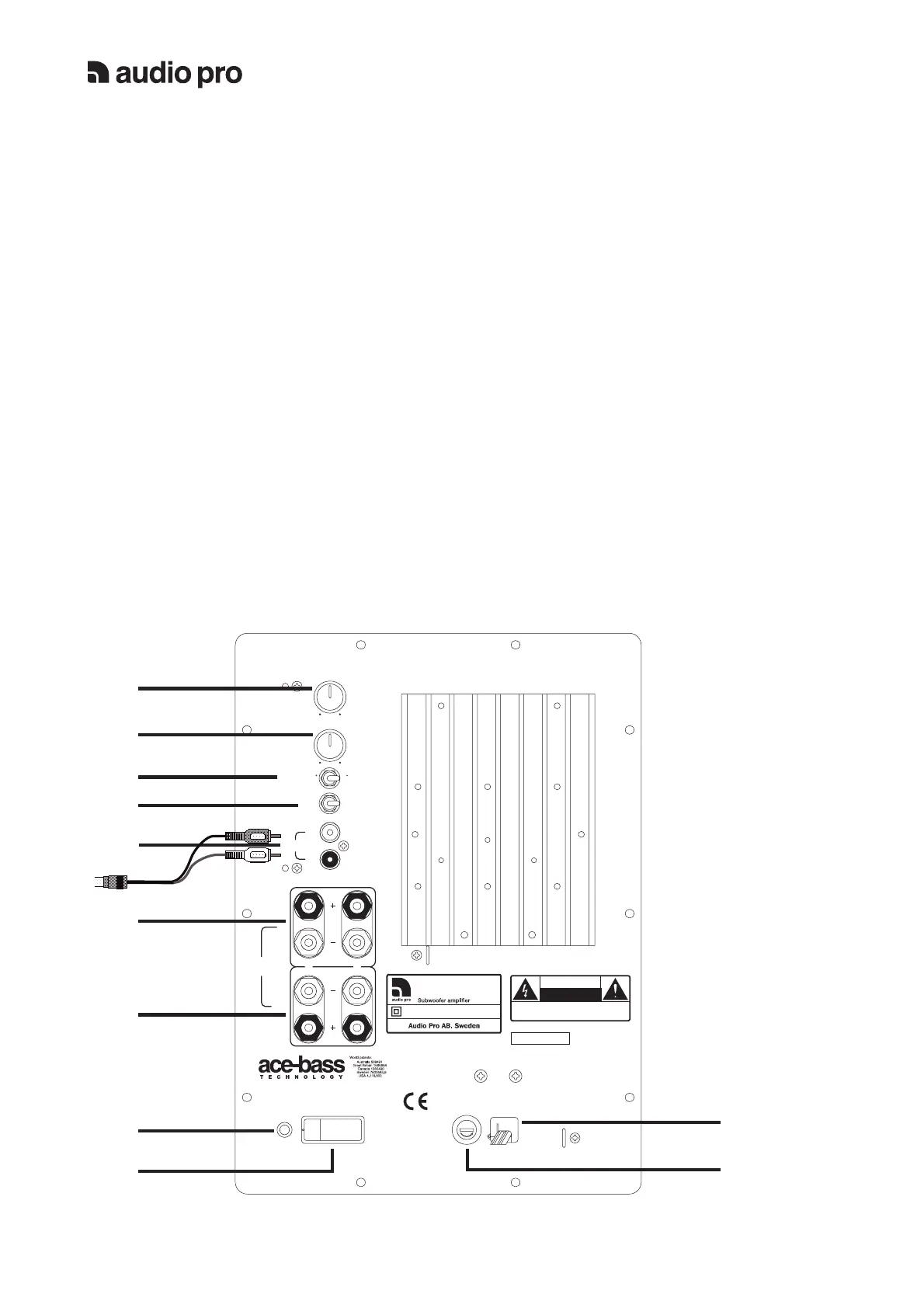

3. FUNCTIONS
Power switch (8):
To switch the subwoofer amplifier to ON or OFF
mode. Make sure it is turned OFF during installation.
Turn OFF the subwoofer when it will not be used for a
longer period of time.
Standby switch (2):
In Auto mode: The amplifier goes automatically into
standby mode if no signal been detected in 20 minu-
tes. If goes on automatically if signal is detected.
In ON mode: The amplifier will be constantly ON.
Main Power indicator: (9)
The red indicator shows the operation status of the
subwoofer. Red light - subwoofer is on or in standby
mode.
Power indicator: (Blue on front)
The blue indicator shows the operation status. Blue
light - the subwoofer is on.
Volume control (5):
The sound level of the subwoofer can be adjusted.
Use the Level control carefully, remember that
program material may contain very high energy.
LowPass (4):
The Lowpass crossover frequency can be adjusted
variably between 50 and 100Hz. This gives you a
unique possibility to perfectly match the Subwoofer to
your satellite speakers. The lowest frequencies will be
reproduced only by the subwoofer.
Phase adjustment (3):
The placement of the subwoofer can have effect on
the phase between subwoofer and satellites. With the
phase adjustment the phase can be switched 180
degrees.
* (Use the enclosed Y-adaptor)
