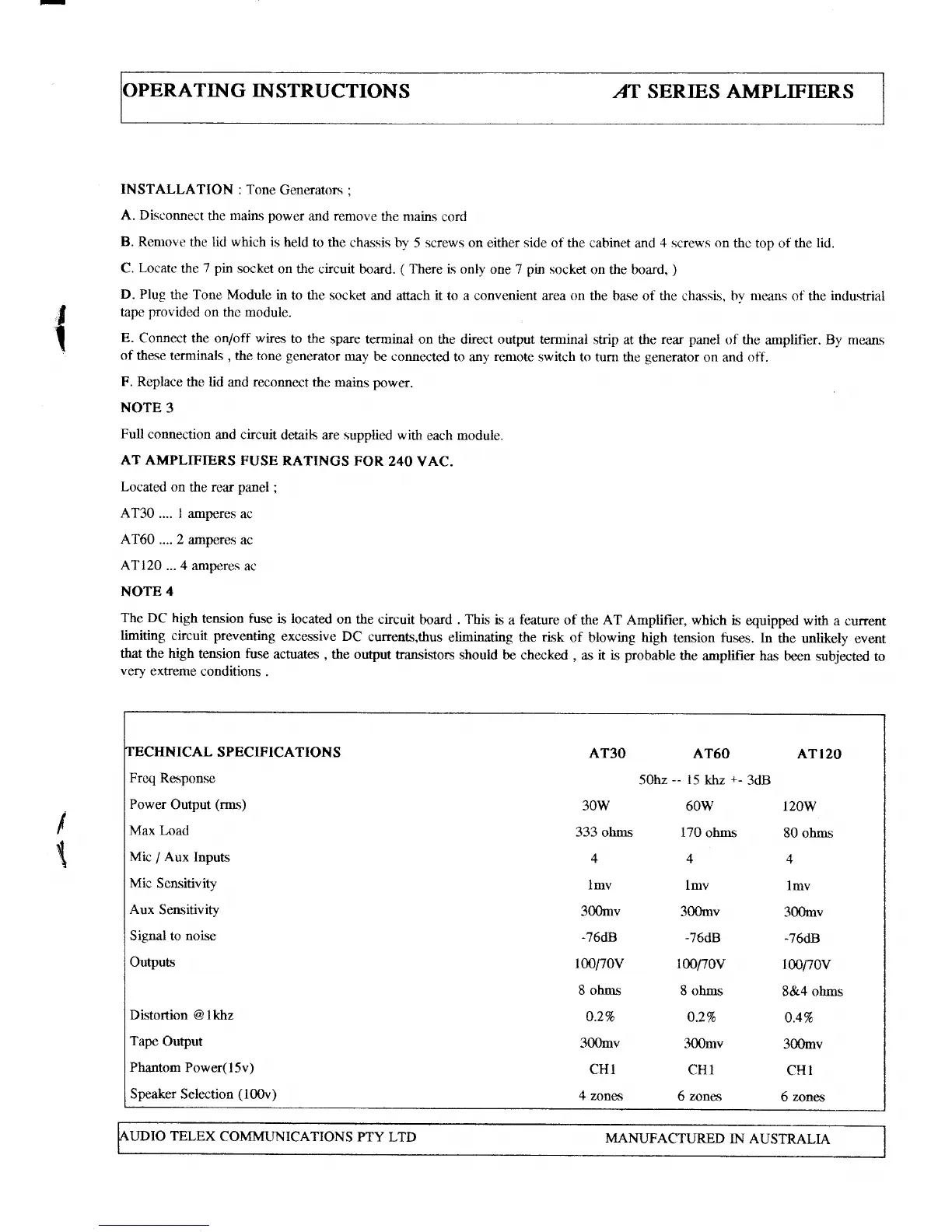

ATING
INSTRUCTIONS
IT
SERIES
AMPLIFMRS
INSTALLATION
:
Tone
Generaton
;
A. Disconnect
the
mains
power
and
remove
the nrains
cord
B. Remove
the lid which is
held
to the chassis
by 5 screws on either side of the cabinet
and
4 screws on
thc top of the
lid.
C.
Locate
the
7
pin
socket
on the oircuit
board.
(
There is
only one 7
pin
socket
on the board,
)
D. Plug
the Tone
Module in
to the socket
and attach
it
to a convenient area on the
base of
the
chassis, by
nieans
of the
industrial
tape
provided
on t}te module.
E.
Connect the on/off wires
to the
spare tenninal
on the direct output terminal
strip at t}te
rear
panel
of the
anplifier.
By
means
of these
terminals
,
the tone
generator
ma-y
be connected
to any
rernote
switch to tum
the
generator
on and ofT.
F. Replace
the lid
and
reconnect
the mains power.
NOTE
3
Full
connection
and circuit
details are supplied with
each
module.
AT AMPLIFIERS
FUSE
RATINGS FOR
240
VAC.
Located
on
tlte
rear
panel
;
AT30
.... I amperes
ac
4'T60
....
2
ampere.;
ac
ATl20
...4 anperes
ac
NOTE
4
The DC high
tension fuse is located
on the circuit
board .
This
is
a
feature
of
the
AT Amplifier,
which is
equip@ with
a current
limiting
circuit
preventing
excessive DC
currents,thus
eliminating the risk
of blowing high
tension fuses. In
the
unlikely event
that the high
tension
fuse actuates
,
the output
transistors should
be checked
,
as
it is
probable
the
amptifier has
been subjected
to
very
extreme
conditions
.
t
\
Freq
Response
Power
Output
(rms)
Max l,oad
Mic
/
Aux Inputs
Mic
Scnsitivity
Aux
Sernitivity
Signal 1s nqise
Outputs
Distortion
@lk,hz
Tape OuQut
Phantom
Power(l5v)
Speaker
Selection
(
l00v)
ICAL
SPECIFICATIONS
AT6O
50hz
--
15
khz
+-
3dB
60w
170
ohms
4
1mv
300mv
-76d8
100r0v
8 ohms
0.270
3OOmv
CH1
6 zones
AT3O
30w
333
ohms
4
lmv
3Oomv
-76d8
l0o/70v
8 ohms
0.2%
30omv
CHI
4 zones
ATI20
120W
80 ohms
4
lmv
3O0mv
-76dB
100tr0v
$S{ ehms
0.4%
3OOmv
CHI
6
zones
UDIO
TELEX
COMMLINICATIONS
PTY LTD
MANUFACTURED
IN AUSTRALIA
