AudioArts Engineering R-60 - Page 9

Page 3 - 12
R-60 / Nov 1994R-60 / Nov 1994
R-60 / Nov 1994R-60 / Nov 1994
R-60 / Nov 1994
CC
CC
C
ONSOLEONSOLE
ONSOLEONSOLE
ONSOLE
L L
L L
L
OGICOGIC
OGICOGIC
OGIC
& I/O C & I/O C
& I/O C & I/O C
& I/O C
ONNECTIONSONNECTIONS
ONNECTIONSONNECTIONS
ONNECTIONS
Program/Audition OutProgram/Audition Out
Program/Audition OutProgram/Audition Out
Program/Audition Out
(CT15, R-60 Mother Board load sheet dwg)
Pin 1 - LEFT PROGRAM OUTPUT, SHIELD
Pin 2 - LEFT PROGRAM OUTPUT, LOW
Pin 3 - LEFT PROGRAM OUTPUT, HIGH
Pin 4 - RIGHT PROGRAM OUTPUT, SHIELD
Pin 5 - RIGHT PROGRAM OUTPUT, LOW
Pin 6 - RIGHT PROGRAM OUTPUT, HIGH
Pin 7 - LEFT AUDITION OUTPUT, SHIELD
Pin 8 - LEFT AUDITION OUTPUT, LOW
Pin 9 - LEFT AUDITION OUTPUT, HIGH
Pin 10 - RIGHT AUDITION OUTPUT, SHIELD
Pin 11 - RIGHT AUDITION OUTPUT, LOW
Pin 12 - RIGHT AUDITION OUTPUT, HIGH
Control RoomControl Room
Control RoomControl Room
Control Room
(CT16, R-60 Mother Board load sheet dwg)
Pin 1 - LEFT CONTROL ROOM OUTPUT, SHIELD
Pin 2 - LEFT CONTROL ROOM OUTPUT, LOW
Pin 3 - LEFT CONTROL ROOM OUTPUT, HIGH
Pin 4 - RIGHT CONTROL ROOM OUTPUT, SHIELD
Pin 5 - RIGHT CONTROL ROOM OUTPUT, LOW
Pin 6 - RIGHT CONTROL ROOM OUTPUT, HIGH
Pin 7 - LEFT HEADPHONE OUTPUT, SHIELD
Pin 8 - LEFT HEADPHONE OUTPUT, LOW
Pin 9 - LEFT HEADPHONE OUTPUT, HIGH
Pin 10 - RIGHT HEADPHONE OUTPUT, SHIELD
Pin 11 - RIGHT HEADPHONE OUTPUT, LOW
Pin 12 - RIGHT HEADPHONE OUTPUT, HIGH
Control RoomControl Room
Control RoomControl Room
Control Room
(CT34, R-60 Mother Board load sheet dwg)
Pin 1 - CUE SPEAKER OUTPUT, LOW, SHIELD
Pin 2 - CUE SPEAKER OUTPUT, LOW
Pin 3 - CUE SPEAKER OUTPUT, HIGH
Pin 4 - CUE OUTPUT, SHIELD
Pin 5 - CUE OUTPUT, LOW
Pin 6 - CUE OUTPUT, HIGH
Pin 7 - AUDIO COMMON
Pin 8 - ON AIR RELAY, COMMON
Pin 9 - ON AIR RELAY, NORMALLY OPEN
Pin 10 - AUDIO COMMON
Pin 11 - SPARE
Pin 12 - SPARE
CC
CC
C
ONSOLEONSOLE
ONSOLEONSOLE
ONSOLE
L L
L L
L
OGICOGIC
OGICOGIC
OGIC
& I/O C & I/O C
& I/O C & I/O C
& I/O C
ONNECTIONSONNECTIONS
ONNECTIONSONNECTIONS
ONNECTIONS

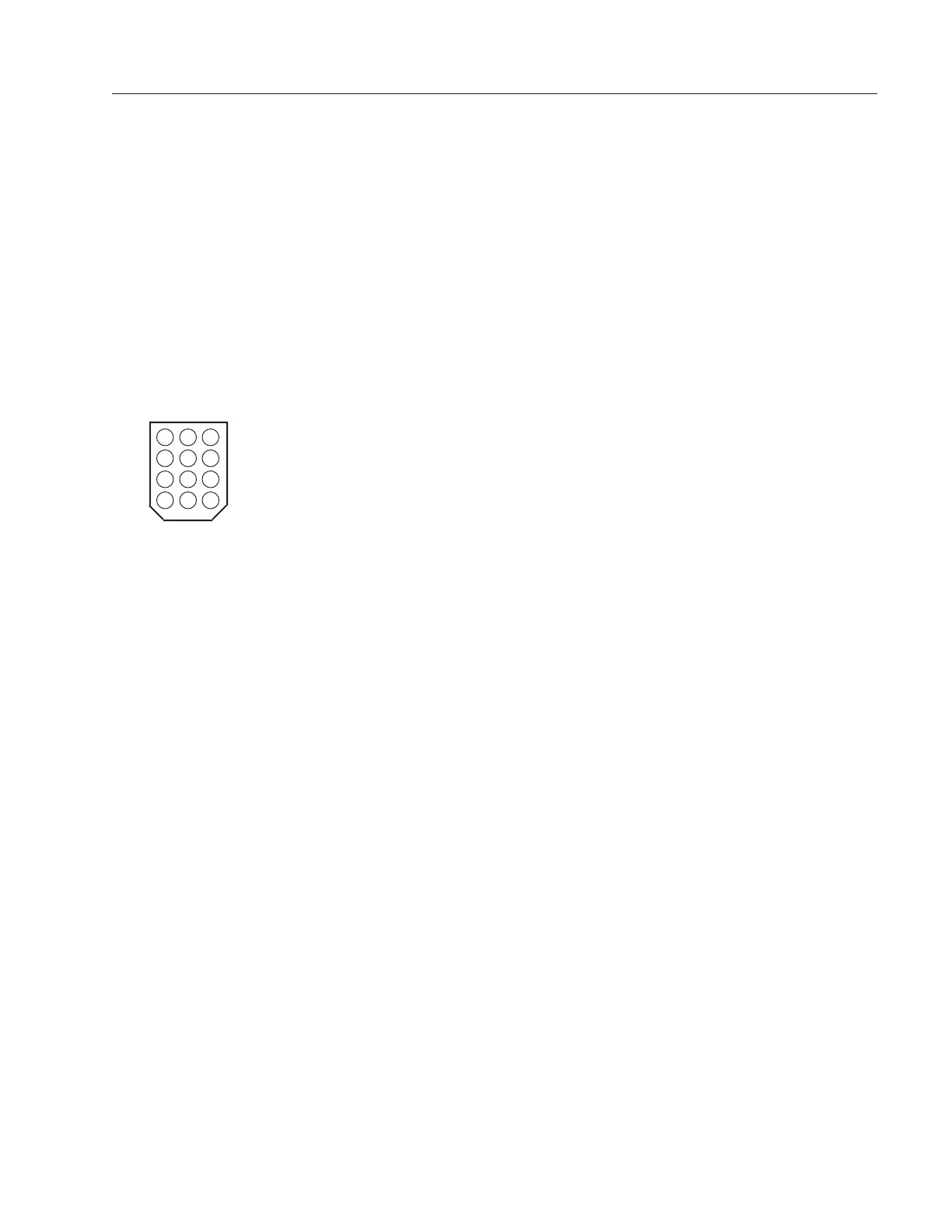

Key diagram showing back of
typical 12-pin I/O connector
plug, with pin numbers oriented
as they would be seen while
wiring. Beveled corners
correspond to PCB mounted
mating sockets.
5 46
8 79
11 1012
2 13
PGM, AUD, MONO, CR and
STUDIO outputs are electroni-
cally balanced. If feeding an
unbalanced load, use HIGH and
SHIELD. Do not short LOW to
SHIELD permanently
CUE OUTPUT is a line level
output and will not drive a
speaker directly.
R-60 / July 1997
Page 3 - 11
