Audiovox AMP-772CS - Wiring Connections; Power Wiring Connections; Input Wiring from Stereo

-3-

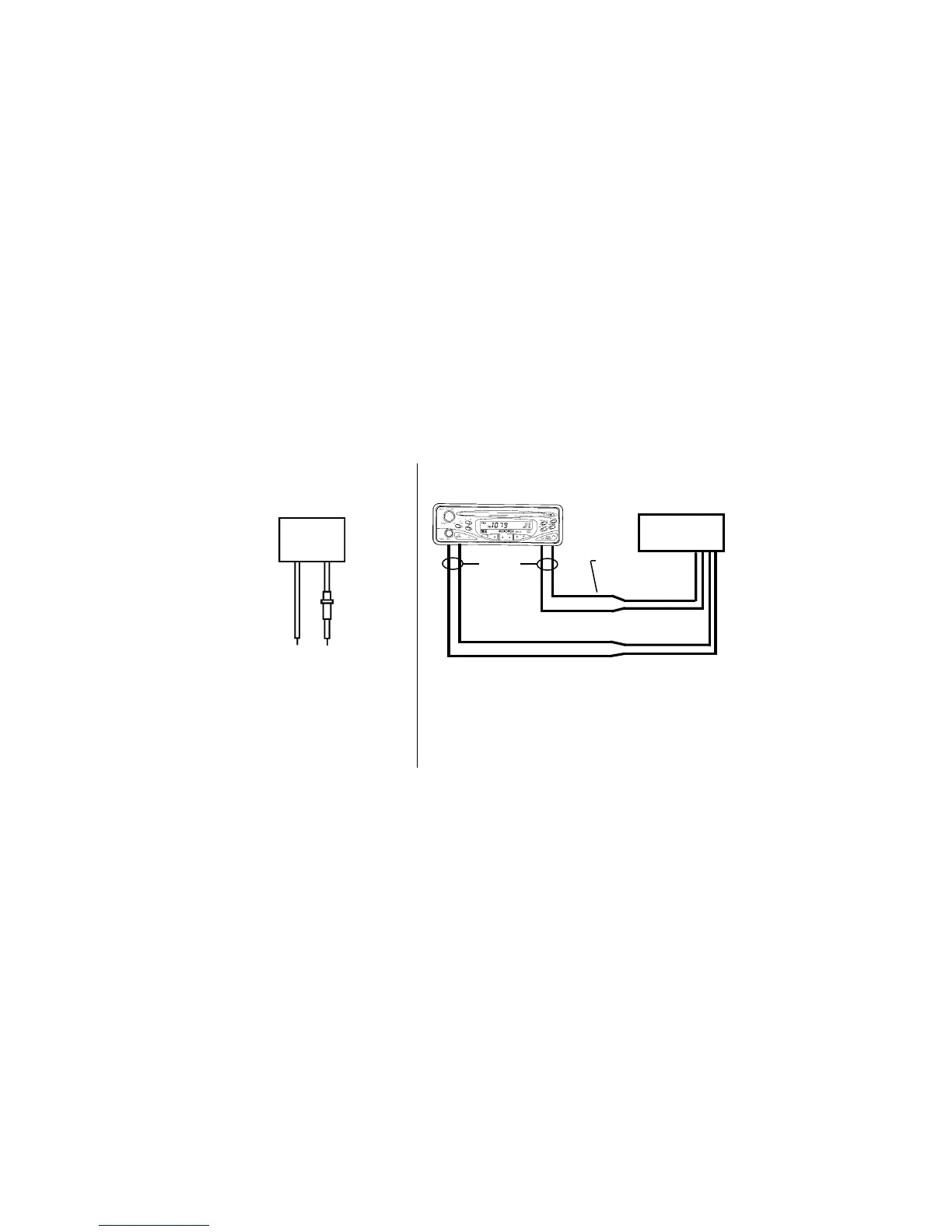

EXISTING CAR STEREO
(COMMON-GROUND OUTPUT TYPE)
SPEAKER
OUTPUTS OF
CAR STEREO
RIGHT +
RIGHT -
LEFT +
LEFT -


GRA Y
w/WHITE STRIPE
GRA Y
BROWN
w/WHITE STRIPE
BROWN
SPLICE
POWER WIRING OF
EQUALIZER-AMPLIFIER
BLACK
CONNECT TO
SWITCHED
+12 SOURCE
CONNECT TO
GROUNDED
METAL PART OF
CAR
ORANGE
w/WHITE STRIPE
INPUT WIRING TO AMP-772
NOTE: If your car stereo has four speaker outputs (left front, left rear, right
front and right rear) you can usually combine the front output wires
with the rear output wires to make a single output (example: Com-
bine Left Front + with Left Rear + to make a single LEFT + output).
CAUTION: Before doing this, check your radio's manual since some
outputs cannot be combined. In this case, only use the front or
rear outputs alone.


AMP-772
AMP-772
