128-6832
4 of 16

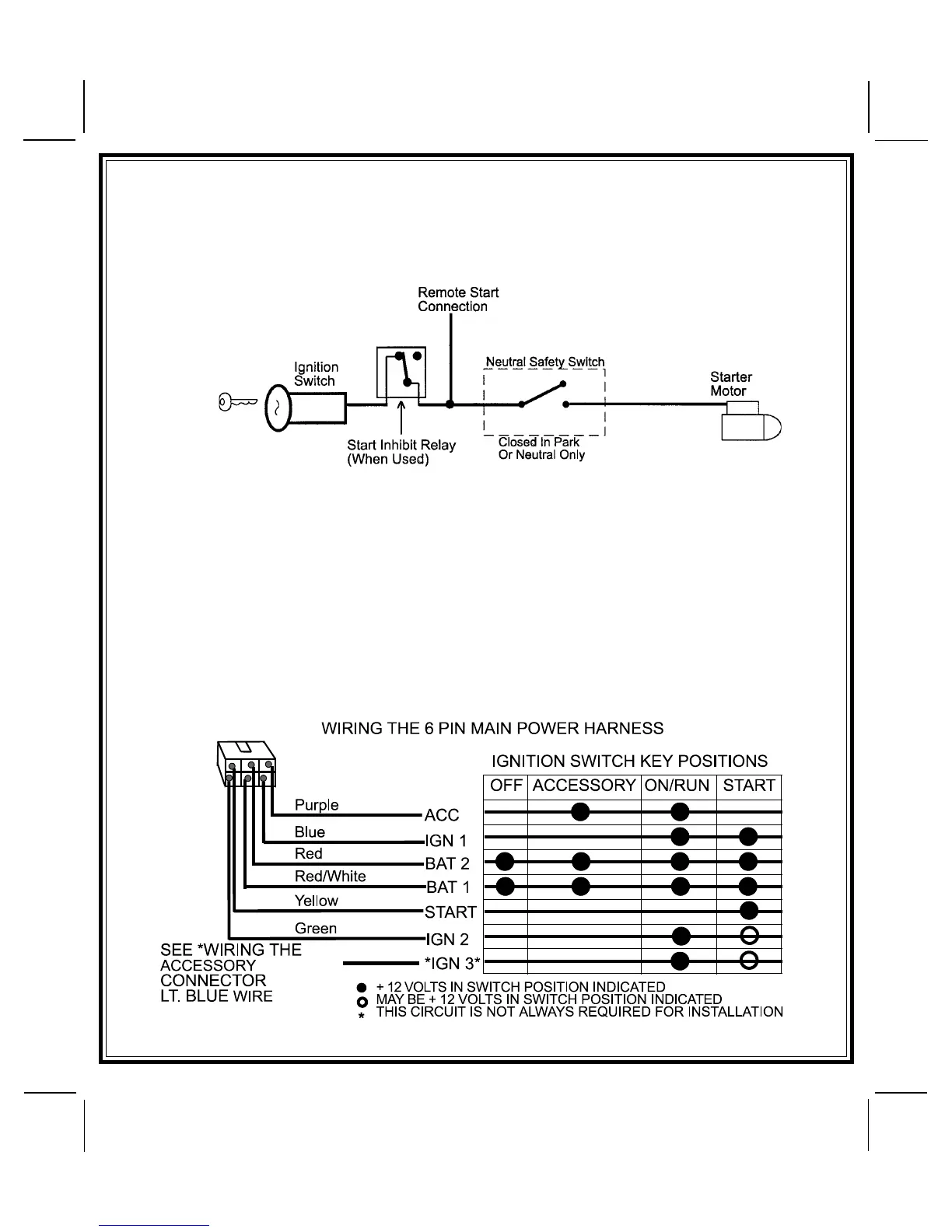

NOTE: This wire must be connected to the vehicle side of the starter cut relay (when used). For the electrical neutral
switch configuration, this connection must be made between the starter inhibit relay, (when used) and the
neutral safety switch as shown in the following diagram.
Failure to connect this wire to the ignition switch side of the neutral safety switch can result in personal injury and
property damage.
SEE NEUTRAL START SAFETY TEST FOR FURTHER DETAILS.
BLUE WIRE: Ignition 1 Output
Connect this wire to the ignition 1 wire from the ignition switch. This wire will show +12 volts when the ignition key
is turned to the to the "ON" or "RUN" and the "START" or CRANK" positions and will have 0 volts when the key is turned
to the "OFF" and "ACCESSORY" positions.
For Diesel Applications, this wire must be connected to the ignition circuit that powers the glow plugs if the vehicle
requires glow plug pre-heating.
GREEN WIRE: Ignition 2 Output
Connect this wire to the ignition 2 wire from the ignition switch. This wire will show + 12 volts when the ignition key
is turned to the "ON" or "RUN" position and is some cases the "START" or CRANK" position. This wire will show 0
volts when the key is turned to the "OFF" and "ACCESSORY" positions.
NOTE: See programming information concerning this wire to allow output during the "START" mode.
4
