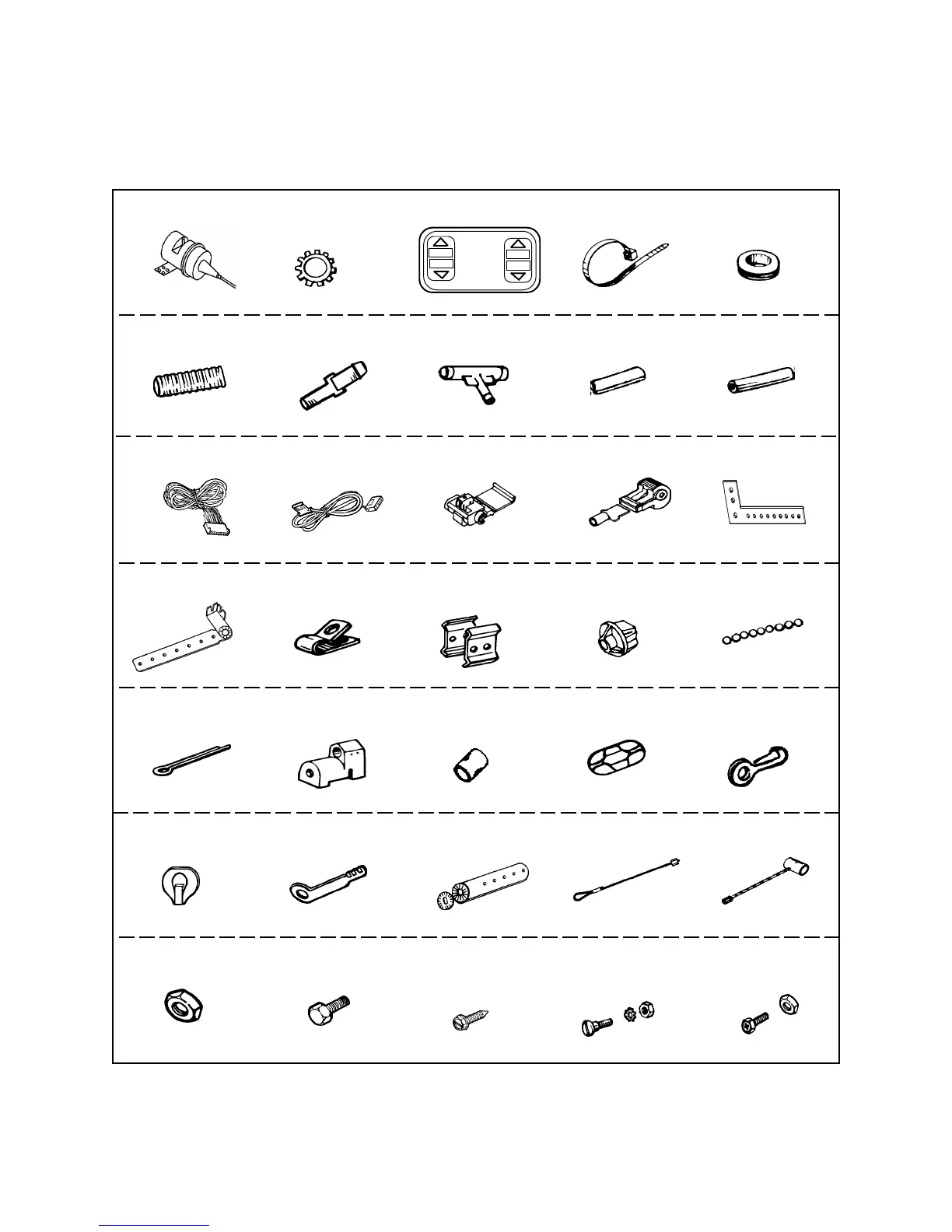

Audiovox CCS-100 - 1 Cruise Control Installation; Parts List

CRUISE
CONTROL
M6 x 5/8" long
hex head bolt
( 3 )
Servo Assembly
( 1 )
Tie Straps
( 10 )
1/2" rubber bulkhead
grommet
( 1 )
- 1 - - 4 - - 5 -
Convoluted tubing
( 1 )
Vacuum hose reducing
nipple
( 1 )
Assorted Vacuum
T - Connectors
Vacuum Hose - Short
( 1 )
Vacuum Hose - Long
( 1 )
- 6 - - 7 - - 8 - - 9 - - 10 -
Main Wiring Harness
( 1 )
Fused wire with switch
connector
( 1 )
Scotch lock connectors
( 4 )
Female T- tap terminal
( 1 )
“L” Bracket
( 1 )
- 11 - - 12 - - 13 - - 14 - - 15 -
Adjustable cable
mounting bracket assy.
( 1 )
Assorted tube clamps
(4)
Parallel throttle cable
clamps
( 1 )
GM style threaded
snap in cable anchor
( 1 )
Bead chain
( 1 )
- 16 - - 17 - - 18 - - 19 - - 20 -
Cotter pin
( 1 )
Ford snap on throttle
adaptor
( 1 )
Bead chain coupling
sleeves
( 2 )
Bead chain coupling
( 2 )
Bead chain eyelet
connector
( 1 )
- 21 - - 22 -
- 23 -
- 24 -
- 25 -
3 bead connector
( 1 )
GM throttle clip
( 1 )
Throttle mounting
bracket with locking
washer
( 1 )
Throttle wire loop
( 1 )
Barrel wire adaptor
( 1 )
- 26 - - 27 - - 28 - - 29 - - 30 -
M6 hex nuts
( 3 )
M6 x 3/4" long hex
washer head sheet
metal screw
( 4 )
Slotted head shoulder
bolt with lock washer
and hex nut
( 1 )
M5 Phillips hex head
bolt with hex nut
( 1 )
- 35 -- 34 -- 33 -- 32 -- 31 -
Dash Mounted control switch
( 1 )
PARTS LIST
- 2 -
M6 external tooth
star washer
( 3 )
SET
RES
AUDIOVOX
CST
ACC
OFF
- 3 -
ON
