Audiovox D1809 User Manual

9
E. Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 2)

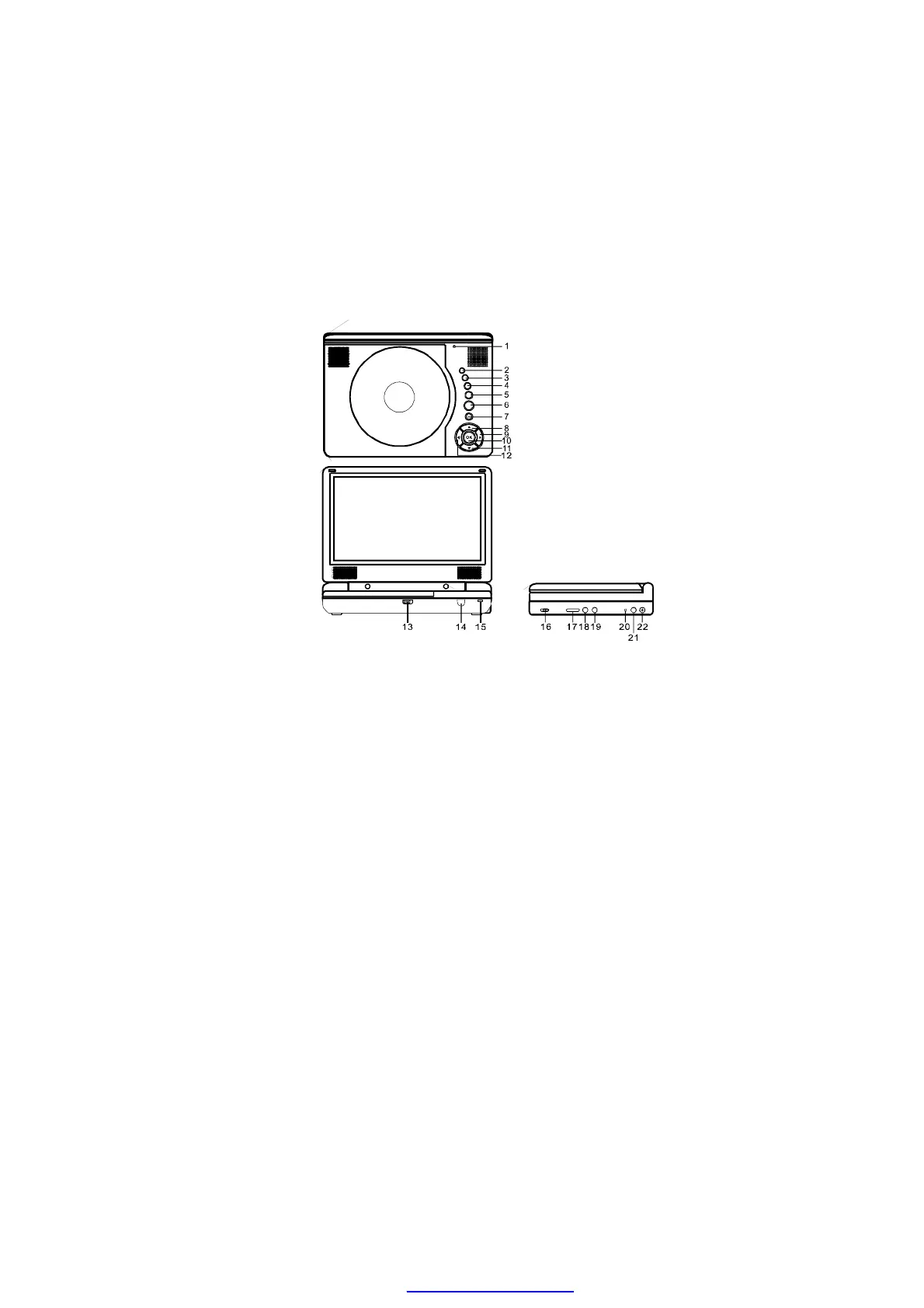

Figure 2
1) LCD Panel Shut Off Switch
2) Wide Screen Button
3) Stop Button
4) Previous Button
5) Next Button
6) Play/Pause Button
7) Menu Button
8) Up Button
9) Right Button
10) OK Button
11) Down Button
12) Left Button
13) Open Door Switch
14) IR Sensor
15) Power LED
16) Power on/off Switch
17) Volume Control
18) Headphone 1*
19) Headphone 2
20) Charge Indicator
21) AV Out Jack
22) DC 9-12V Input Jack
*Using headphone jack 1 will disable the internal speakers.
PDF created with pdfFactory Pro trial version www.pdffactory.com

Audiovox D1809 Specifications

General

Brand	Audiovox
Model	D1809
Category	Portable DVD Player
Language	English
