The AUGA VarioPress Pro E is a pressure filter system designed for ponds, integrating UV-C technology for mechanical and biological filtration. It is suitable for water temperatures between +4 °C and +35 °C. The filter is exclusively intended for private use, for cleaning garden ponds, with or without fish. The operation of the pressure filter requires a pump that pumps pond water through the pressure filter.

Function Description:

The VarioPress Pro E operates as a multi-stage filtration system:

Inlet: Pond water is pumped into the filter.
Vortex: Suspended particles and sludge are separated by centrifugal and gravity force.
Mechanical Filtration: Dirt particles are captured on the outside of the filter foam before the water continues on to the entire filter.
Biological Treatment: Microorganisms develop in the open pores of the filter foam (D1) and bio-balls (D2) or bio-cell (D3). These microorganisms convert ammonia to nitrate via nitrification in low-flow zones (yellow foam) and convert nitrate to nitrogen (denitrification) in high-flow zones (blue foam).
Biological Cleaning: Bacteria develop on bio-balls (D2) or bio-cell (D3).
UV-C Irradiation: Water is exposed to ultraviolet radiation from the UV-C lamp. This kills floating algae, germs, and bacteria, which can cause the pond water to become cloudy.
Outlet: Clean water is returned to the pond or watercourse.

Important Technical Specifications:

The VarioPress Pro E series offers various models with different capacities:

VarioPress Pro E-15:
- Voltage/Hz: 230/50
- UV-C: 24 W
- Motor: 40 W
- Max. pressure: 0.3 Bar
- Flow rate (max.): 9 m³/h
- Inlet (pump): Ø 32-40 mm
- Outlet (pond): Ø 40 mm
- Outlet (waste): Ø 40 mm
VarioPress Pro E-25:
- Voltage/Hz: 230/50
- UV-C: 36 W
- Motor: 40 W
- Max. pressure: 0.3 Bar
- Flow rate (max.): 11 m³/h
- Inlet (pump): Ø 40-50 mm
- Outlet (pond): Ø 50 mm
- Outlet (waste): Ø 50 mm
VarioPress Pro E-35:
- Voltage/Hz: 230/50
- UV-C: 40 W
- Motor: 40 W
- Max. pressure: 0.3 Bar
- Flow rate (max.): 12 m³/h
- Inlet (pump): Ø 40-50 mm
- Outlet (pond): Ø 50 mm
- Outlet (waste): Ø 50 mm
VarioPress Pro E-55:
- Voltage/Hz: 230/50
- UV-C: 55 W
- Motor: 40 W
- Max. pressure: 0.3 Bar
- Flow rate (max.): 13 m³/h
- Inlet (pump): Ø 40-50 mm
- Outlet (pond): Ø 50-63 mm
- Outlet (waste): Ø 50-63 mm
VarioPress Pro E-75:
- Voltage/Hz: 230/50
- UV-C: 55 W
- Motor: 40 W
- Max. pressure: 0.3 Bar
- Flow rate (max.): 15 m³/h
- Inlet (pump): Ø 40-50 mm
- Outlet (pond): Ø 50-63 mm
- Outlet (waste): Ø 50-63 mm

The maximum operating pressure for all models is 0.3 Bar. The filter is designed to be partially buried, with the top of the filter housing remaining above ground. The UV-C lamp is designed for approximately 7000 operating hours.

Usage Features:

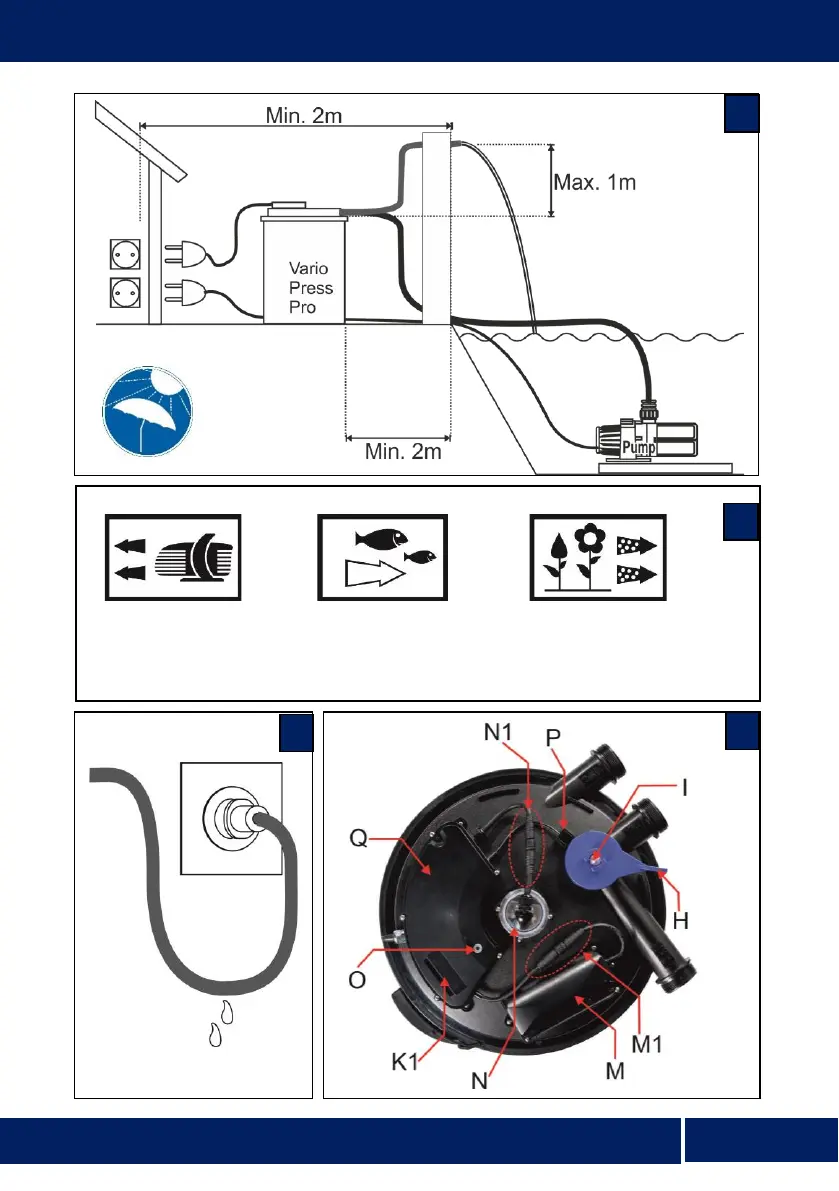

Installation: The filter should be placed on a flat, horizontal surface, ensuring it is not exposed to direct sunlight. The maximum height difference between the filter and the pond is 1 meter. The filter must be connected to a pump that can handle the specified flow rates and pressure.
Connecting Hoses: Transparent hoses for VarioPress Pro E-25, E-35, E-55, and E-70 models are connected using PVC fittings and glue. For VarioPress Pro E-15, flexible couplings are used. The maximum length for hoses is 10 meters.
Operation: The filter should always be filled with water and sufficient water flow through the pressure filter must be ensured before switching on the UV-C lamp. The UV-C lamp should only be switched on when it is completely filled with water.
UV-C Timer Switch (K): An integrated UV-C timer switch allows for setting the operating hours. The UV-C lamp operates 24/7 year-round in winter, or can be turned off. The timer switch can be set to 0 (UV-C lamp off), 12 (UV-C lamp on for 12 hours, off for 12 hours), or 24 (UV-C lamp on for 24 hours). A red indicator light (J) on the control window shows the UV-C lamp is working.
Safety: Always disconnect the pump and filter from the mains before any work. UV-C light is harmful to skin and eyes. Never look directly into the UV-C lamp.
Winter Period: In case of frost, the pressure filter must be dismantled and stored frost-free. Empty the pressure filter in autumn and store it frost-free or prevent the pressure filter from filling with water.

Maintenance Features:

Filter Cleaning (Rinsing): Regular flushing of the pressure filter is crucial. A dirty pressure filter can cause overpressure, leading to leakage and damage.
- The filter foam (9) should be cleaned at least every week.
- Turn off the pump and unplug it from the electrical outlet.
- Turn the backwash lever (H) to the "Clean" position.
- Open the return outlet (G) and the drain outlet (F).
- The cleaning wringer (L) is rotated to clean the sponge. During this rinse (2-3 minutes), an intermittent beep tone will be heard.
- Turn the pump back on by plugging it in. The dirty water will flow away through the waste water drain.
- At the end of the rinse, a constant beep tone indicates the rinse is over and the filter can be returned to filter position.
- Turn off the pump and unplug it.
- Turn off the pump by unplugging it from the outlet.
- Turn the backwash lever (H) to the "Filter" position.
- The filter will close the drain outlet (H) and open the return outlet (G) to the pond.
- If the water (checked at point 6) is not clean, start again at point 3. It is important to increase flushing intervals.
- Turn the pump back on by plugging it in. The water will flow to the pond again.
- If necessary, refill the pond with clean tap water.
Filter Foam and Biomaterial Washing and Replacement:
- Disconnect all pipes (Fig. 6 - A, F and G) from the pressure filter.
- Remove the clamping ring (15) from the pressure filter (Fig.8 A-D).
- Slowly lift the cover with the quartz glass straight up from the pressure filter.
- Remove the filter cartridge with 2 hands from the tank (Fig.10).
- Place the filter cartridge face up on a clean, flat and firm surface.
- Turn the UV-C tube cap (11) counterclockwise and remove it from the UV-C tube (24).
- Remove the screw (27) plate (26) and lower bearing (25) from the UV-C rod (24).
- Remove the black cap (10).
- Remove the filter foam rings (9) from the UV-C tube (Pay close attention to how they were mounted).
- Clean the filter foam with clean tap or pond water.
- If the filter foams are no longer cleanable, or have fallen out of shape, they must be replaced.
- Replace the filter foam on the plastic frame.
- Place the UV-C tube, start with the foam ring which is fitted with the gear wheel.
- Place the black cap (10) back on the UV-C tube, make sure the pivot rod (24) and the lower bearing (25) plate (26) and screw (27).
- Put the UV-C tube cap (11) back on the UV-C tube and fix it by turning the UV-C tube cap (11) clockwise.
- Remove the basket(s) (16A,17A,18A,19A) from the tank (17/19) and rinse with clean tap or pond water.
- Replace the basket(s) (16A,17A,18A,19A) back into the tank (17/19).
- Place the o-ring (16) back on the tank (Fig.11).
- Using 2 hands, place the filter cartridge straight back into the tank, note the FIX point (Fig.10 and 12).
- Replace the cover with the quartz glass slowly, straight. Pay attention to the FIX point (Fig.9 and 12). Please note that the quartz glass is fragile.
- Replace and clamp the clamping ring (15) (Fig.8 E-H).
- Reconnect all pipes to the pressure filter (remember the seal (21)).
- Reinstall the supply hose/tube on connection (A).
- Reinstall the return hose/tube on connection (F).
- Reinstall the waste water hose/tube on connection (G).
- Operate the pump by plugging in the mains plug. Follow the instructions of the pump.
- If there is no leakage, the pressure filter can be put into operation by plugging in the mains plug.
Quartz Glass Cleaning:
- If the water turns green, clean the quartz glass (6) first.
- If the UV-C lamp (4) has burned 7000 hours or when the water turns green again, the UV-C lamp (4) must be replaced.
- Turn off the pump and pressure filter by unplugging the plugs.
- Disconnect all pipes (Fig. 6 - A, F and G) from the pressure filter.
- Remove the clamping ring (15) from the pressure filter (Fig.8 A-D).
- Slowly lift the cover with the quartz glass straight up from the pressure filter. Note that the quartz glass is fragile (Fig.9).
- Clean and dry the quartz glass (6) with clean tap or pond water and a soft clean cloth, avoid scratches.
- If the quartz glass (6) is damaged, it must be replaced. See: Replacing UV-C lamp and quartz glass on page 21.
- Replace the o-ring (16) on the tank (Fig.11).
- Replace the cover with the quartz glass slowly, standing upright. Pay attention to the FIX point (Fig.9 and 12). Please note that the quartz glass is fragile.
- Replace and clamp the clamping ring (15) (Fig.8 E-H).
- Reconnect all pipes to the pressure filter:
  - Reinstall the supply hose/tube on connection (A).
  - Reinstall the return hose/tube on connection (F).
  - Refit the waste water hose/tube to connection (G).
- Put the pump into operation by plugging in the mains plug. When doing so, observe the pump's instructions.
- If there is no leakage, the pressure filter can be put into operation by plugging in the mains plug.
Replacing UV-C Lamp:
- Turn off the pump and pressure filter by unplugging the plugs.
- Remove the 2 screws (41) from the cover cap (42).
- Remove the cover cap (42) from the lid (8).
- Unscrew the UV-C plug (N1).
- Turn the UV-C cap (43) counterclockwise until the arrow of the cap points to the open slot (Fig.13).
- Remove the UV-C cap (43) straight out of the quartz glass (6), paying attention to the seal (44) that is on top of the edge of the quartz glass (6).
- Remove the UV-C lamp (4) from the lamp holder in the UV-C cap (43).
- Replace the UV-C lamp (4) for a new lamp, hold the new UV-C lamp with a clean cloth.
- Pay attention to the type of UV-C lamp as indicated on the lamp or type plate. An incorrect UV-C lamp will fail and can also damage other components of the pressure filter. Place the old UV-C lamp with your chemical waste.
- Place the UV-C cap (43) with UV-C lamp (4) carefully, straight back into the quartz glass (6), paying attention to the seal (44) that is at the top of the edge of the quartz glass (6).
- Position the UV-C cap (43) with the arrow of the cap at the open lock and turn it clockwise until the arrow of the cap points to the closed lock (Fig.13).
- Screw the UV-C plug (N1) back together securely.
- Place the cover cap (42) on the cover (8).
- Tighten the 2 screws (41) of the cover cap (42) again.
- Put the pump into operation by plugging in the mains plug. Observe the instructions of the pump.
- When there is no leakage, the pressure filter can be put into operation by plugging in the mains plug.
Replacing Quartz Glass:
- Carefully take the quartz glass (6) straight out of the lid (8), paying attention to the seals (5 and 44).
- Before replacing the new quartz glass, we recommend sucking a little water out of the pressure filter using a pond suction device or siphoning. This prevents water from flowing out of the pressure filter when the new quartz glass is fitted.
- Remove the quartz glass (6) and the seals (5 and 44), making sure the seals (5 and 44) are in the right place.
- Place the new quartz glass (6) with the seals (5 and 44) carefully, straight back into the cover (8).
- Make sure the recess in the plastic part of the quartz glass (6) is in the right place (Fig.14).
- Screw the four screws (45) back into the quartz glass (6).
- Dry everything thoroughly if water has leaked onto the cover (8).
- Place the UV-C cover (43) with UV-C lamp (4) carefully, straight back into the quartz glass (6), paying attention to the seal (44) that is at the top of the edge of the quartz glass (6).
- Position the UV-C cap (43) with the arrow of the cap at the open lock and turn it clockwise until the arrow of the cap points to the closed lock (Fig.13).
- Screw the UV-C plug (N1) back together securely.
- Place the cover cap (42) on the cover (8).
- Tighten the 2 screws (41) of the cover cap (42) again.
- Put the pump into operation by plugging in the mains plug. Observe the instructions of the pump.
- If there is no leakage, the pressure filter can be put into operation by plugging in the mains plug.

Disposal and Storage of Waste:

Electrical appliances used in households should not be disposed of with normal household waste, but should be collected separately. It is your responsibility to ensure that the device is returned to a specially designated collection point and dismantled and processed in an environmentally friendly manner.

Warranty Conditions:

The pressure filter is guaranteed for 36 months from the date of purchase. Keep the receipt as proof of purchase. Damage to the pressure filter within the warranty period, caused by a production and/or material error, will be offered free of charge or a replacement product will be offered. UV-C lamp, quartz glass tube, filter materials, natural wear and tear, dry running, scale formation, insufficient maintenance, freezing, improper repairs and damage caused by improper use are not covered by the warranty claim. Changes to the pressure filter, as well as shortening the power cable or cutting the plug will void the warranty claim. Consequential damage caused by failure or improper use of the pressure filter is not the responsibility of the supplier. In the event of a warranty claim, please return the product including the warranty certificate and purchase receipt to the dealer.
