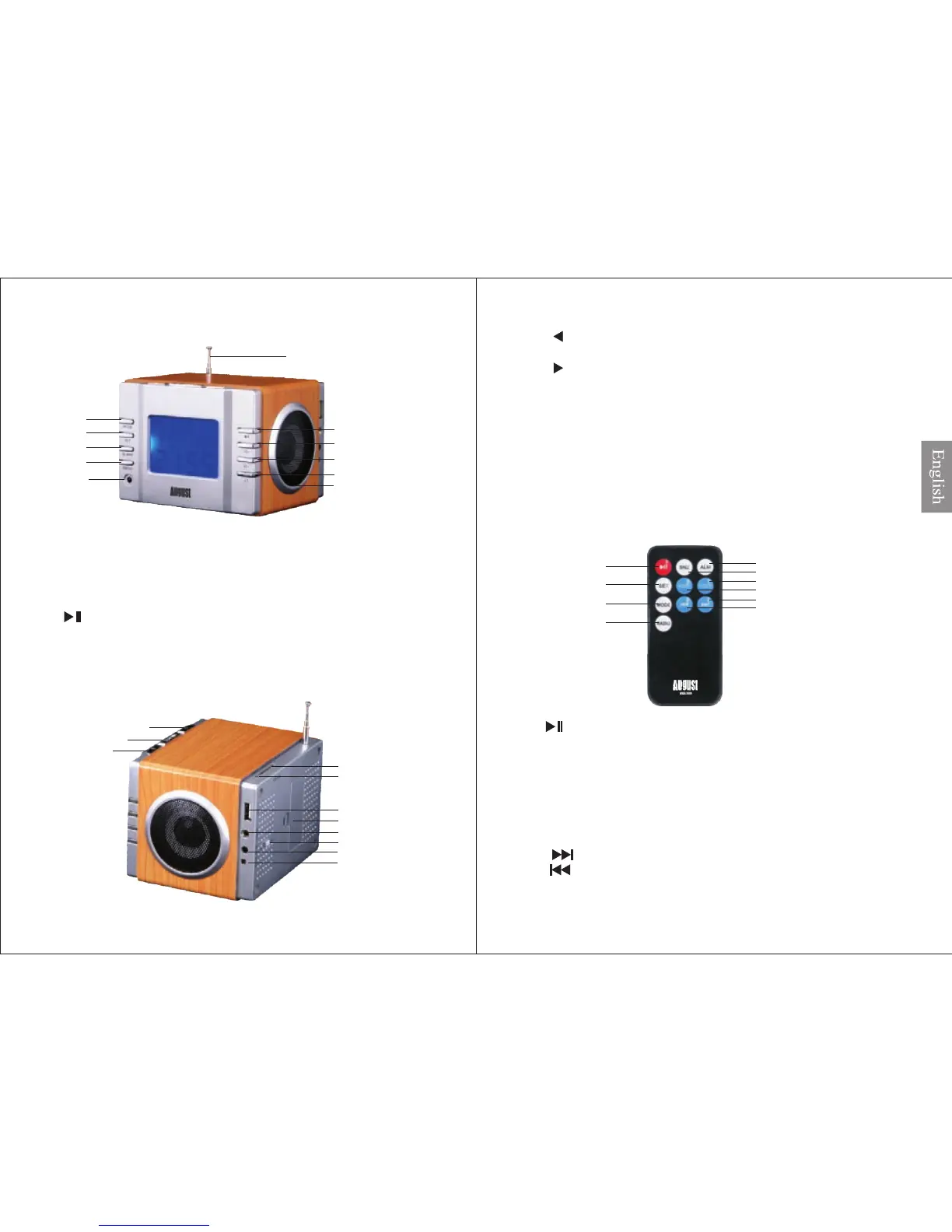

August MB300 - Part Names and Functions; Remote Control

-4- -5-
4. Part Names and Functions
1. MODE
2. SET
3. ALARM
4. RADIO
5. Remote control sensor
6.
7. VL+
8. VL-
9. LT
10.Speakers
11.Telescopic FM
antenna
1
2
3
4
5
6
7
8
9
10
11
Select mode
Set and confirm
Set alarm clock and sleep timer
Select radio mode
Play, pause and resume music playback
Increase volume and date/time setting
Decrease volume and date/time setting
Activate LCD back light
12
13
14
15
16
17
18
19
20
21
22
12. Previous
13. SNOOZE Snooze alarm
14. Next
15. Card reader
16. Power LED
17. USB port
18. AAA battery compartment
19. 3.5mm audio in
20. Power On/Off switch
21. DC 5V power in
22. For manufacturers use only
5. Remote Control
1.
2. SET
3. MODE
4. RADIO
5. ALARM
6. SNOOZE
7. VL+
8. VL-
9.
10.
1
2
3
4
5
7
9
6
8
10
Play/Pause
Set and confirm
Mode select
FM radio mode
Set alarm clock and sleep timer
Snooze alarm
Increase volume / time and date setting
Decrease volume / time and date setting
Next
Previous
