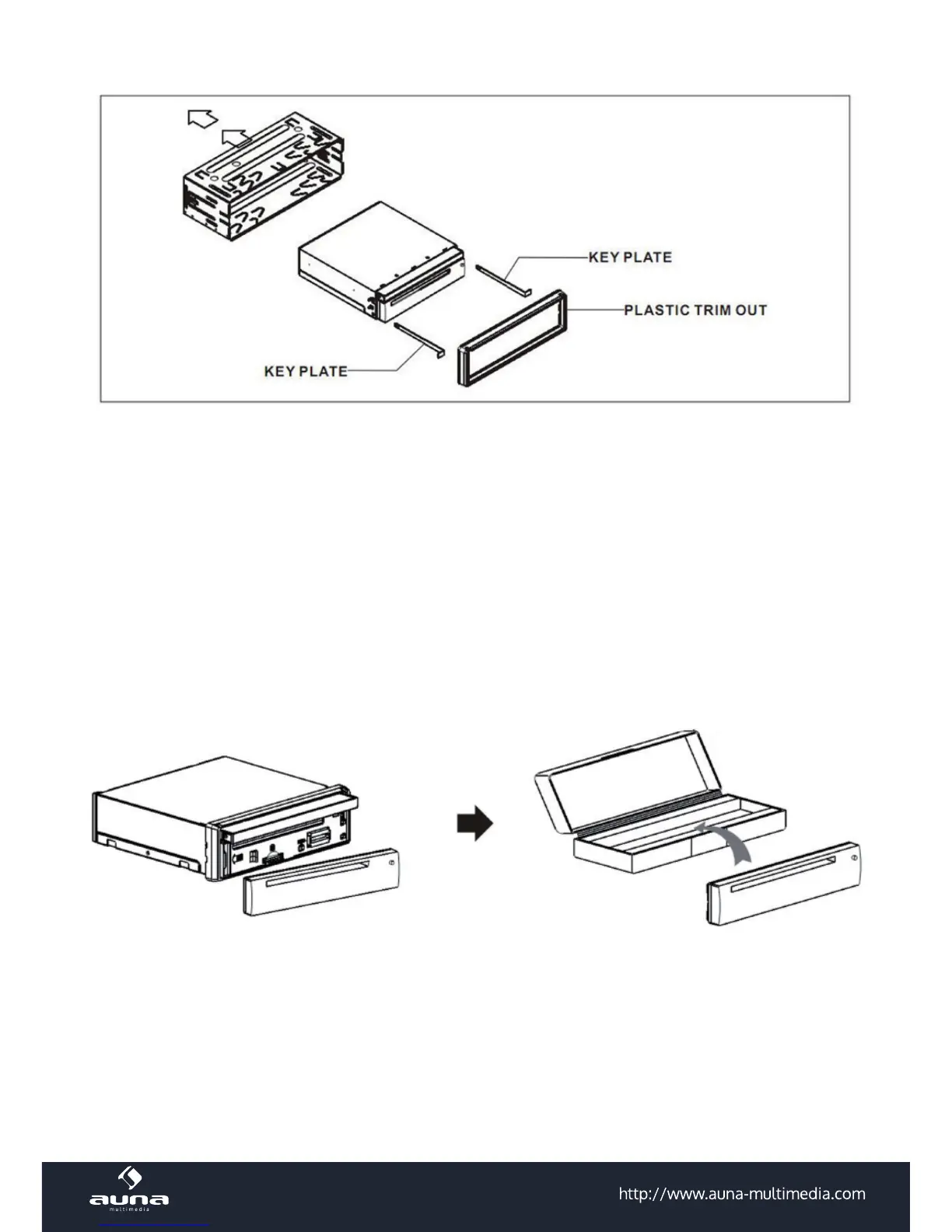

If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, rst remove the PLASTIC TRIM OUT of
the both sides away, then insert the two KEY PLATE into left and right side of chassis as above illustration.
How To Remove And Install The Front Panel
When detaching or attaching the control panel, be careful not to damage the connectors on the back of the
control panel and on the panel holder.
Detaching The Front Panel
Before detaching the control panel, be sure to turn o the power.
• Press the “REL” release button and the right hand side of front pane will release. First pull up the
panel as the direction indicated by the arrow (See (1)). And then taking out the panel as the direction
indicated by the arrow (See (2)).
• Put the front panel in the protective case for safe keeping.
To Next Page
