Power +12V
Before installing amplifiers, disconnect the negative cable from the battery to protect
your system from accidental damage.
Connect the positive power cable to the “+12V” terminal of the “POWER INPUT” block.

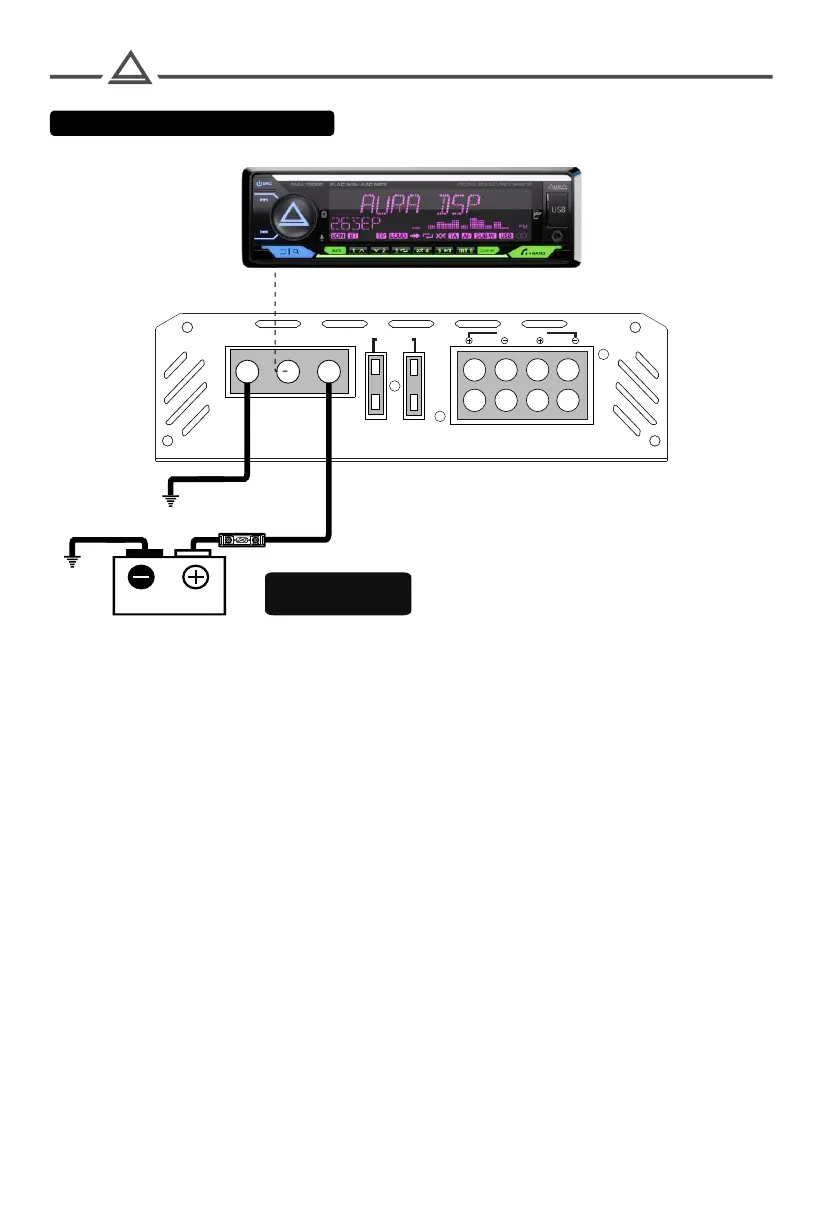

All AurA FIREBALL amplifiers must use external fuses as rated in the diagram above.
Connect one terminal of the fuse holder to the power cable going to the amplifier and
the other terminal to the positive terminal of the battery.
This will protect the system and the vehicle from a short circuit of the power cable to
the vehicle body.
Minus (GND)
The negative cable must be connected to the car body exclusively with a bolted
connection. The connection point must be cleaned of paint and reliably protected from
corrosion. Loose power connections can cause unstable operation and damage to the
amplifier. Connect the negative cable to the “ ” terminal of the “POWER INPUT” block.GND
Подключите минусовой кабель к терминалу “” колодки «POWER INPUT».
Control wire (REM)
POWER CONNECTION
The device turns on when +12 volts is supplied to the “REM”. terminal. This terminal is
low-current and does not require connection with a cable of the same cross-section as
the positive or negative one. Acceptable wire would be 18-16AWG (0.75-1.5mm2).
The standard color of the control cable is blue.
Íîìèíàë ïðåäîõðàíèòåëÿ:
FIREBALL-4.80 : 60 A
FIREBALL-4.100 : 80 A
2
F
GND REM
+12V
FUSE
BRIDGE
L R
R
POWER INPUT
SPEAKER OUTPUT
