Aura JGSTATW2W - System Overview; Configuration Options and Modes

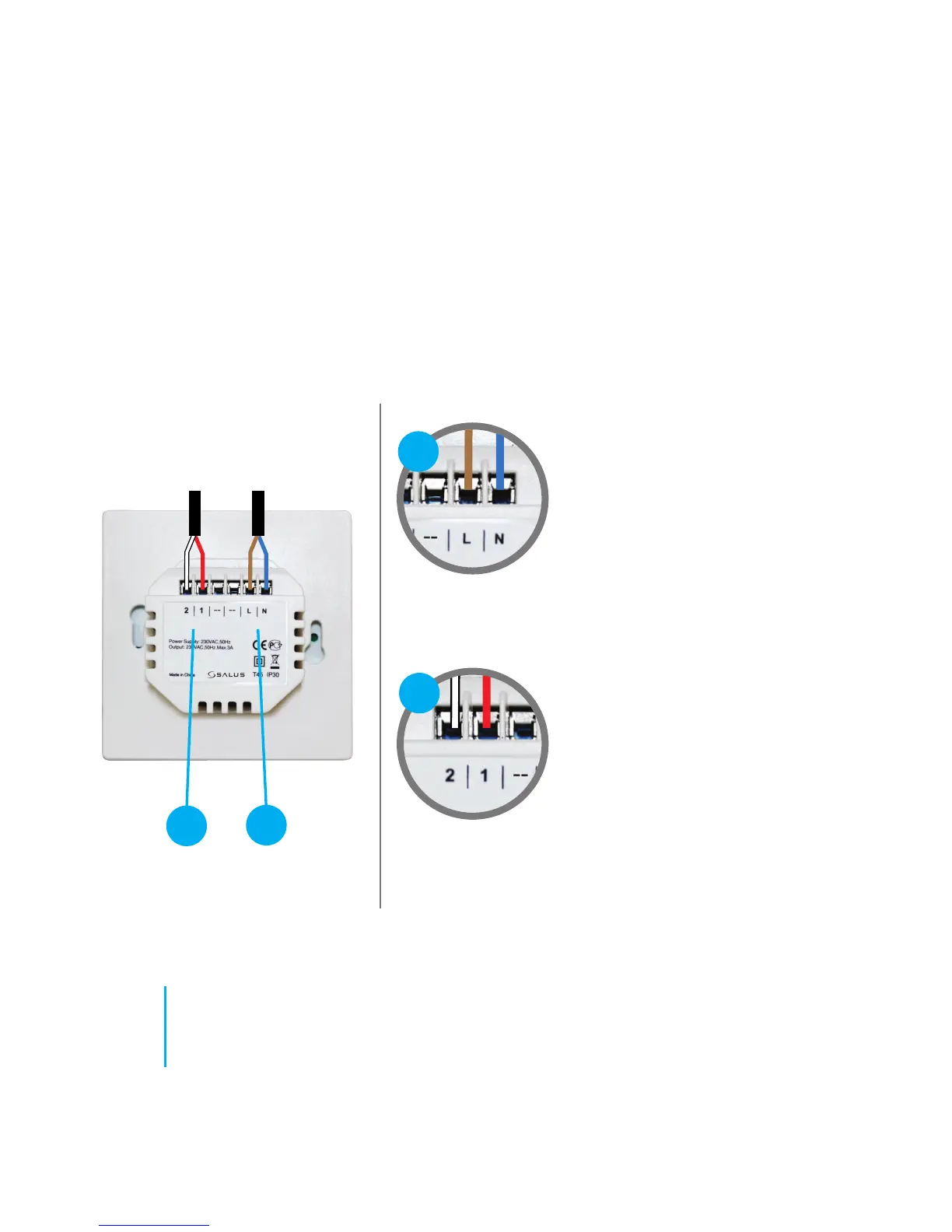

Rear of unit
Power Terminals 230v AC.
Used for supplying power to the
unit. 230v supply can be sourced
from the wiring centre or any
convenient 3amp fused supply.
Probe / Hot Water Cylinder
Terminals. Can be used for
external Air or Floor probe when
configured as thermostat. Can
also be used for Cylinder
thermostat connection when
configured as a Timer.
Understanding your terminal connections
Terminal connections (JGSTATW2) - 230v powered
2
1
1
2
