AURATON RTH - AURATON RTH Receiver Description; LED Signalling Legend

3
cable tie clamp
control connection terminal
(a terminal for fastening a two-core
cable of the heating or air conditioning
device to be controlled
button for deregistering
already paired devices
button for pairing devices
with the RTH receiver
LED indicating operation
of the device
cable tie clamp
power supply terminal
~230 VAC
legend
The LED light’s green – the output device is off (the contacts
COM and NC are closed).
The LED light’s red – the output device is on (the contacts COM
and NO are closed).
The LED flashes green – the RTH receiver awaits the device
to be paired.
The LED flashes red – the RTH receiver awaits the device
to be deregistered.
The LED flashes alternating red and green:
ALARM - the RTH receiver has lost connection with one of the
paired devices.
RESET - receiver deregisters all previously paired devices.
Legend - description of LED signalling
hole for fastening the receiver
to the wall with a screw
hole for fastening the receiver
to the wall with a screw

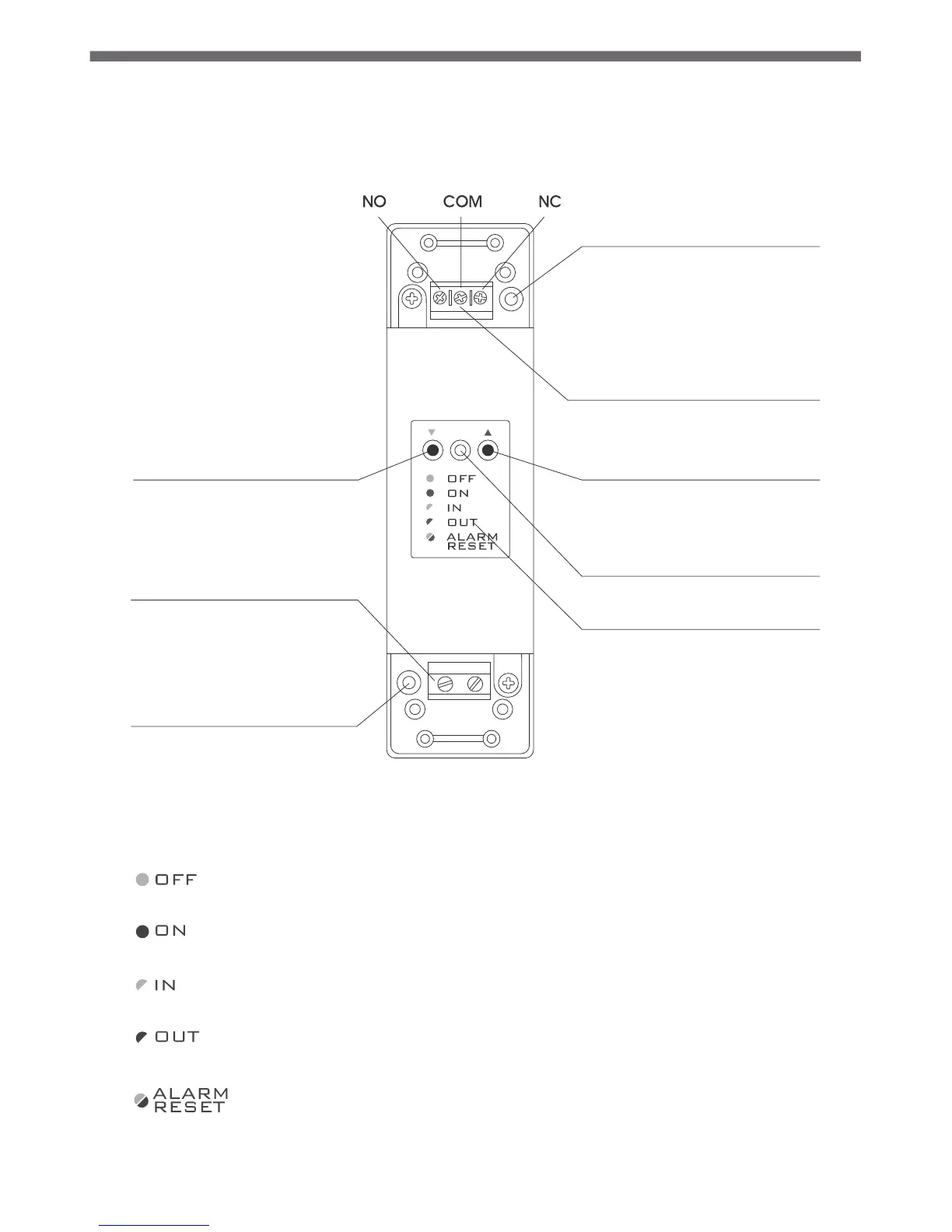

Description of the AURATON RTH receiver
The receiver is installed on the heating or air conditioning device and can
operate under the load of 16 A.
~230V AC
