RTH receiver operation
with heating device
8
After switching on the power supply the transmitter of the RTH AURATON
the receiver is always activated until it receives information from associated
devices.
Cooperation of receiver with AURATON T-1 regulator and/or
AURATON T-2 thermometer
Controlling the temperature in the receiver is based on two-state signal
algorithm (turn on /turn off) which makes use of one or two sensor
elements:
heating device
AURATON RTH

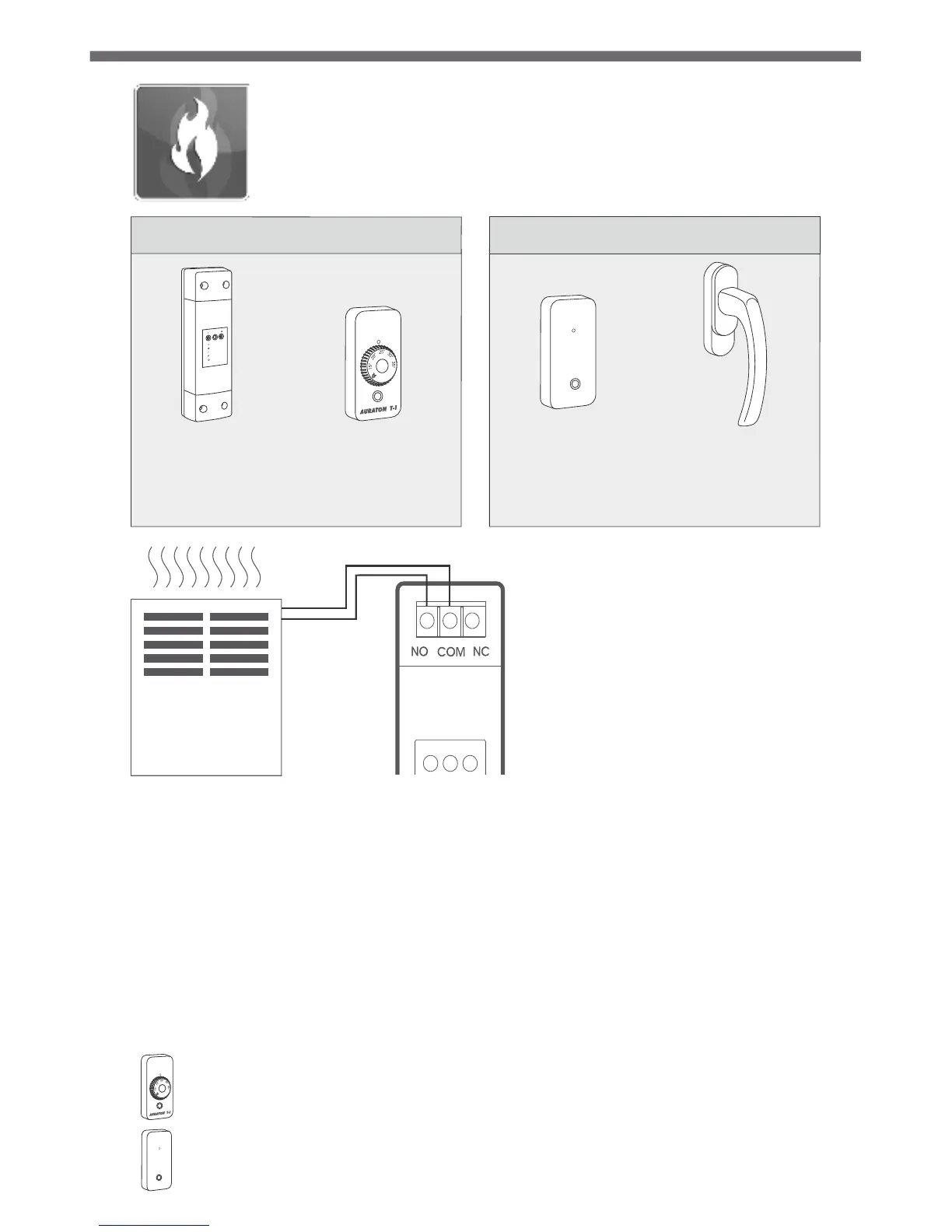

A simplified schematic
of connecting the AURATON RTH
receiver with the heating device
The T-1 controller enables setting the temperature and/or its
controlling.
The T-2 thermometer gives information about the current
temperature without the possibility of its manual change.
AURATON T-1
Wireless
temperature
(sold separately)
Basic configuration of devices
AURATON T
-2
AURATON T-2
Wireless thermometer
(sold separately)
AURATON H-1
Window handle
(sold separately)
AURATON RTH
Receiver connected
to the heating device
AURATON RTH
O
FF
ON
IN
OUT
ALARM
RESET
Additional system devices
AURATON T
-2
