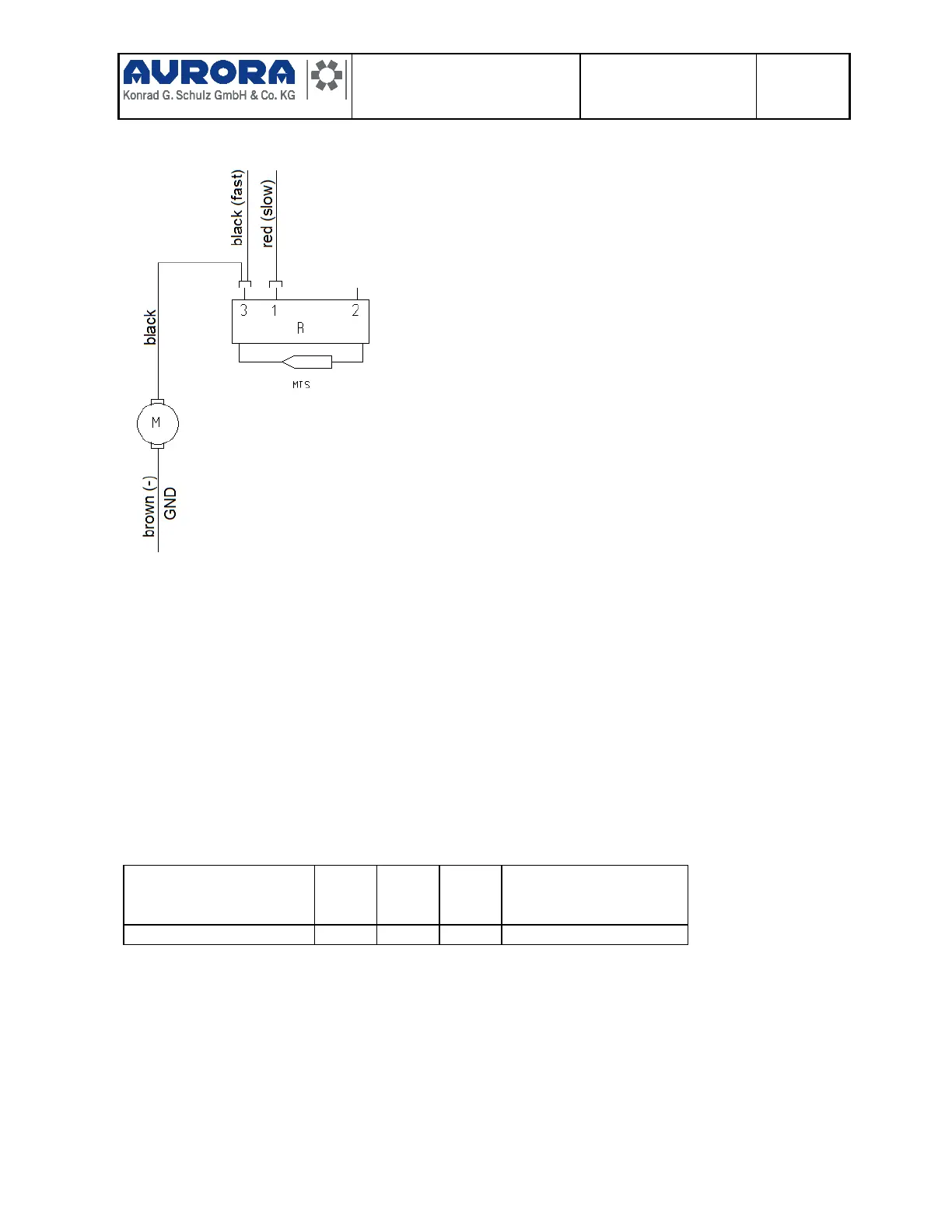

Connection sceme resistor:
View on plug please see drawing of the according version.
The warm air hoses are pushed over the heaters sockets (option).
It is essential to use appropriate hose clips for connecting the warm water hoses to the heat
exchanger with a tightening torque of approx. 3-3,5 Nm (if using AURORA-clips).
Check the system on leaks.
Check also the function of the fan unit and the air direction by switching on the blower (airflow
at the outlet nozzles or socket).
6 Technical data
Technical data for standard modells151-301/302-0000:
V
water
= 1000l/h
test voltage. 13 V / 26 V
L
P
[dB(A)] ±
±±
± 0,5
114 2,1 29 64
The technical data of the other versions are assimilable.
2-speed version:
12V:
Test result from 16.10.2006:
Test voltage 13V: [current + speed tolerance ±10%] at 23°C±5K, free blowing
speed 1 ca. 1,4A current consumption speed ca. 3665 1/min
speed 2 ca. 1,8A current consumption speed ca. 4470 1/min
Measurement under laboratory conditions
