Austroflamm Mo Duo - Electrical Connection Diagram; For Models with a Permanently Rotating Feeder Motor

25 english
9. Electrical connection diagram
Note: Repairs to your pellet stove must only be carried out by approved Austroflamm technicians.
9.1. For models with a permanently rotating feeder motor

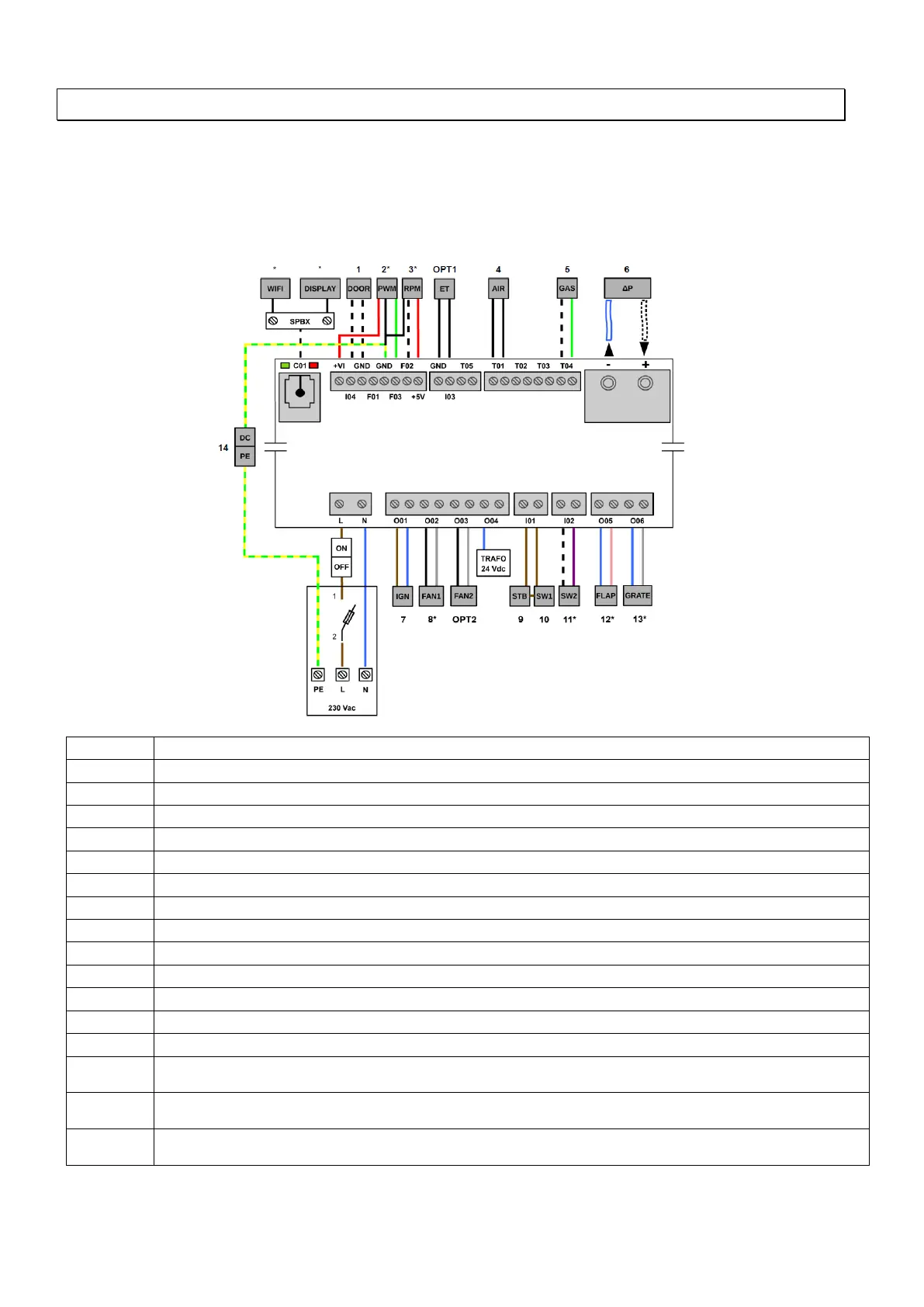

MAIN ELECTRIC DIAGRAM
1.
Door contact switch
2.
PWM to DC Converter
3.
RPM / HAL-IC
4.
Room temperature sensor
5.
Firebox temperature sensor
6.
Differential pressure measurement
7.
Ceramic ignition
8.
Combustion fan
9.
Safety temperature limiter
10.
Hopper lid safety switch
11.
Grate position switch
12.
Air flap motor
13.
Grate motor
14
Central grounding
OPT1
External thermostat
OPT2
Air distribution module
*
See additional detailed electric wiring diagram
