Important
Only the EVO Lite equipped with a four-axis gimbal supports rotate quick shot and
rotate hyperlapse shooting.
Only the EVO Lite+ supports aperture priority shooting mode.
16. Attitude Indicator
Display the current aircraft position, aircraft nose orientation, operator position, home point
position, and flight status parameters.
H 800m 34m/s: Vertical distance and flight speed between aircraft and home point.
D 10000m 34m/s: Horizontal distance and flight speed between aircraft and home point.

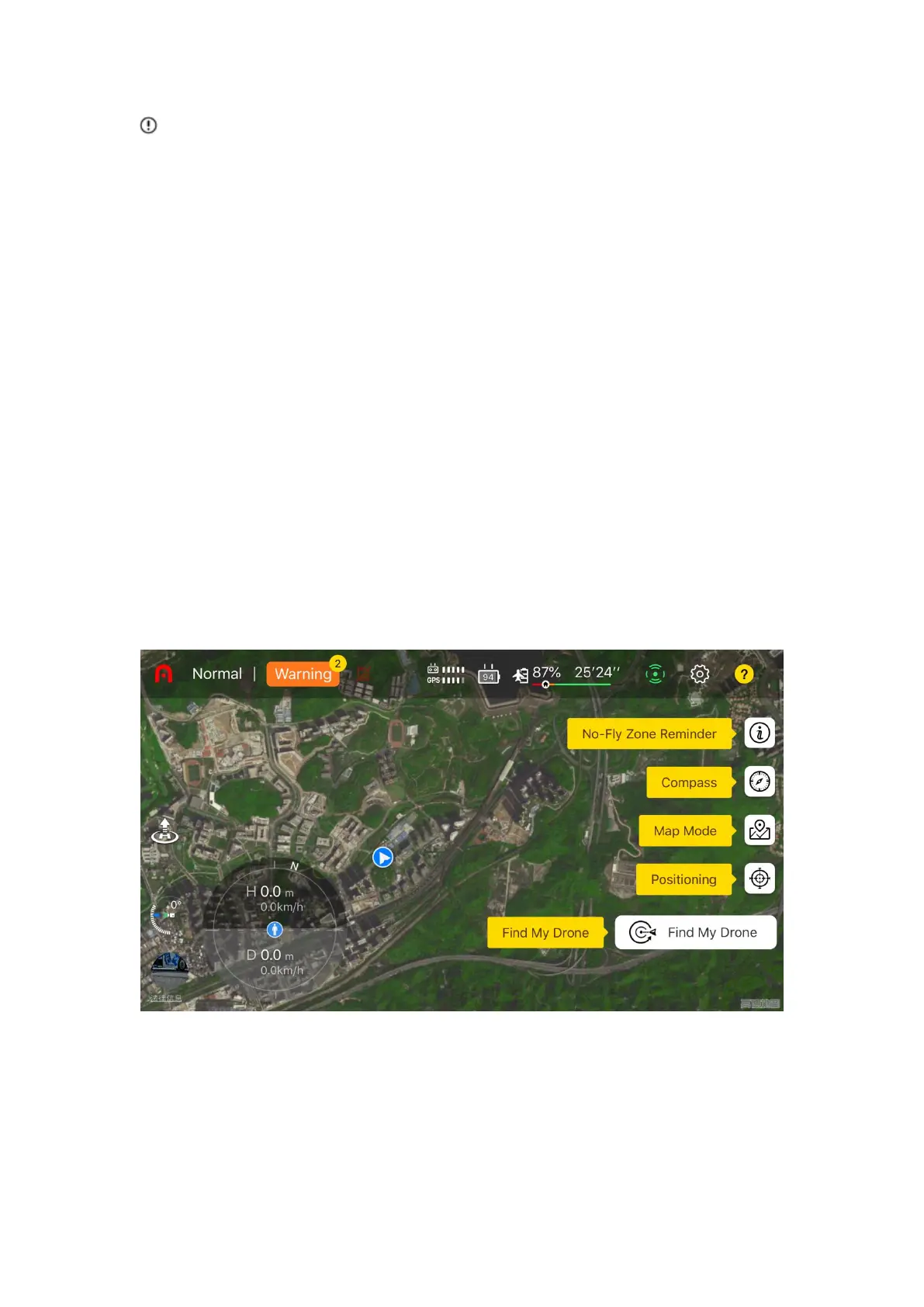

17. Map
Click once to indicate the small map. Click the small map again to switch from the image
transmission interface to the large map.
- No-fly zone reminder: view the information on no-fly zone: height limit zone, etc.
- Compass: see orientation.
- Map mode: select normal, satellite, or blend layer.
