What to do if Auto Meter Test Equipment says I need to connect the clamps when they are already connected?
First, ensure that both jaws of the clamps have a secure connection. Then, remove any corrosion from the battery post and the clamps. Note that if the battery is completely dead (voltage less than 1 volt), the Auto Meter Test Equipment won't detect it. In this case, charge the battery before testing.
Why does my Auto Meter Test Equipment give a Charge and Test result after charging the battery?
A Charge and Test result appears when the battery voltage isn't high enough for an accurate test. Check that your charger is functioning correctly. The battery might not be charging properly, which could lead to it being rated as a bad battery if you continue to receive the same result.
How to fix Auto Meter Test Equipment Control Module that will not make a Bluetooth connection to the Load Module?
To fix a Bluetooth connection issue between the Control Module and the Load Module: First, shut down the Control Module by holding the power button down for one second and then pressing the Power off button on the screen, confirm with OK. Next, on the Load Module, press the button for about two seconds to reset it; the LED will blink Red twice, go off briefly, then turn Red, and finally Green. After that, turn the Control Module back on by holding the power button for at least 5 seconds. When the Auto Meter application loads, the Modules should now automatically connect.
What to do if Auto Meter Test Equipment Control Module will not turn on?
If the Control Module doesn't turn on, hold the power button for at least 5 seconds. If it still doesn't turn on, place the Control Module into the Load Module. Plug the charger into the Load Module and check if the Load Module’s LED blinks red, indicating that the Control Module is charging. Let the Control Module charge for at least 3 hours.
How to recover a completely discharged Auto Meter Test Equipment tablet battery?
To recover a completely discharged tablet battery, dock the control module to the load module and connect the charger to the load module. Charge for at least 3 hours.
How to power on Auto Meter Test Equipment tablet while charging?
Press and hold the power button until the battery icon appears. While the battery icon is visible, press and hold the power button again. Once the battery icon disappears, release the button. The Samsung screen will then appear, and the tablet will continue to boot.
What to do if Auto Meter Test Equipment Load Module firmware recovery fails?
If updating the Load Module firmware is interrupted and fails, follow the on-screen instructions to recover. If the Control Module returns to the main menu before the update completes, restart the update process via Option Menu -> Update Firmware and then follow the on-screen instructions to recover.
What to do if Auto Meter Test Equipment Load Module LED is off?
Remove the Control Module and press the Load Module button for one second. The LED should turn red for about a second then turn green. If the LED still does not turn on, the Load module battery may need recharging. Plug in the charger and connect it to the Load Module. The LED should stay a steady red while charging. Let the Load module charge for 3 hours. Note that both the Control module and Load module batteries will be charged if the clamps are connected to a fully charged 12V battery.
General| Brand | Auto Meter |
|---|---|
| Model | BCT-460DTNA |
| Category | Test Equipment |
| Language | English |

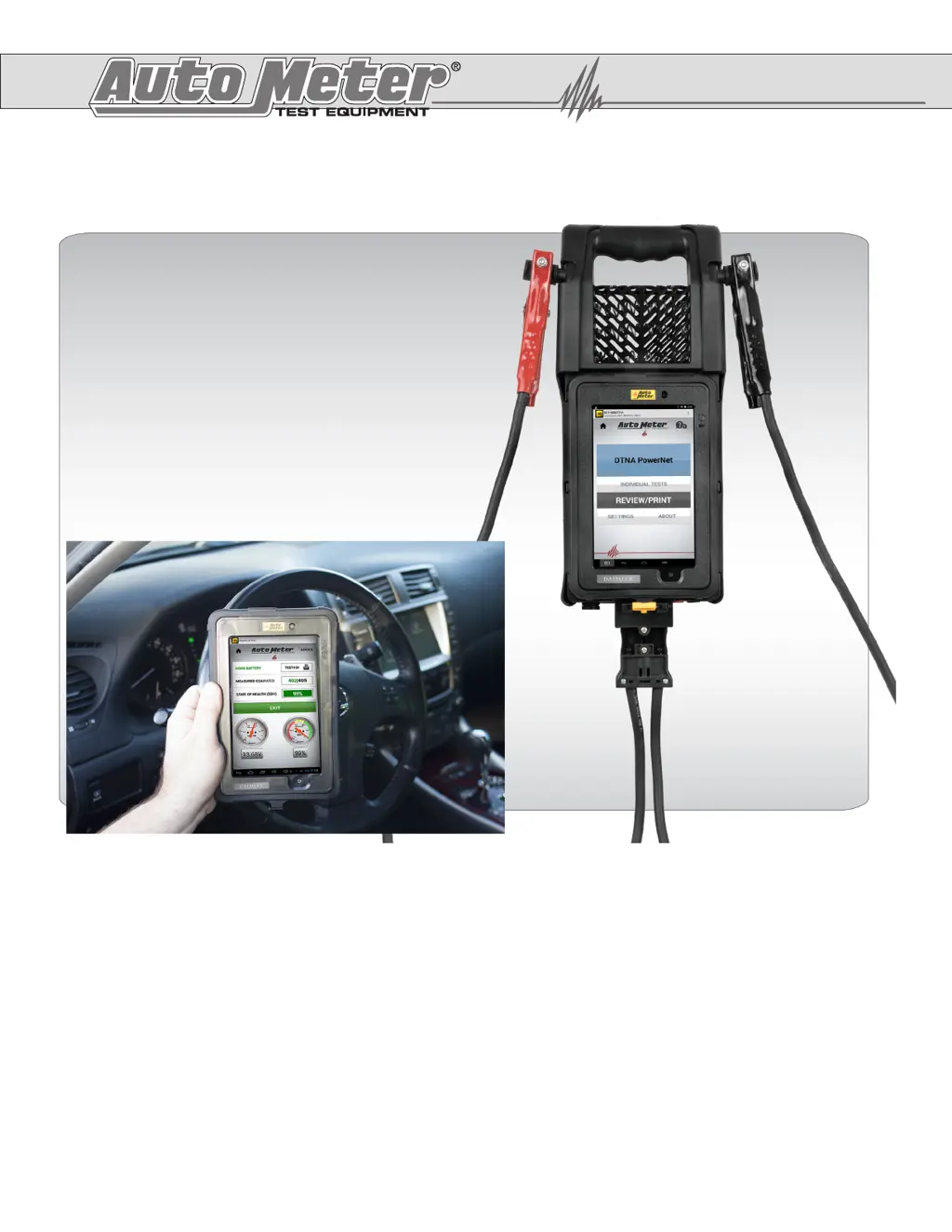

Introduces the BCT-460DTNA as a hand-held load tester and system analyzer.
Covers reading instructions, eye protection, and avoiding sparks around batteries.
Specific warnings against testing hybrid vehicle batteries while in the vehicle.
Explains common reasons for battery failure, such as application, maintenance, and age.
Instructions to inspect belts for cracks, glazing, and fraying.
Guide to checking battery for corrosion, cracks, and electrolyte levels.
Check starter, solenoid, and regulator for loose connections or frayed wires.
Explains Bluetooth connection between control and load modules, including range.
Details Wi-Fi connection for firmware updates and AMPNET server access.
Describes AMPNET software for displaying and tracking test results.
Describes USB ports, temperature sensor, and charging port functions.
Explains the meaning of different LED statuses and load module operational modes.
Guides users through accessing functions from the main menu.
Shows the screen for updating control and load module software firmware.
Displays the state of charge for batteries in both control and load modules.
Presents a list of past tests, allowing users to view detailed test results.
Provides application version and contact information for Auto Meter.
Lists and describes the functions available in the tester's option menu.
Instructions for setting the tester's date, time, and time zone.
Steps for connecting the tester to a local wireless LAN.
Settings for dealer-specific information and email for test results via AMPNET.
Configuration for default settings such as temperature scale and rating units.
Options for language, Wi-Fi setup, and date/time configuration.
Configuration for selecting the printer device for test reports.
Detailed procedure for saving test data onto a USB flash drive.
Instructions on how to correctly connect the black and red clamps to battery terminals.
Explains warnings for reversed connections or poor contact and how to clean.
Allows users to record customer complaints related to battery or starter issues.
Displays safety prompts and fields for VIN, repair order, and comments.
Guides the user on whether the vehicle has an auxiliary battery pack and how to disconnect it.
Shows how to connect the tester leads to the battery pack for testing.
How to choose the battery rating (CCA, MCA, etc.) and type (AGM, Standard).
Instructions for using the IR probe to measure battery temperature.
Details on entering necessary information and initiating the battery pack test.
Displays the results of the final battery pack test.
Guides users to test batteries individually after a pack test.
User checks starter cables and connections for proper condition before testing.
Illustrates how to connect the large and small clamps to starter and battery.
Details on how the tester conducts the starter cable voltage drop test.
Explains how to understand results for high or acceptable voltage drop.
Instructions for making repairs and re-testing when voltage drop is too high.
Steps to start the engine and begin the starter test process.
How the tester monitors voltage and current during engine cranking.
Explains pass/fail results and prompts for repairs or further testing.
User checks alternator belts, cables, and connections before testing.
Illustrates correct connection of leads to alternator and battery.
Steps to enter rated output and conduct the alternator voltage drop test.
How to select alternator type and enter its rated output for testing.
Instructions to turn the ignition key and wait for the ECU to power up.
Guides user to hold engine at 1000 RPM for voltage stabilization.
Instructions to rev the engine to governor speed and measure output current and ripple.
Explains how to read results and identifies failures highlighted in red.
How to choose battery rating, type, and other settings for an individual battery test.
Steps to measure battery temperature using the IR probe.
Troubleshooting steps for connection problems, checking for corrosion.
Explains results like "Good Needs Charge", "Near End of Life", "Good", and "Bad Battery".
How to understand results indicating a failed loaded portion of the test.
Explains results when the battery lacks sufficient charge for an accurate test.
Steps for disassembling a battery pack and testing batteries individually.
Explains the voltage drop test purpose and how to select it from the menu.
Guides on connecting leads and performing the starter cable voltage drop test.
How to select the charging cable voltage drop test from the menu.
Steps to set test current and perform the charging cable voltage drop test.
How to select the generic cable voltage drop test from the menu.
Instructions for connecting leads and performing a generic cable voltage drop test.
Explains how to identify the faulty cable based on Pos/Neg drop results.
Details the criteria for a passing voltage drop test and troubleshooting failed tests.
How to use the voltmeter to measure DC voltage and AC ripple.
How to use the current probe to measure DC and AC currents.
Solutions for the control module failing to power on.
Steps to diagnose and resolve issues with the load module LED.
How to reset Bluetooth for a stable connection between modules.
Explains that poor Bluetooth connection often causes temperature reading issues.
Troubleshooting steps for clamp connection errors, including cleaning.
Explains results like "Charge and Test" and issues with dead batteries.
How to identify and recover a completely discharged tablet battery.
Procedure to recover the load module if firmware update fails.
Details the 12-month warranty for the product and 90 days for cables/clamps.
Information on how to submit warranty claims, shipping, and packaging.
Provides company address, service phone numbers, and website.
