6

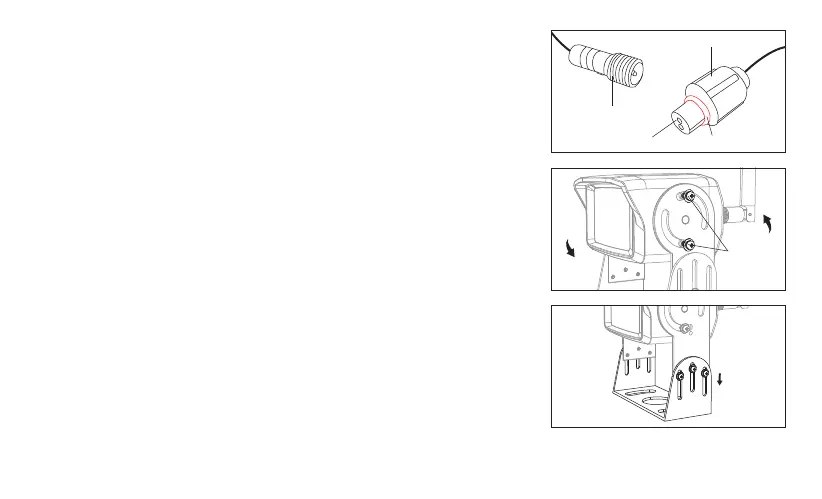

4) Connect the camera cable
Connect the 2 pin male plug of the camera cable to the female plug of the power cable.
Make sure you don’t lose the waterproof rubber ring. Then tighten the nut. Make sure the
cables are not pinched or knotted.
How to find the reverse light (Positive)?
a. Please switch the key to ACC position, then shift your car into R-gear.
b. Prepare a car test light, connect its clip or clamp to a known ground source, then use the
pointed end to pierce the plastic insulation on a wire. If the bulb lights up, it means the wire
may be the potential reversing light's positive power source.
c. Please shift your car into another gear, then use a test light to test all the wires which used
to light up the bulb again, if there is one wire that doesn't light up the bulb, it's the reversing
light's positive power source.
How to adjust the angle of the camera?
First, loosen the screws on both sides of the camera as shown on right. Then rotate the camera
to the desired angle. Finally, tighten the screws.
How to extend the camera bracket?
First, loosen the screws on both sides of the bracket as shown on right. Then stretch the bracket,
and finally tighten the screws.
Note:
● The above wirings also apply to the second camera. The red wire should be connected to a
positive electrode and the black wire should be connected to a ground wire. You can also
connect the camera to other ACC power supplies or external power supplies.
● Due to differences in technical and design-related vehicle models, these instructions for use
do not apply to all vehicle models.
● When washing the car, please avoid using a high-pressure water gun to spray the camera at close range to avoid water ingress.
Nut
Waterproof
rubber ring
Male plug
Loosen the
screws
