LIFT / Alt. 1 - Easy but slow

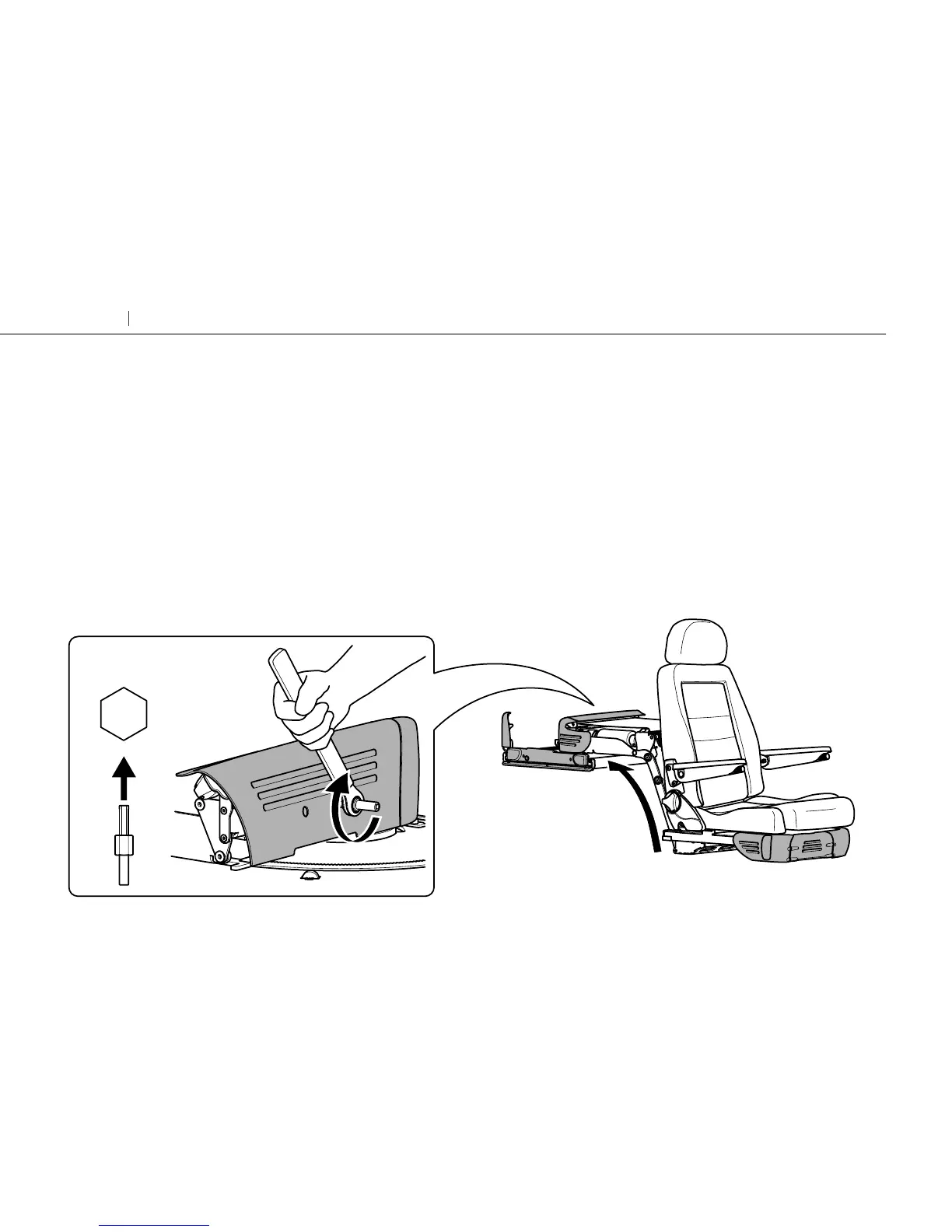

Insert the socket in the hole in the upper rear cover.
Crank the ratchet clockwise to raise the seat.
Swivel the seat in
The seat must be lifted all the way up and swiveld all the way in. Begin by releasing the turning
mechanism if these manoeuvres must be combined and cannot be done separately. Adjust
lengthwise as necessary. For swivel and lengthwise movement, see overleaf.
12
Turny Evo Getting seated
