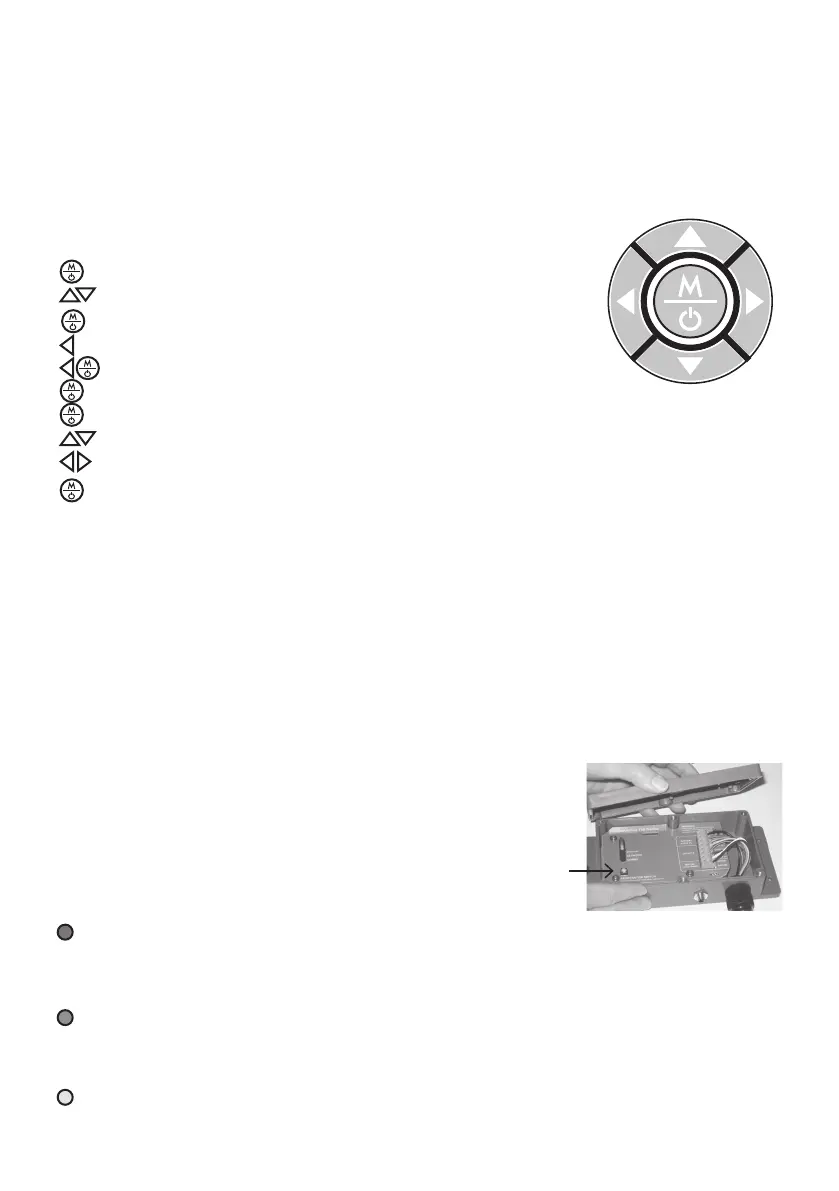

3.1 USING THE AUTOANCHOR BUTTONS
On.
Scroll: Menu/Numbers/Up/Down.
Mode/Select/Enter/Save.
Escape or Back.
Hold together to access the Set up menu.
Hold for 2 seconds to disable the lock.
Hold for 1 second to toggle between modes eg windlass to thruster.
Control the windlass.
Control Options A & B, Thruster and Auxiliary outputs.
Hold for 6 seconds to turn off.
Set up includes registering the wireless interface and calibrating the AA710 system for the
equipment it is to control on the boat. The AA710 must be tested with all the equipment it
is to control to ensure it is working correctly.
3.2.1 SYSTEM OVERVIEW
The AA710 kit is supplied with 1 x AA710 remote console and 1 x AA702 master base
station. Each console and base station has a unique ID and the units must be registered
to each other to operate the system. If extra outputs are required up to 2 additional base
stations, known as slave stations, may be added into the system. Up to 4 consoles can be
registered to operate a system. Follow the instructions to register the consoles and base
stations.
3.2 WIRELESS INTERFACE SET UP
3.2.2 REGISTRATION SWITCH
Located inside the base station. Use to register the
base station to the console and to register a slave
to the master base station. See the instructions over.
3.2.3 LED INDICATORS
System (Red)
Steady red indicates power is on. Flashing continuously indicates registration
state is active. Times out after 5 minutes. Flashing a slow pulse indicates sensor
is connected when the windlass is turning.
PART 3 SET UP
Network (Green)
Steady green indicates the base station is a master station. Off indicates the base
station is a slave (See instructions to connect a slave station below).
Comms (Yellow)
Flashing indicates data is received.
Registration
Switch
