8.1 Use of the machine
• This machine is designed to work at a depth of 3-5 cm. The precise depth can
be regulated via the lever.
• Adjust the depth of the blades, the relevant action lever.
• Regulate the set screw to record the lever position, and hence the working
depth. The purpose of this is to optimise and speed up the cable-laying
operation.
• Regulate the graduated rod to set the distance between cables (see 8.1.1).

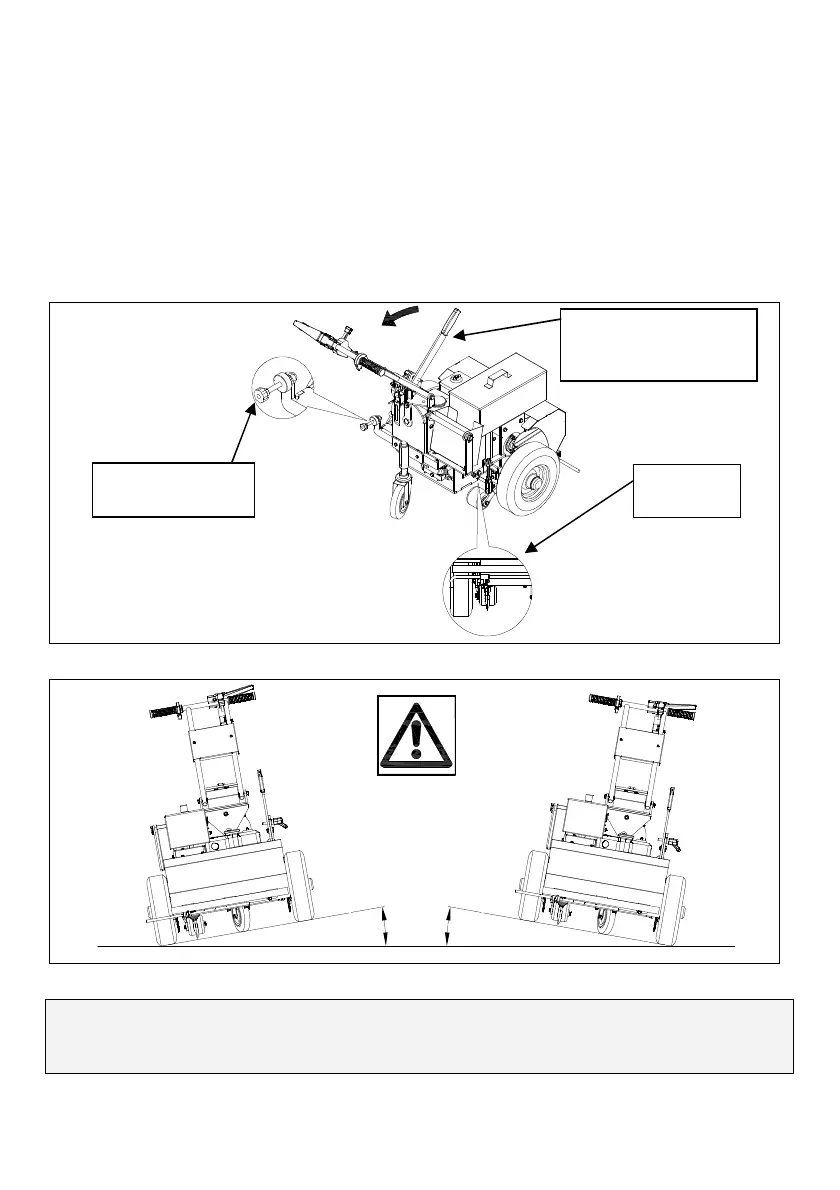

Fig. 9a
MAX 10° MAX 10°
Fig. 9b
IMPORTANT!
Never exceed an angle of inclination of 10°, otherwise the blades or the
transmission unit could get damaged.
Depth adjustment
lever
Set screw
Blades
