9.2 Tensioning the drive chains
• Remove the front guard.
• Tighten the eccentric hex pin to get the optimal chain tension.
• Remount the guard.

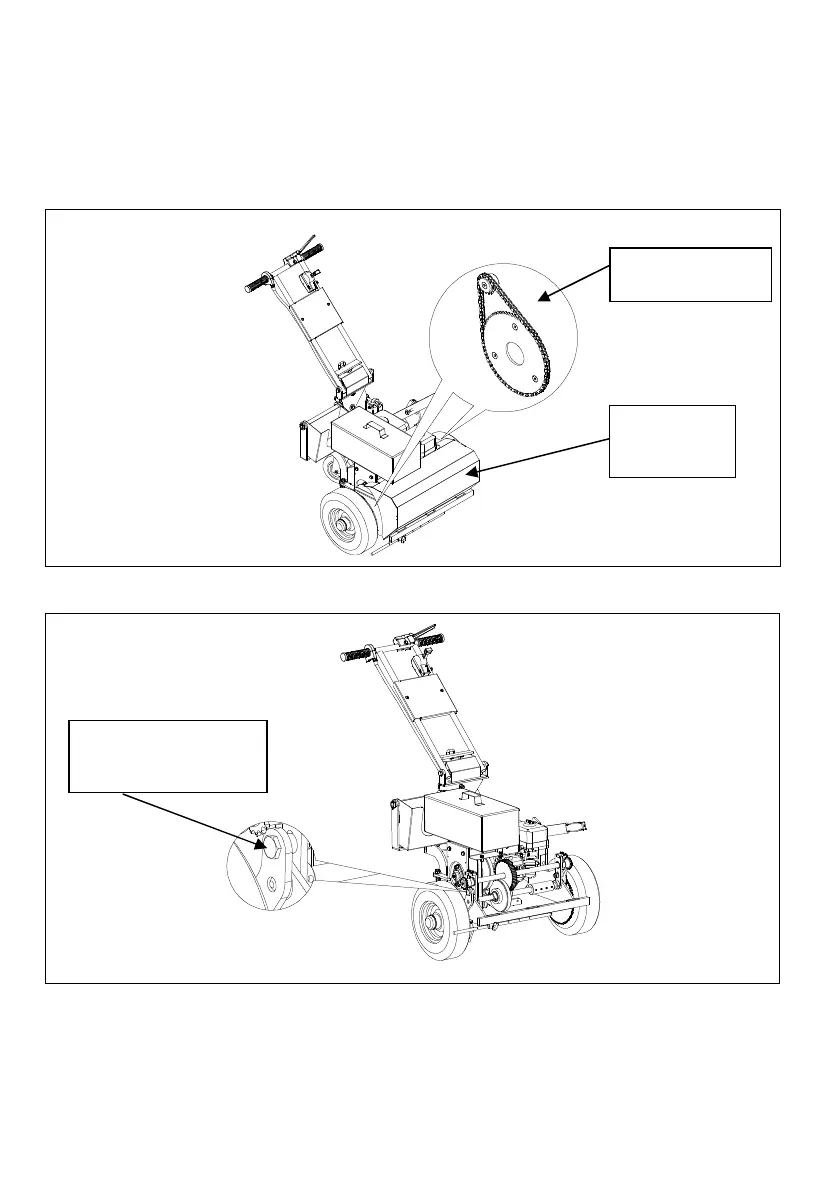

Fig. 14
Fig. 15
Front
casing
Pin with eccentric
hole
Drive chains
