DURApulse GS20 AC Drive Quick-Start Guide – 1st Ed 06/29/2020
DURApulse GS20 AC Drive Quick-Start Guide
GS20_QSP_1ed 06/29/2020

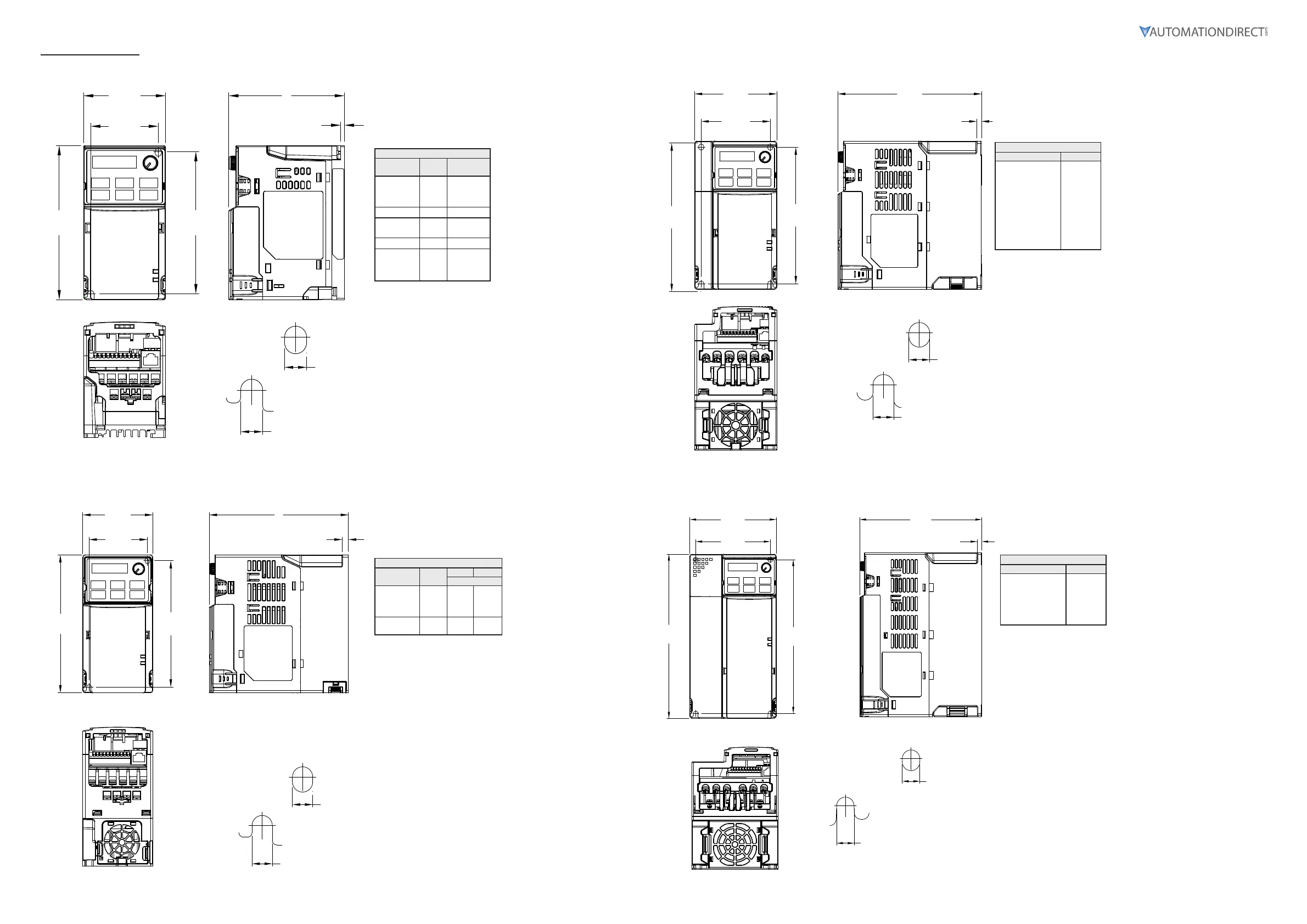

Dimension Diagrams
GS20 Frame A
Units = mm [in]
DIMENSIONAL UNIT:mm[inch]
A2
A1
A4
D
96.0[3.78]
110.0[4.33]
129.0[5.08]
A5
143.0[5.63]
A3
125.0[4.92]
FRAME_A2
FRAME_A1
FRAME_A4
GS23-20P5
GS23-40P5
GS21-10P2
GS21-20P2
GS23-20P2
FRAME_A5
GS23-21P0
GS23-41P0
GS23-51P0
FRAME_A3
GS21-10P5
GS21-20P5
MODELS BY
FRAME SIZE:
D
68.0
[2.68]
56.0
[2.20]
118.0
[4.65]
128.0
[5.04]
3.0
[0.12]
MOUNTING HOLE
DETAIL
5.2
[0.20]
5.2
[0.20]
GS20 Frame B
Units = mm [in]
MOUNTING HOLE
DETAIL
MODELS BY
FRAME SIZE:
DIMENSION UNIT:mm[inch]
B2
B1
D
D1
143.0[5.63]
6.4[0.25]
3.0[0.12]
143.0[5.63]
FRAME_B2
FRAME_B1
.
GS21-21P0
GS23-22P0
GS23-42P0
GS23-52P0
D
D1
72.0
[2.83]
5.2
[0.20]
5.2
[0.20]
60.0
[2.36]
130.0
[5.12]
142.0
[5.59]
GS20 Frame C
Units = mm [in]
MOUNTING HOLE
DETAIL
MODELS BY
FRAME SIZE:
FRAME_C1
GS21-11P0
GS21-22P0
GS21-23P0
GS23-23P0
GS23-25P0
GS23-43P0
GS23-45P0
GS23-53P0
GS23-55P0
87.0
[3.43]
5.5
[0.22]
5.5
[0.22]
73.0
[2.87]
144.5
[5.69]
157.0
[6.18]
5.0
[0.20]
152.0
[5.98]
GS20 Frame D
Units = mm [in]
MOUNTING HOLE
DETAIL
MODELS BY
FRAME SIZE:
FRAME_D1
.
GS23-27P5
GS23-47P5
GS23-4010
GS23-57P5
GS23-5010
94.0
[3.70]
5.5
[0.22]
5.5
[0.22]
109.0
[4.29]
193.8
[7.63]
207.0
[8.15]
6.0
[0.24]
154.0
[6.06]
Models by Frame Size
Model Frame
D
mm [in]
GS21-10P2
GS21-20P2
GS23-20P2
A1 96.0 [3.78]
GS23-20P5 A2 110.0 [4.33]
GS21-10P5
GS21-20P5
A3 125.0 [4.92]
GS23-40P5 A4 129.0 [5.08]
GS23-21P0
GS23-41P0
GS23-51P0
A5 143.0 [5.63]
Models by Frame Size
Model Frame
D D1
mm [in]
GS23-22P0
GS23-42P0
GS23-52P0
B1
143.0
[5.63]
6.4
[0.25]
GS21-21P0 B2
143.0
[5.63]
3.0
[0.12]
Models by Frame Size
Model Frame
GS21-11P0
GS21-22P0
GS21-23P0
GS23-23P0
GS23-25P0
GS23-43P0
GS23-45P0
GS23-53P0
GS23-55P0
C1
Models by Frame Size
Model Frame
GS23-27P5
GS23-47P5
GS23-4010
GS23-57P5
GS23-5010
D1
