DURApulse GS20 AC Drive Quick-Start Guide – 1st Ed 06/29/2020
DURApulse GS20 AC Drive Quick-Start Guide
GS20_QSP_1ed 06/29/2020

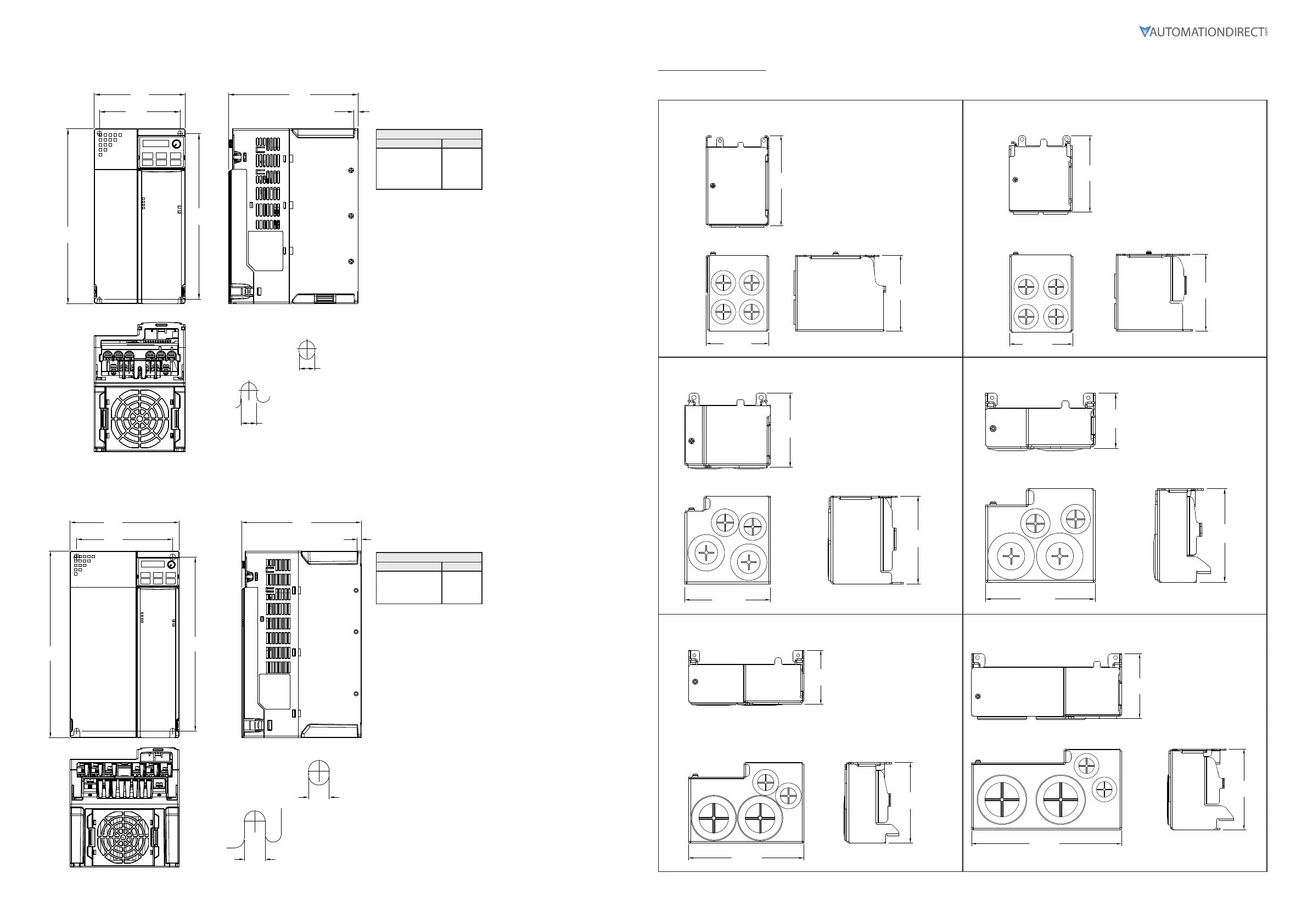

GS20 Frame E
Units = mm [in]
MOUNTING HOLE
DETAIL
MODELS BY
FRAME SIZE:
FRAME_E1
GS23-2010
GS23-2015
GS23-4015
GS23-4020
130.0
[5.12]
5.5
[0.22]
5.5
[0.22]
115.0
[4.53]
236.8
[9.32]
250.0
[9.84]
6.0
[0.24]
185.0
[7.28]
GS20 Frame F
Units = mm [in]
MOUNTING HOLE
DETAIL
MODELS BY
FRAME SIZE:
FRAME_F1
GS23-2020
GS23-4025
GS23-4030
154.0
[6.06]
8.4
[0.33]
8.4
[0.33]
175.0
[6.89]
279.5
[11.00]
300.0
[11.81]
6.5
[0.26]
192.0
[7.56]
NEMA 1 Conduit Boxes
The GS20 drives can optionally be fitted to a NEMA1 conduit box, with one available box per frame size. The dimensional diagrams below show how the box will
change the dimensions of the GS20 unit.
GS20 Frame A Conduit Box
71.5
[2.81]
86.6
[3.41]
102.1
[4.02]
GS20 Frame B Conduit Box
72.0
[2.83]
87.7
[3.45]
87.0
[3.43]
GS20 Frame C Conduit Box
87.0
[3.43]
89.2
[3.51]
75.2
[2.96]
GS20 Frame D Conduit Box
103.7
[4.08]
88.5
[3.48]
52.3
[2.06]
GS20 Frame E Conduit Box
124.5
[4.90]
87.1
[3.43]
58.4
[2.30]
GS20 Frame F Conduit Box
168.5
[6.63]
90.8
[3.57]
72.6
[2.86]
Models by Frame Size
Model Frame
GS23-2010
GS23-2015
GS23-4015
GS23-4020
E1
Models by Frame Size
Model Frame
GS23-2020
GS23-4025
GS23-4030
F1
Units = mm [in]
