Automess 6150AD1 - 6150 Ad2, 6150 Ad4, 6150 Ad6

9
.
3
6150AD2, 6150AD4, 6150AD6

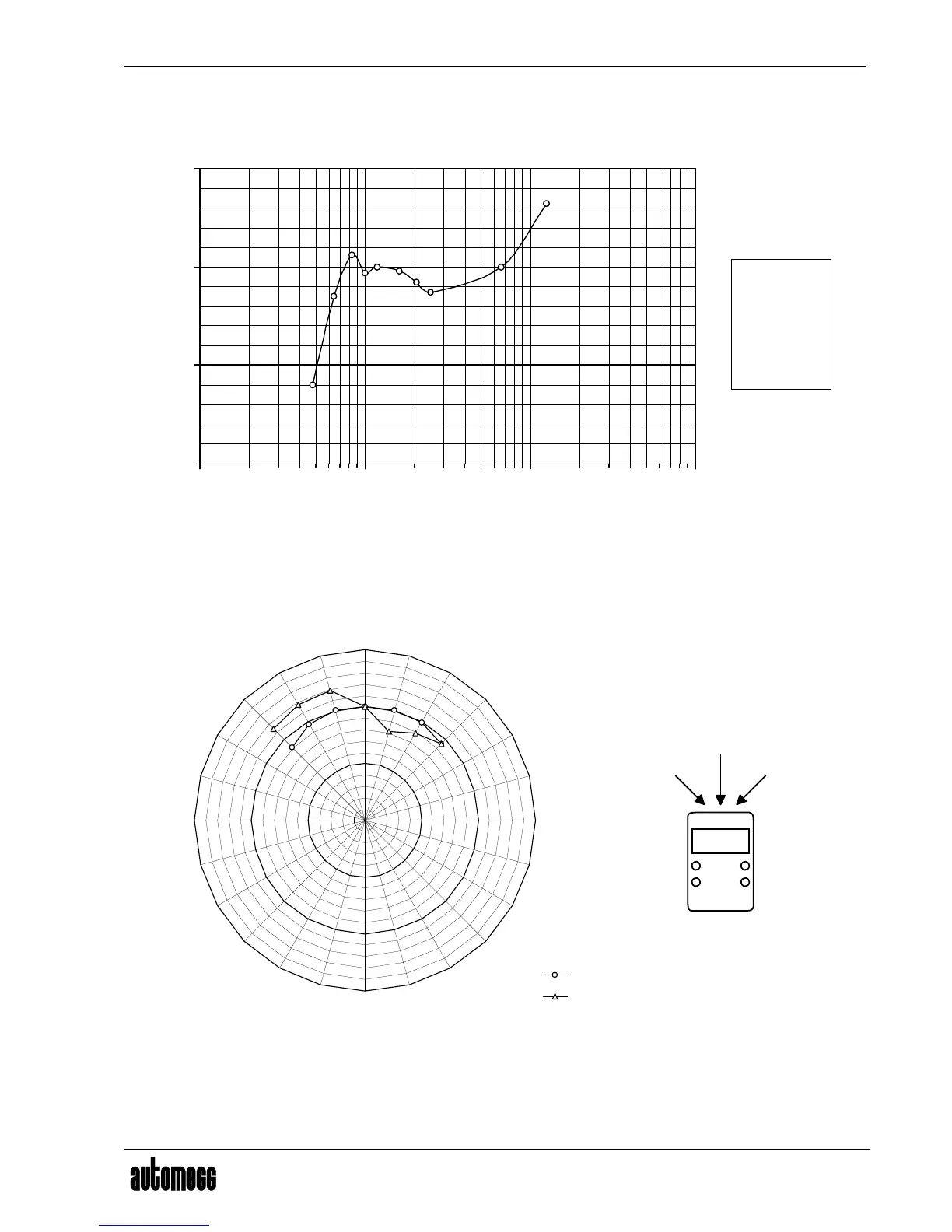

Energy dependence referred to photon dose equivalent H
X
:
Directional dependence (horizontal rotation) normalized to the same energy in preferential direction. The
error shall not exceed ±20% down to energies 20 keV above the beginning of the nominal energy range:
Vertical rotation (rotation around the tube’s axis) within an angular range of ±45° will change response
only by a few percent making a graphical representation unnecessary.
0
0,5
1
1,5
10
100
1000
10000
Energy [keV]
Response normalized to Cs-137 .
0
0,5
1
1,5
0°
+15°
+30°
+45°
+60°
+75°
+90°
+105°
+120°
+135°
+150°
+165°
180°
-165°
-150°
-135°
-120°
-105°
-90°
-75°
-60°
-45°
-30°
-15°
Cs-137 (662 keV)
N-100 (mean energy = 83 keV)
03/2004
Operating Manual 6150AD
Page
33
