Autool CT160 User Manual

2 Structure and composition

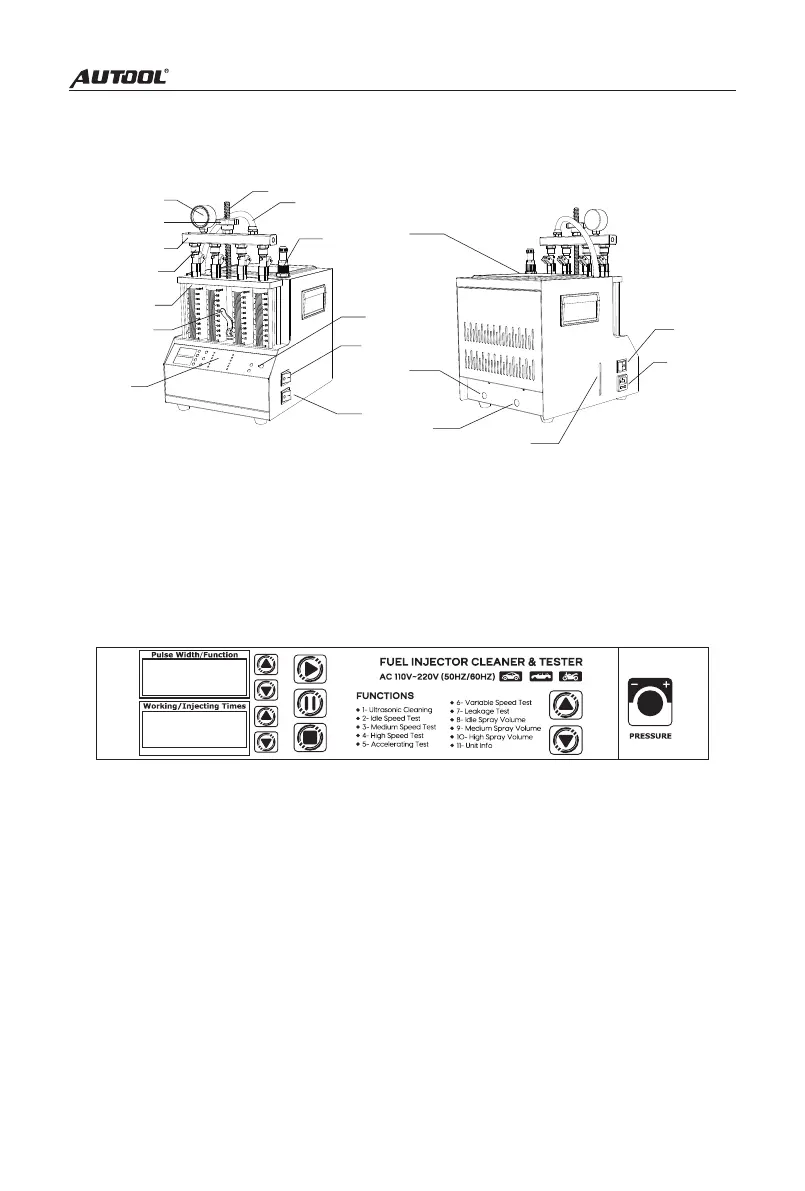

2.1 Structure
1-Pressure gauge;2-Lock nut;3-Oil rail;4-Top oil inlet connector;5-Glass
measuring cylinder;6-Oil drain handle;7-Operation panel;8-Lock pole;9-Oil outlet
pipe;10-Signal wire;11-Pressure regulating knob;12-Heating switch;13-Ultrasonic
switch;14-Ultrasonic cleaning tank;15-Cleaning agent drain valve;16-Testing agent
drain valve;17-Testing agent liquid level;18-Power switch;19-Power socket
2.2 Operation panel diagram
Pulse width/function window: display the selected function item when
the function is selected, and display the pulse width of the injector when
working.
Time window: display the working time of the fuel injector and the number
of fuel injection.
Pulse width adjustment button: Adjust the pulse width of the injector
when working
● Press up to increase the working pulse width of the injector when
cleaning the injector.
● Press down to clean the injector to reduce the working pulse width of
the injector.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
⑯
⑰
⑱
⑲
4
