Autool CT160 User Manual

①
②
③
④
⑤
⑥
⑦
⑧

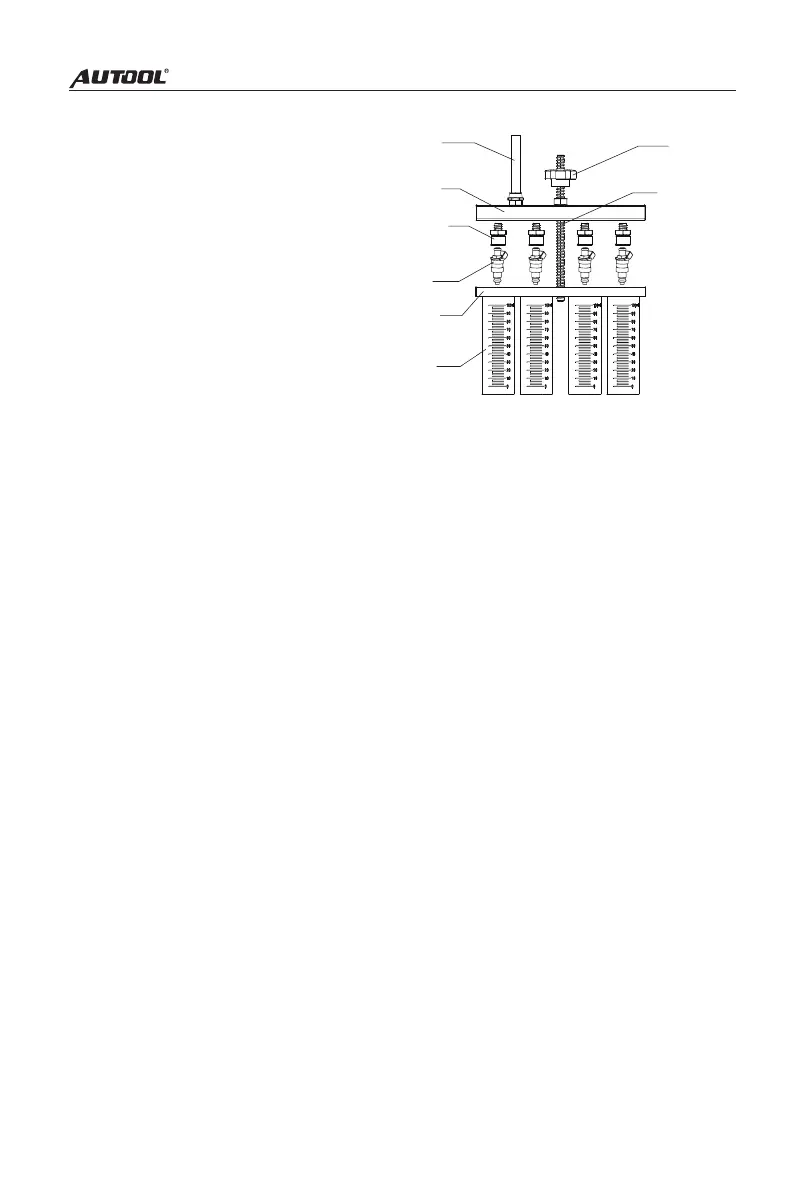

Top-in fuel injector installation diagram
● Select the top oil inlet connector from the accessories and install it into the oil
separator.
● Install the fuel injector in the forward direction (apply a little grease on the "O"
ring of the fuel injector)
● Put the horizontal end of the oil separator and the fuel injector on the upper
plate seat, and tighten the two ends with the locking rod. Ready to test.
3.2.2 Methods and steps
02 Idle speed test
1) Confirm that the injector to be tested has been installed properly and the signal
wire has been plugged in.
2) Select "02 Idle Speed Test".
3) Press the working time up and down keys to set the time. (Generally set to 2
minutes)
4) Press the start button to start work.
5) Turn the pressure adjustment knob to adjust the pressure to 0.25~ 0.3 MPa. (In
the electronic injection system, the general oil pressure works at 0.25-0.3MPa)
6) Press the up and down keys to select the appropriate pulse width. (The system
default is 3ms).
7) The working time gradually decreases. When it is 0, the system automatically
stops.
03 Medium speed test
1) Select "03 Medium Speed Test".
2) Press the start button.
1-Oil outlet pipe;
2-Oil rail;
3-Top oil inlet connector;
4-Injectors;
5-Upper plate seat;
6-Glass measuring cylinder;
7-Lock nut;
8-Lock pole
7
